Compare Streamers

Which Up2Stream Streamer is Right For You?

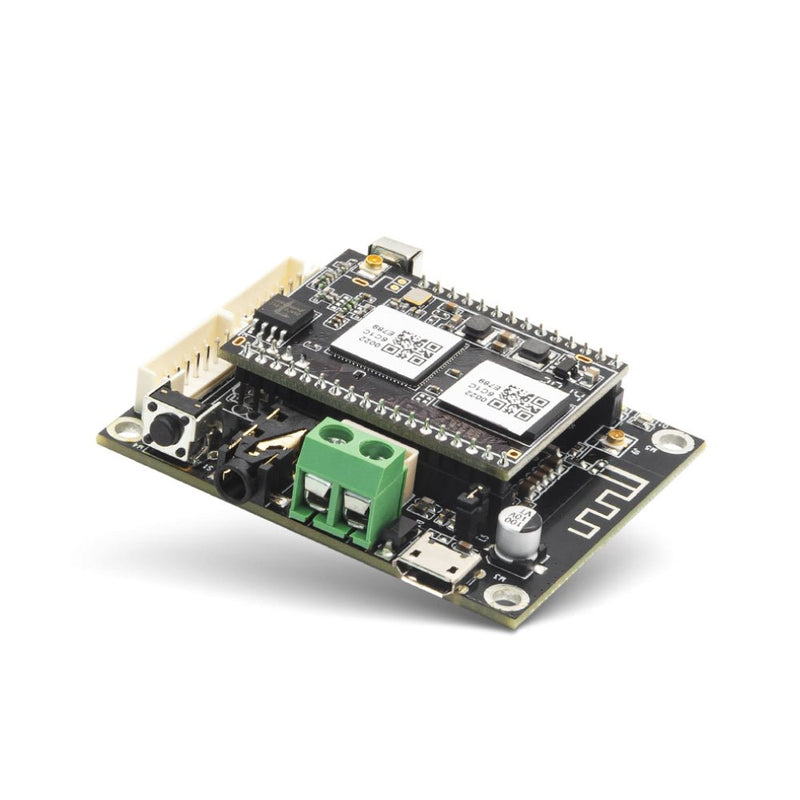

Up2Stream Mini

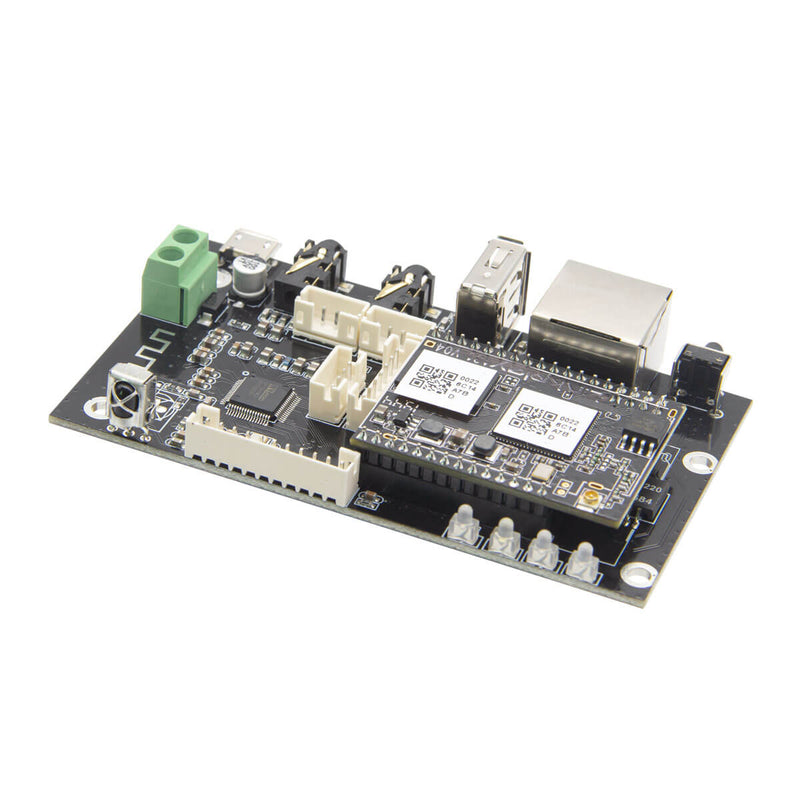

Up2Stream Pro

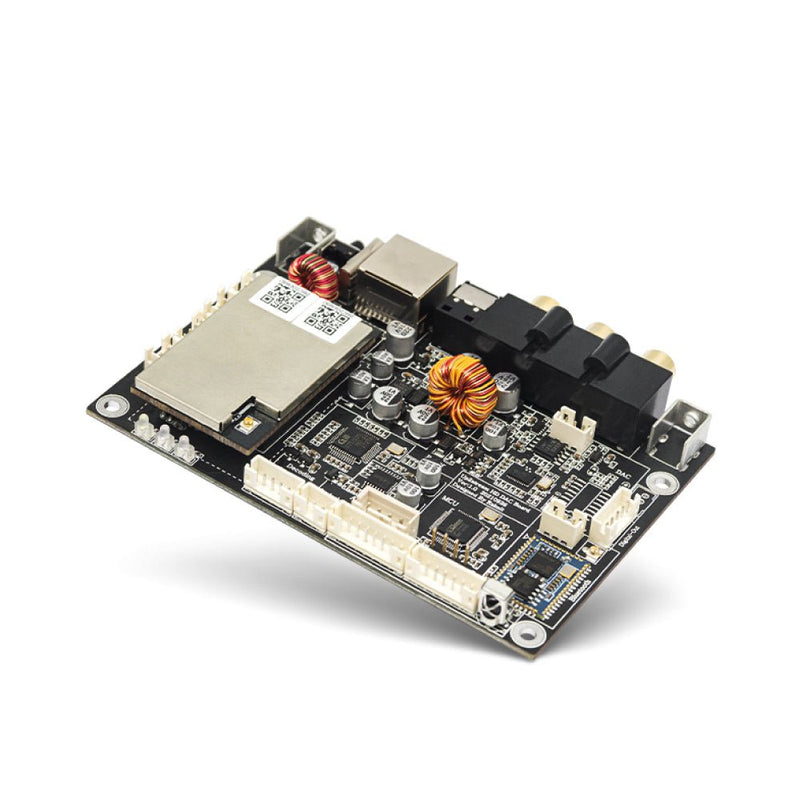

Up2Stream HD DAC

Product	Up2Stream Mini	Up2Stream Pro	Up2Stream HD DAC
Wireless Capability	AirPlay Spotify Connect WiFi Bluetooth DLNA UPnP	AirPlay Spotify Connect WiFi Bluetooth DLNA UPnP	AirPlay 2 Spotify Connect Tidal Connect WiFi Bluetooth DLNA UPnP
LAN Port	No	Yes	Yes
Bluetooth Codec	SBC, AAC	SBC, AAC	SBC, AAC, aptX HD
Multiroom	Yes (WiFi)	Yes (WiFi)	Yes (WiFi/AirPlay2)
Music Service	Spotify, Apple Music, Amazon Music, Tidal, Qobuz, TuneIn, BBC Radio,Internet Radio, Napster, iHeart Radio, Radio Paradise.	Spotify, Apple Music, Amazon Music, Tidal, Qobuz, TuneIn, Internet Radio, BBC Radio,Napster, iHeart Radio, Radio Paradise.	Spotify, Apple Music, Amazon Music, Tidal, Qobuz , TuneIn, Internet Radio, BBC Radio,Napster, iHeart Radio, Calm Radio, SoundCloud, SoundMachine, iHeartRadio, QQ FM.
Power Input	5V-1A PH2.0-2Pin Connector 5V-1A Micro USB Input	5V-1A PH2.0-2Pin Connector 5V-1A Micro USB Input	5V-2A PH2.0-2Pin Connector 5V-2A Type-C Input
Analog Audio Input	/	3.5mm Line Input (1 Vrms) 4Pin connector Line Input (1 Vrms)	3Pin connector Line Input (1.3 Vrms)
Analog Audio Output	3.5mm Line Output PH2.0-4Pin Line Output (1 Vrms)	3.5mm Line Output PH2.0-4Pin Line Output (1 Vrms)	Line Output (1.3 Vrms) PH2.0-3Pin connector Line Output (1.3 Vrms) DAC: 9038Q2M
Digital Audio Input	Micro USB Input SPDIF Input*	Micro USB Input SPDIF Input*	PH2.0-5Pin Connector Digital Input
Digital Audio Output	I2S out SPDIF Out (44.1KHz/16bit)	I2S Out SPDIF Out (44.1KHz/16bit)	I2S Out SPDIF Out (Optical, Coaxial 1:1 Up to 192kHz/24bit)
Audio Format	Decoding up to 192kHz/24bit Output up to 44.1kHz/16bit CD quality	Decoding up to 192kHz/24bit Output up to 44.1kHz/16bit CD quality	Decoding up to 192kHz/24bit Output 1:1 up to 192kHz/24bit
USB Playback	/	Yes	/
ACPWorkbench Tuning Tool	Supported	Supported	Not supported
Expansion Board Support	DAC Board Button Board SPDIF Output Board SPDIF Input Board* IR Extension Board* Volume Knob Board	DAC Board Button Board SPDIF Output Board SPDIF Input Board* IR Extension Board* Volume Knob Board	Button Board* IR Extension Board* OLED Display Board
Remote	Optional	Optional	Optional
Control	APP，remote，web	APP，remote，web	APP，remote

Up2Stream Mini / Up2Stream Pro:
*SPDlF Input Board need to use ACP Workbench Tuning Tool to change settings from SPDIF output to input.
*IR Extension Board need to use with Button Board.

Up2Stream HD DAC:
*Button Board need to wire the correspond pins by yourself(ADC-KEY/GND)
*IR Extension Board need to wire the correspond pins by yourself(3.3V,GND,IR)
