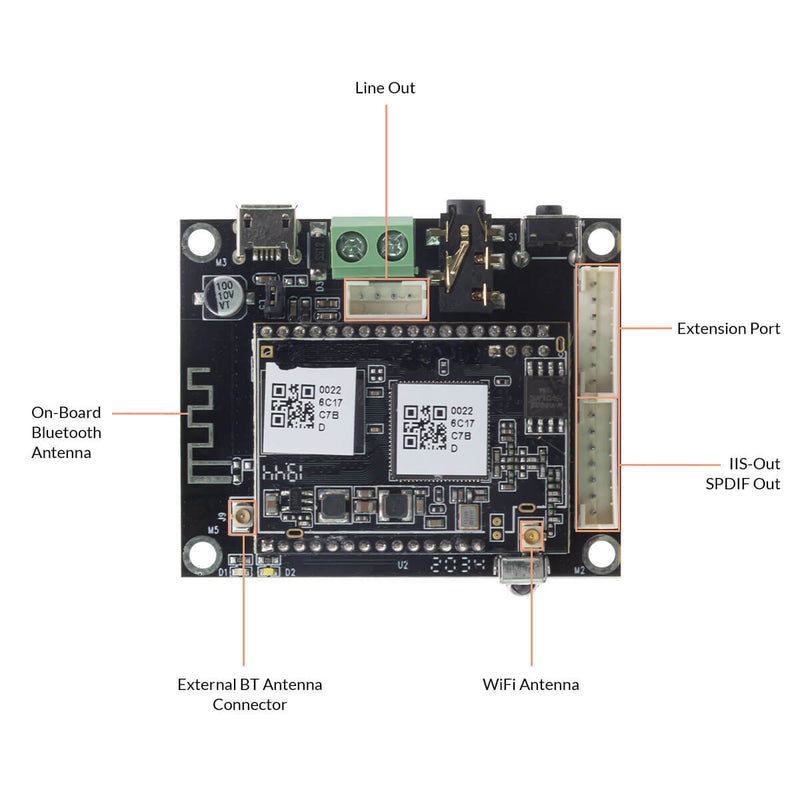

  • Expansion_ports_of_receiver
  • LED of mini
  • Mini Back
  • interface of wifiaudio receiver
  • remote control of mini
  • mini package
1 7

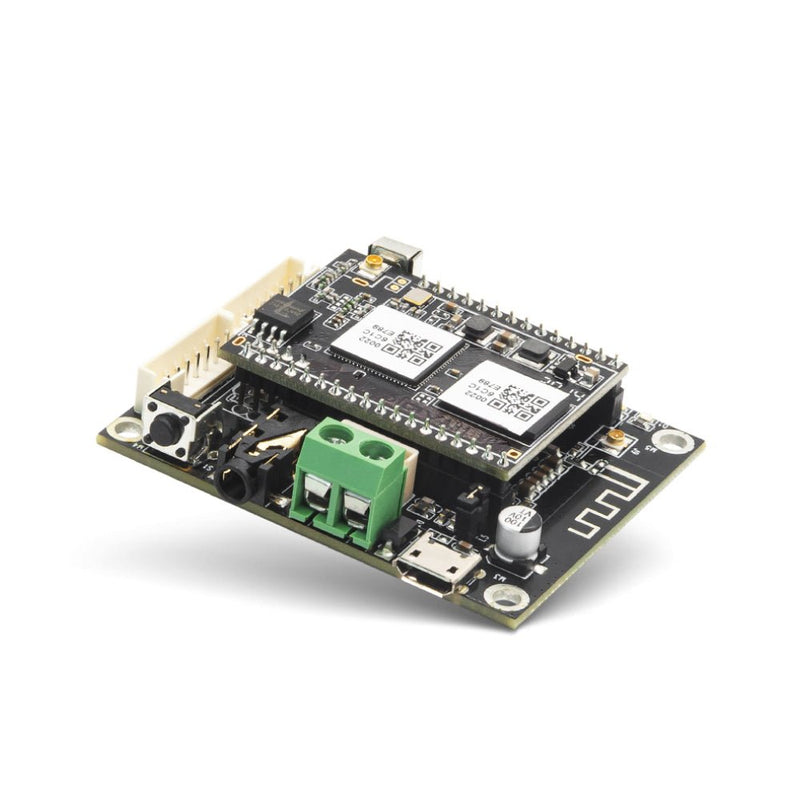

Up2stream Mini- Multiroom Wi-Fi Streamer Board

Up2stream Mini- Multiroom Wi-Fi Streamer Board

$39.00 USD
$39.00 USD
Sale Sold out
Shipping calculated at checkout.

Free & Fast Delivery

  • Free Shipping Over $90
  • Free Shipping in United States and Europe Union regions.
  • $8.8 Shipping fee for other regions
  • 3-7 business days to be delivered

For more, please refer to our shipping policy for more details.

30 Days of Free Return

30 Days of Worry Free Guarantee

  • No Questions Asked: Return undamaged items within 30 days for any reason
  • Full Refund Promise: 100% money back to original payment method
  • Fast Processing: Refunds start when we receive your return

For more, please refer to our return policy for more details.

Hassle-Free Warranty

  • What We Replace: Manufacturing defects within 1 year of delivery
  • Fast Process: Replacement always, quick to get new one to use.
  • Global Support: Valid for purchases from official channels

For more, please refer to our warranty policy

🎉Up2Stream is the new home for Arylic’s DIY products — click to explore.

In stock

Buy 3 Units, Get 5% Off

Buy 4 Units, Get 8% Off

Buy 5 Units, Get 10% Off

Final price calculated at the checkout🛒

✉️Any questions? Feel free to contact us

💰Share & Earn: up to 30% cashback. Learn More.

  • Fast&Free Delivery
  • 30 Days Returns
  • 1 Year Warranty
View full details

A Range Of Options To Suit Your Design

  • Wireless Capability

    • AirPlay
    • Spotify Connect
    • WiFi
    • Bluetooth
    • DLNA
    • UPnP

  • Multi-room

    • Sync audio in all rooms
    • Play different songs at the same time
    • Support available audio input souce for multiroom streaming.

  • Music Service

    Spotify, Apple Music Amazon Music, Tidal, Qobuz, TuneIn, Internet Radio, Napster, iHeart Radio, Radio Paradise.

  • Lossless Audio

    • Decoding up to 192khz/24bits, and output with CD quality.
    • Support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.

  • Local Music Source

    • Support phone storage, and NAS.

  • 4STREAM APP

    • Free iOS & Android APP
    • Manage all Arylic streaming devices in one APP
    • Full multiroom control

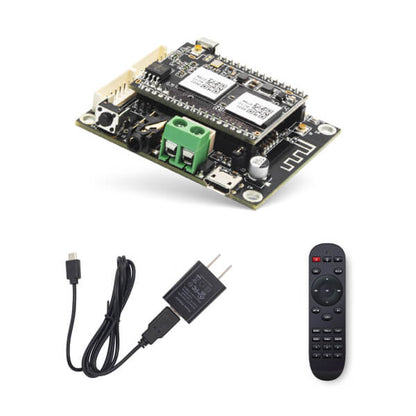

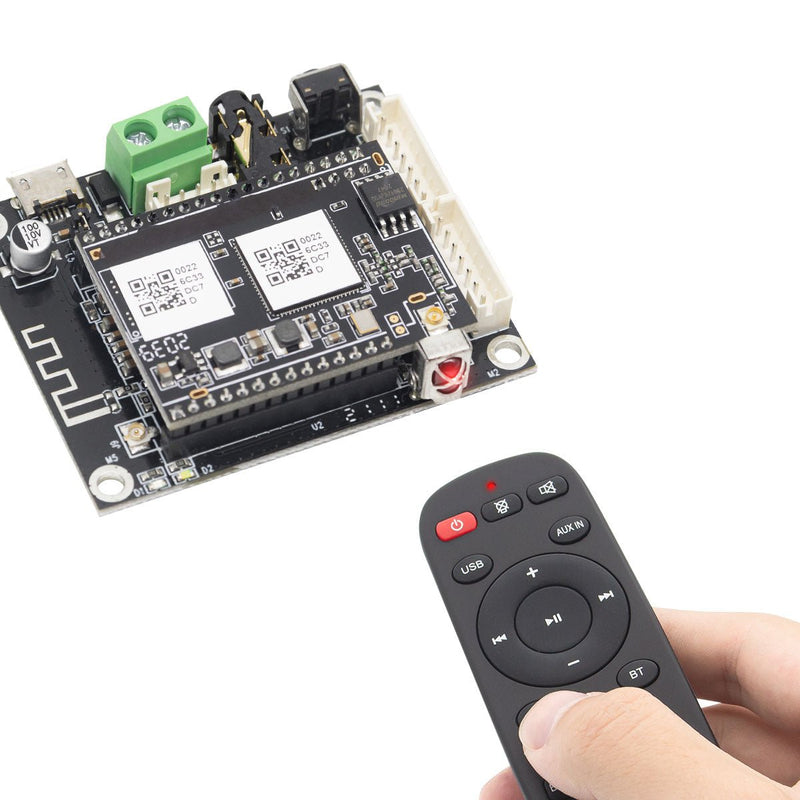

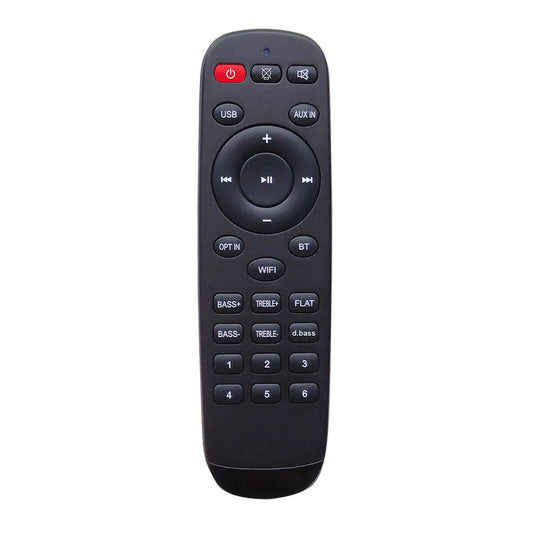

  • Optional Remote Control

    • Easy to control your music playback from a distance.

  • Rename Your Device

    With the 4STREAM APP, you can rename your Up2Stream streamimg device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, untill you change it again.

Specification

Connectivity

WiFi
IEEE802.11 b/g/n 2.4G

Bluetooth
5.0 SBC/AAC, 15M, BT Receiver

Protocols
AirPlay, DLNA, UPnP, Spotify Connect, Qplay

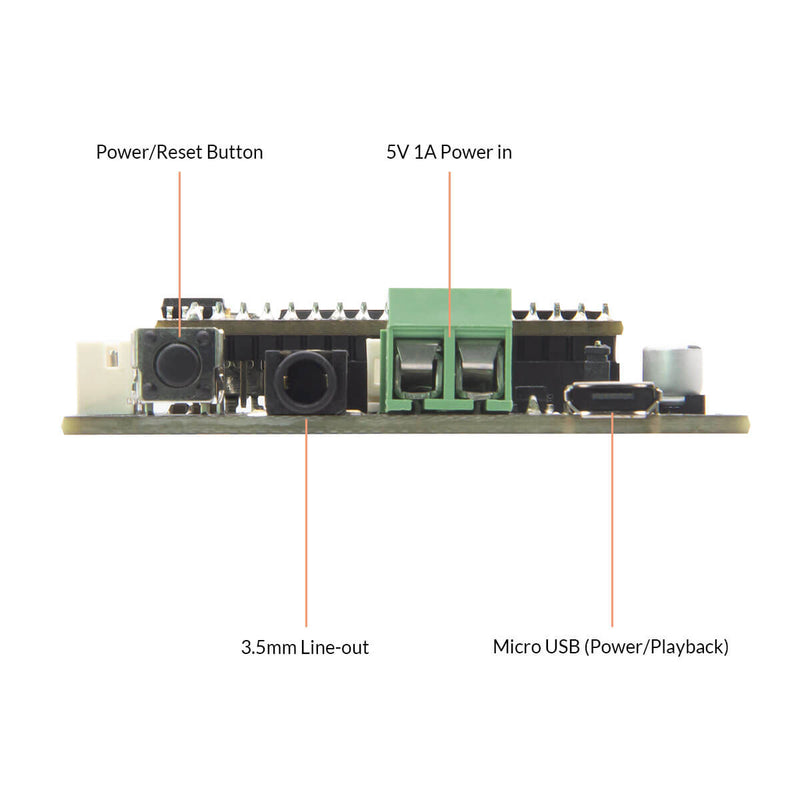

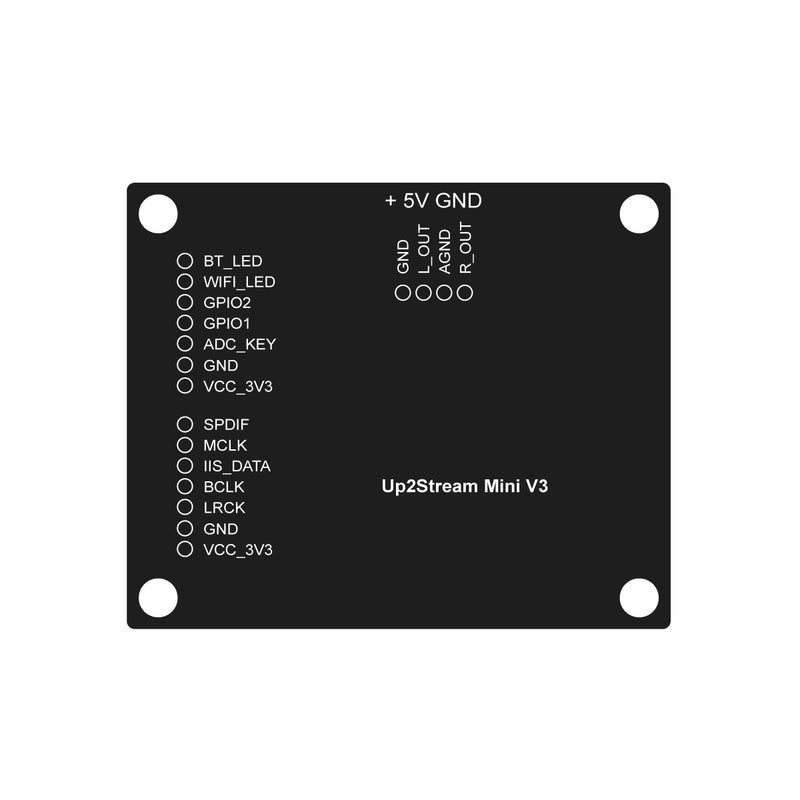

Interface

Power Input
5V-1A 2 pin connector
5V-1A micro USB input

Audio Input
Micro USB input

Analog Output:
3.5mm Line out (1 Vrms)
4 pin connector Line out (1 Vrms)

Digital Output:
I2S out,
*②SPDIF out (44.1KHz)

Sound

Audio Format
Decoding up to 192khz/24bits
Output up to 44.1khz/16bits CD quality

Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

NAS
Support NAS with DLNA support

SNR/THD+N
91dB/0.03%, @1kHz 50W+50W 24V-4Ω

Frequency response
20Hz to 20kHz

General and Accessory

Dimensions
55*45*12mm

Weight
150g

Working temperature
0~40℃

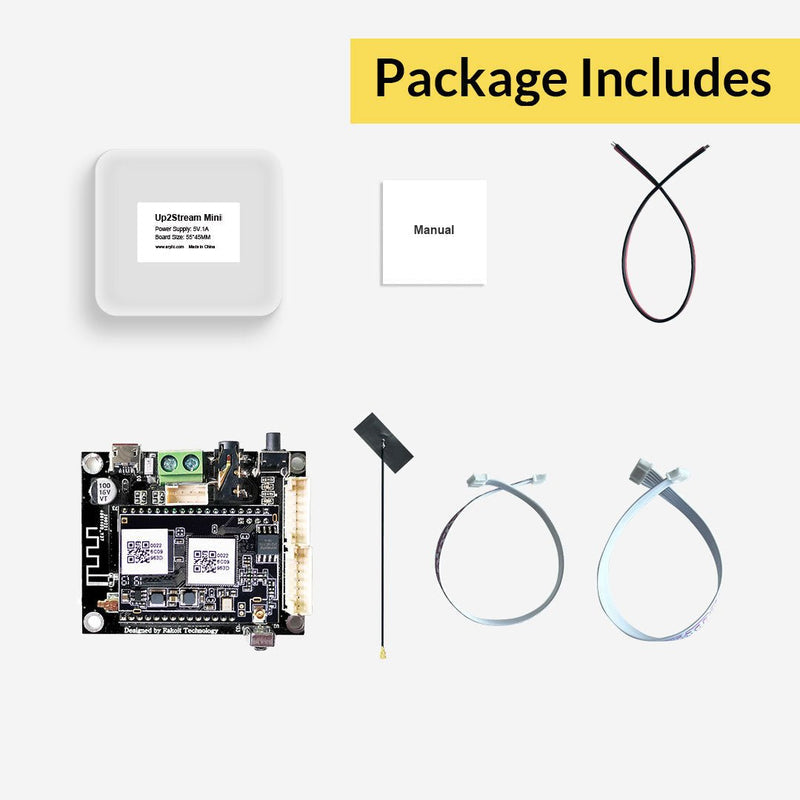

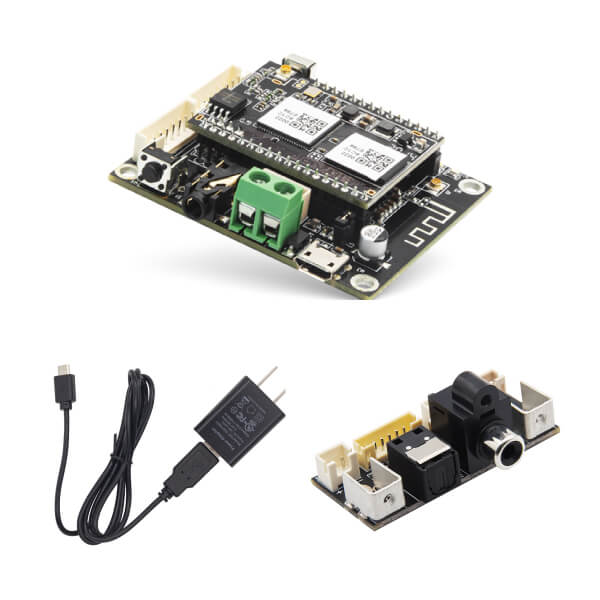

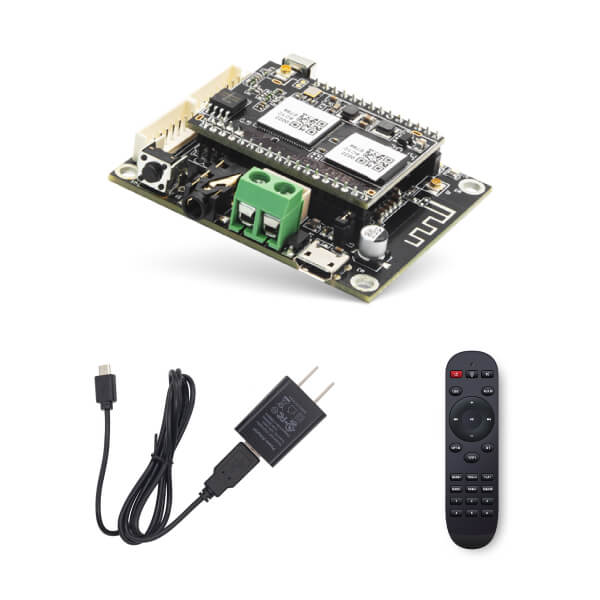

Acessory
220mm Internal WiFi Antenna
4Pin 220mm PH2.0 Cable
7Pin 220mm PH2.0 Cable
2Pin 220mm Power Cable
User Manual

Reset Button and LED Indicators

Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)；
Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings.

Device off:
Short press: Switch on

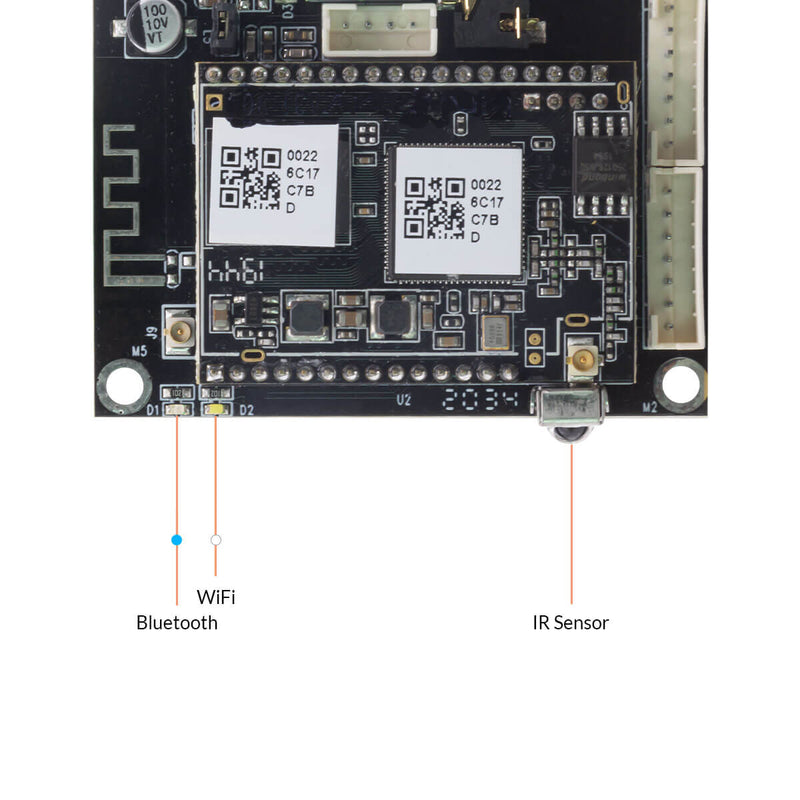

LED Indicators
⚪White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
🔵Blue-Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected
🔵Blue-connect to PC

Control In Your Favorite Way

  • AirPlay

    Play and control from your iPhone, iPad or Mac directly. Support streaming directly from iTunes.

  • Bluetooth

    Flexiable to play from any audio sources from Bluetooth, like YouTube, Netflex, Tiktok or more.

  • 4STREAM & GO CONTROL APP

    Fully control with music service, multiroom, source switch, volume control. Change WiFi, Bluetooth name.

  • Web Control

    listen to the radio and your favorite playlists easily via web browsers.

  • DLNA/UPnP

    Support 3rd party app for playing by DLNA or UPnP protocols. Like Musicbee and Foobar2000.
PC connect

PC Sound Card

Once you connect the Up2Stream Mini to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2Stream Mini. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.

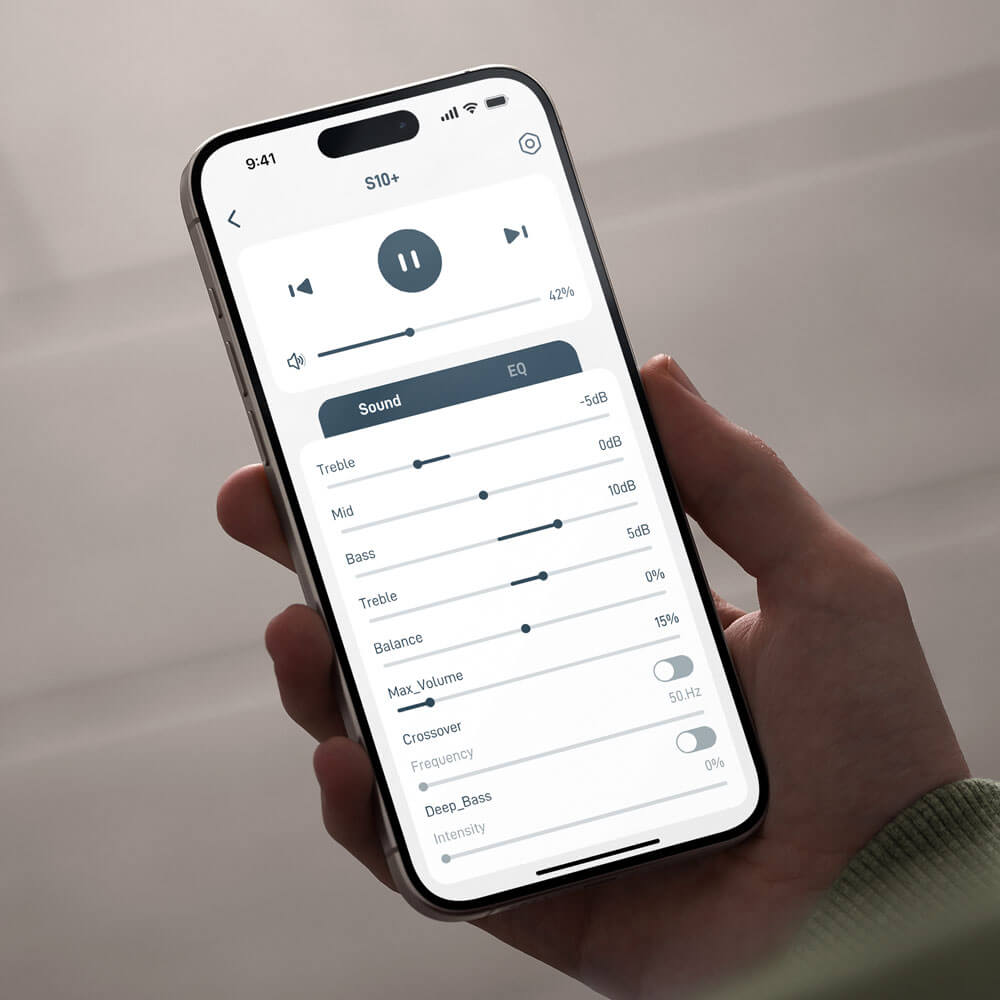

EQ Adjustment

10 band EQ

Use GO CONTROL APP for 10 band advanced EQ control, and custom as you like. Apply on all your audio sources.

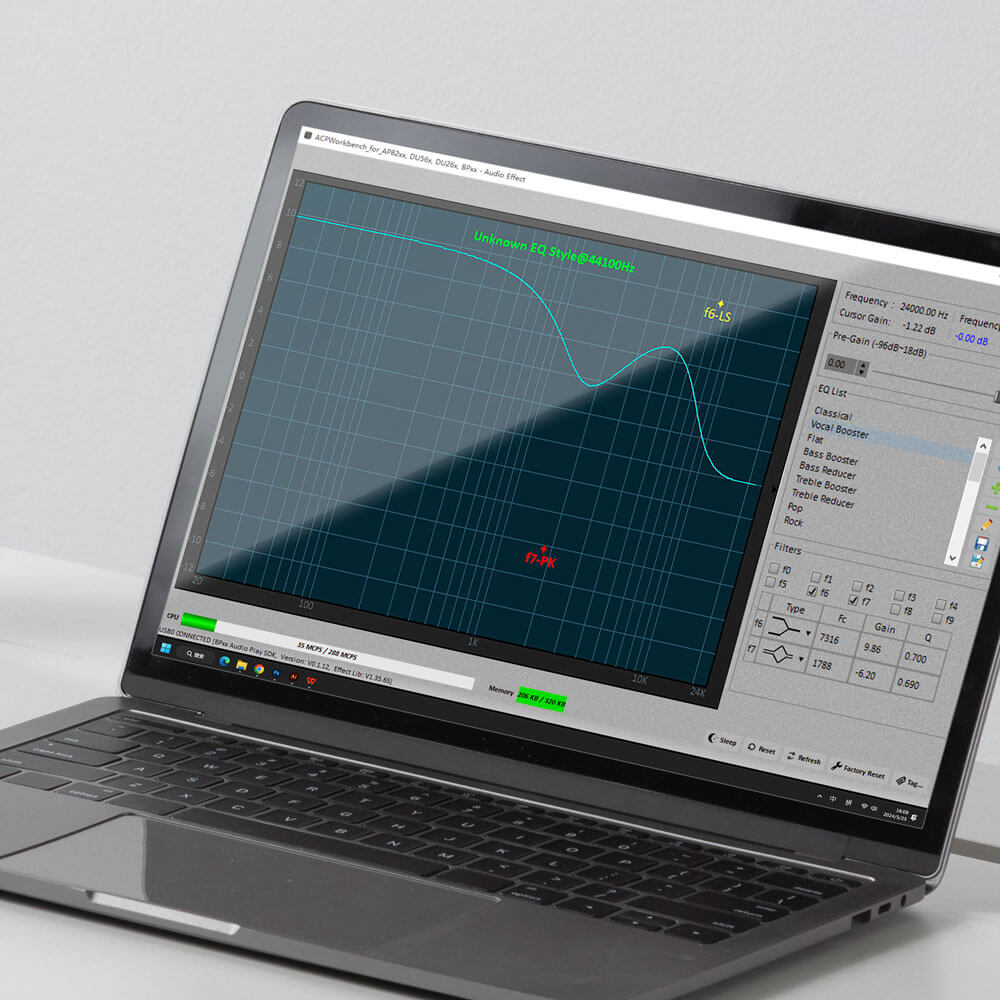

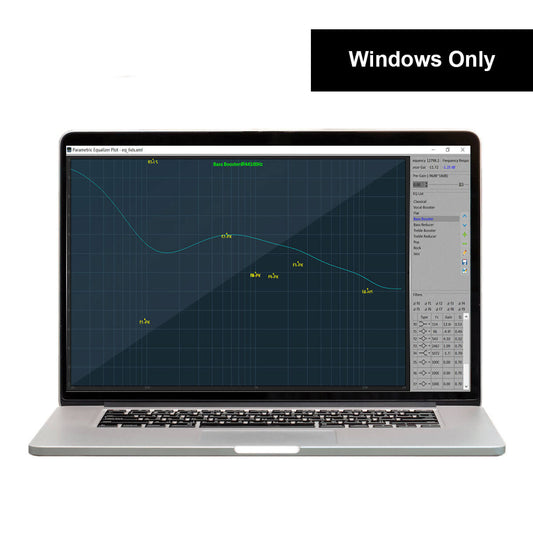

ACP Workbench Turning Tool

Tune Like An Expert

ACPWorkbench Tuning Tool is an advanced tuning tool that you can adjust specific EQ for each channel and switch pins configuration.

Plug and Play

  • With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started.
  • This makes it incredibly easy and user-friendly for anyone to use.

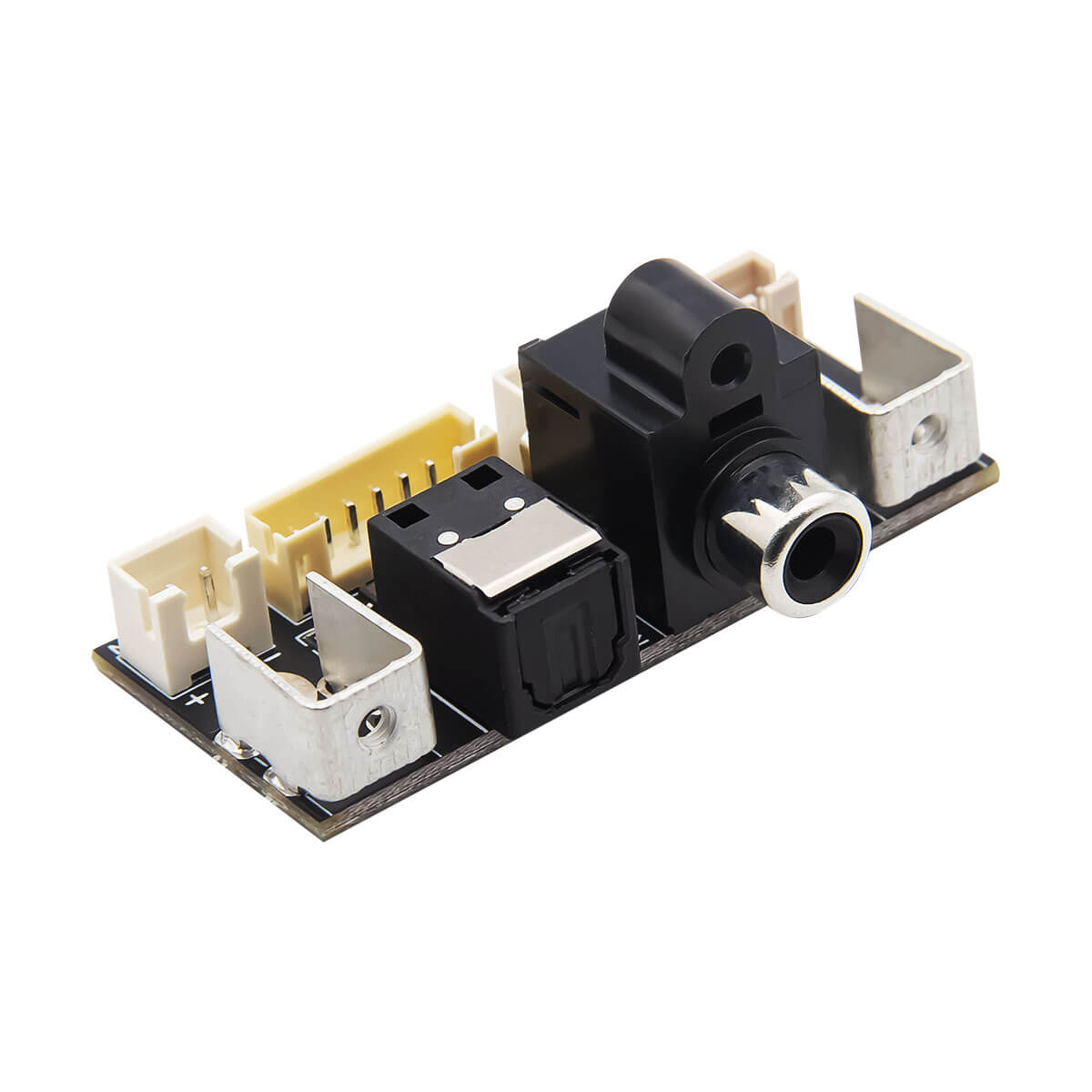

spdif out board

Enhanced Up2Stream

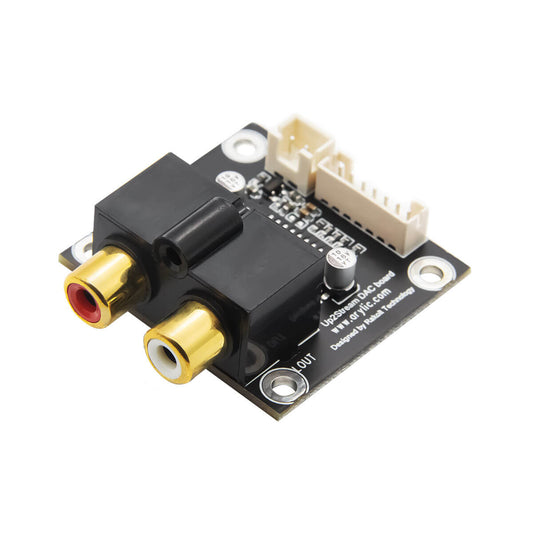

The Up2Stream Mini offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2Stream SPDIF Board, Up2Stream Button Board, Up2Stream ESS9023 DAC Board, Up2Stream IR Extension Board, and Up2Stream Volume Knob Board. You can find all the boards in Accessories.

Smart Home Assistant Integration

The Up2Stream Mini offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications.

Get API files below and check the cases in our forum.

Download API

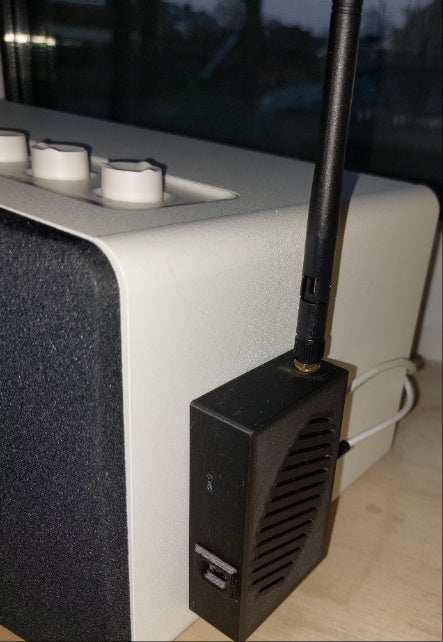

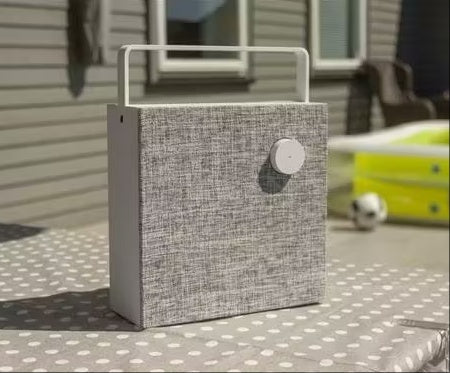

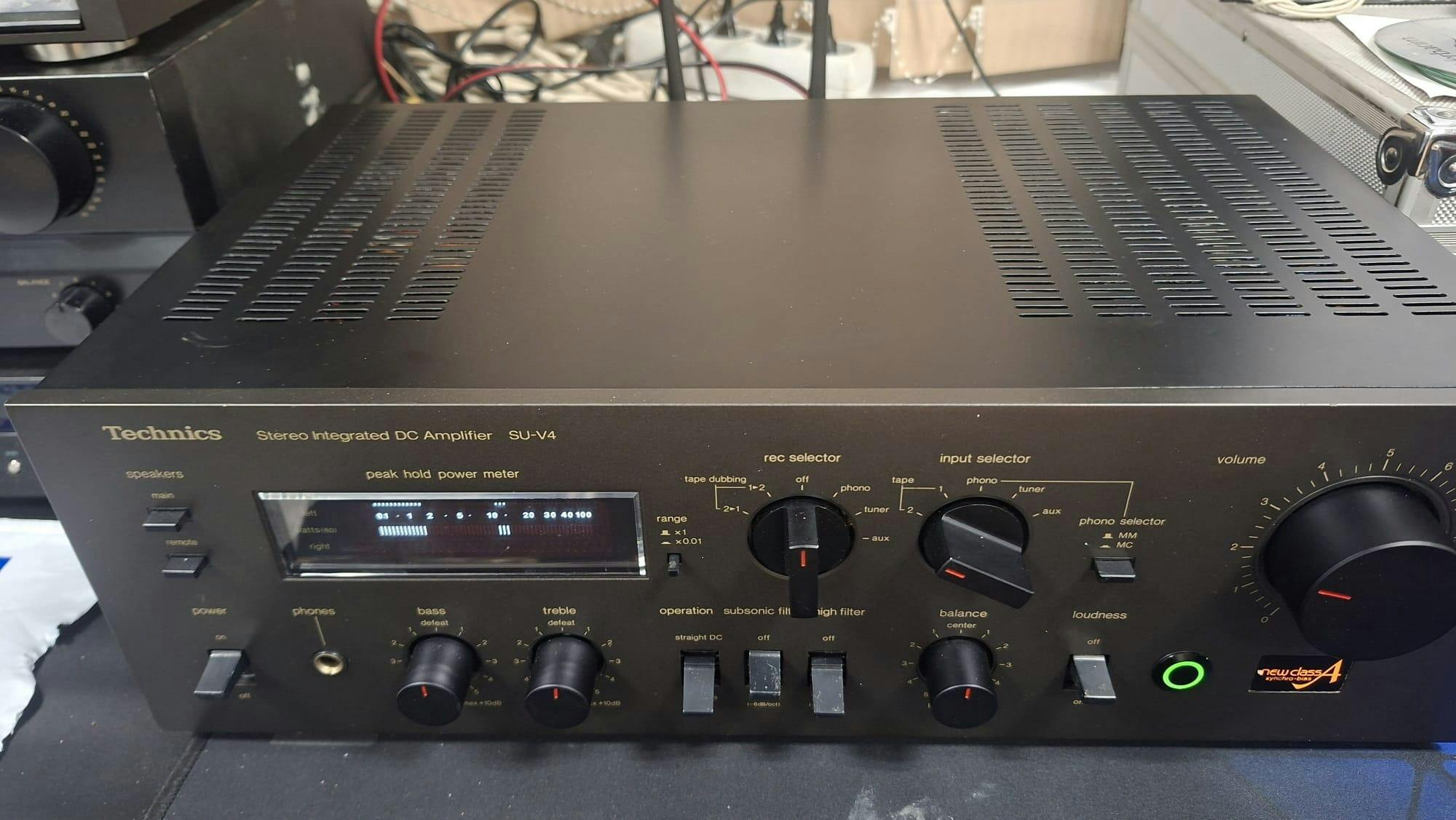

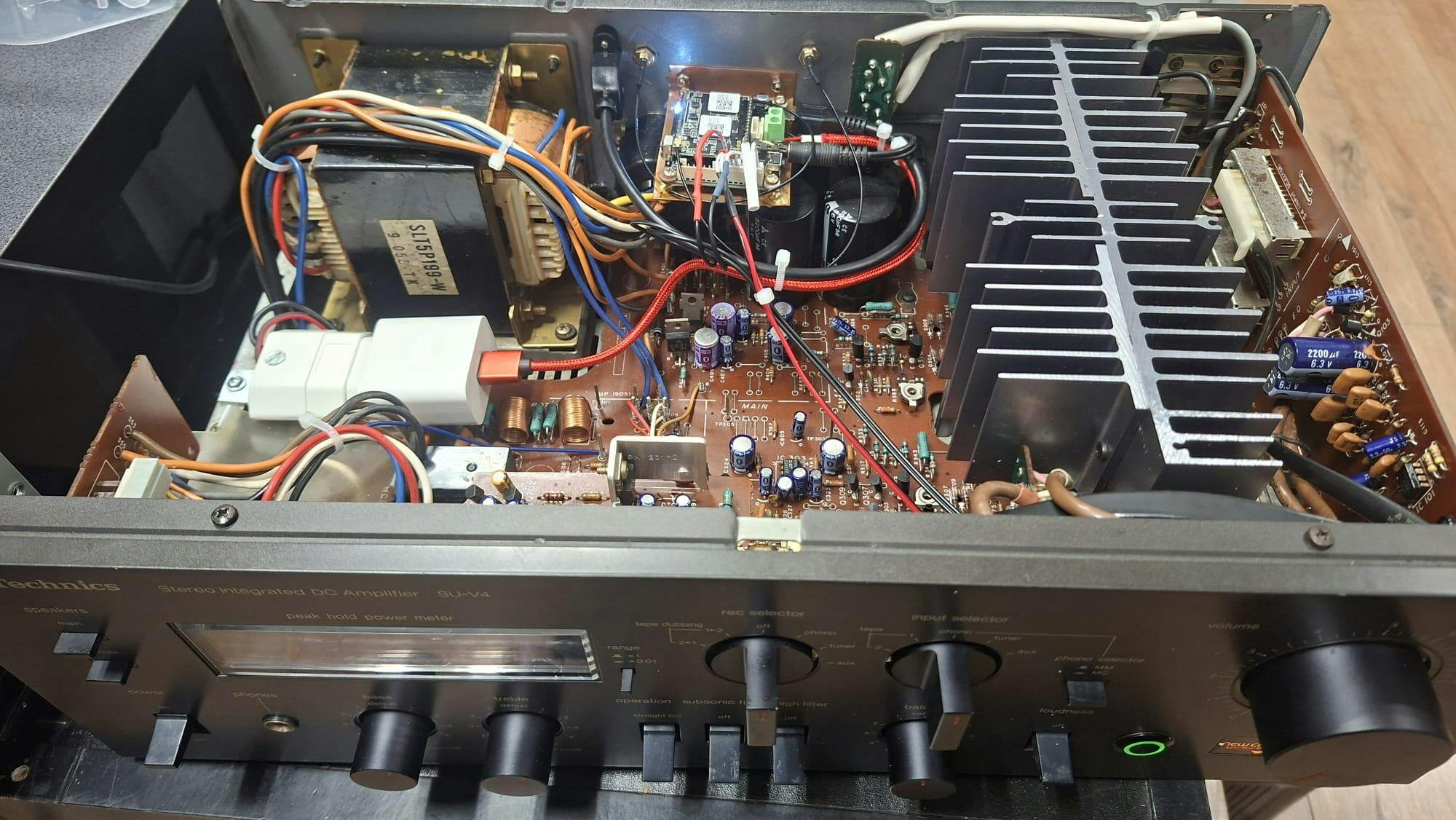

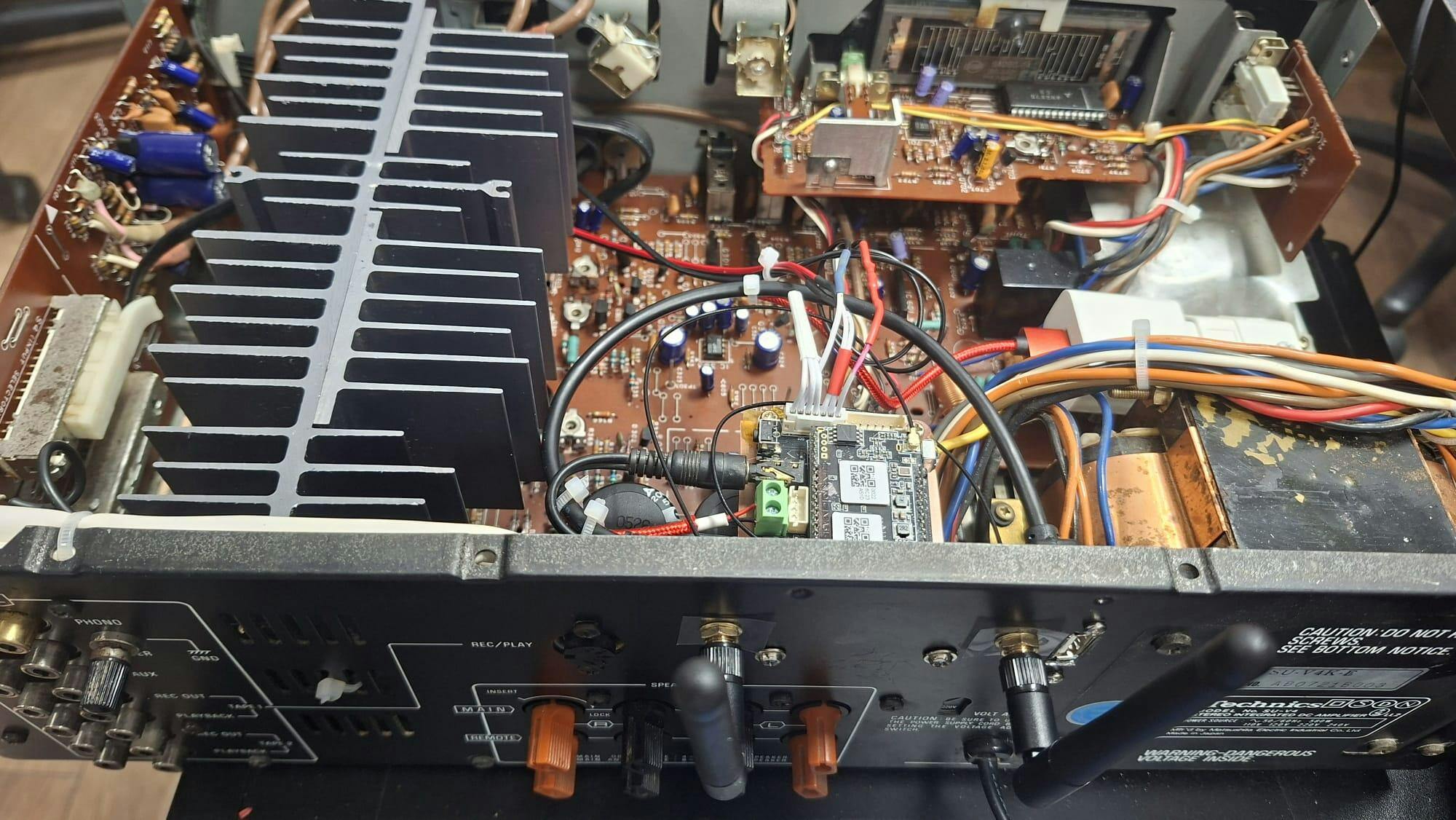

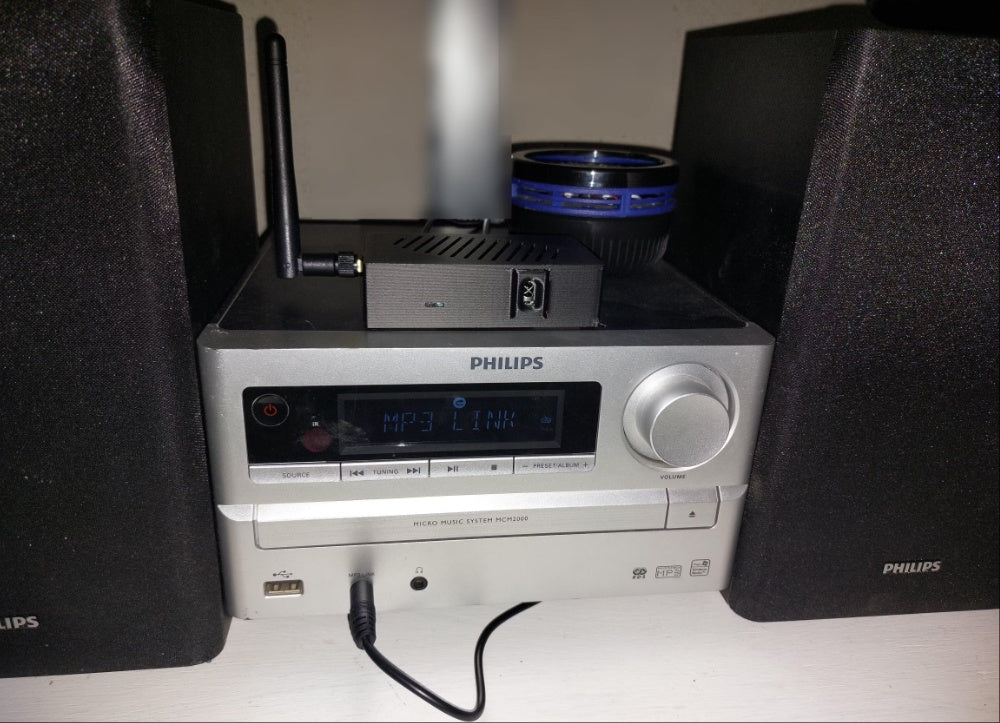

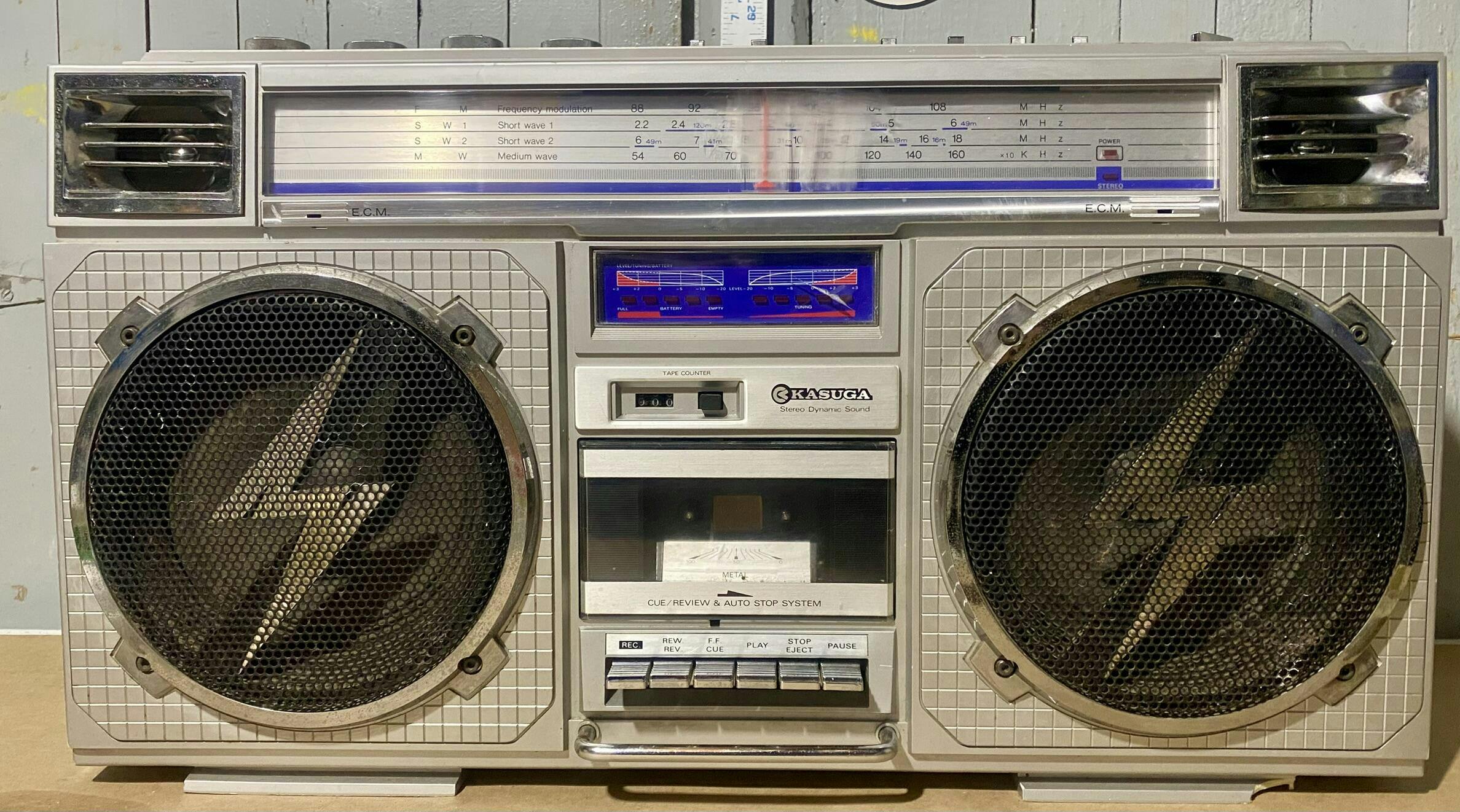

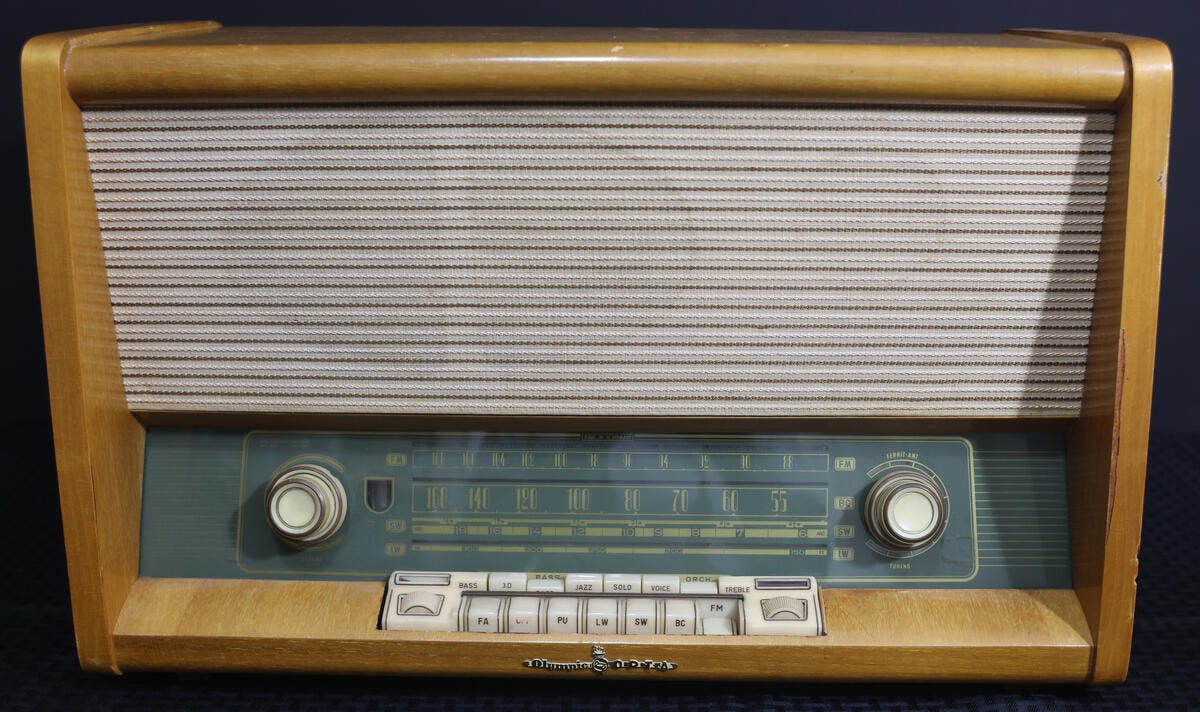

Build Your Wireless Projects

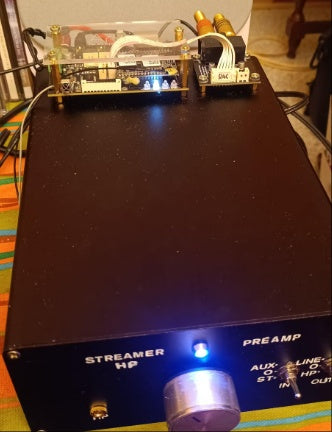

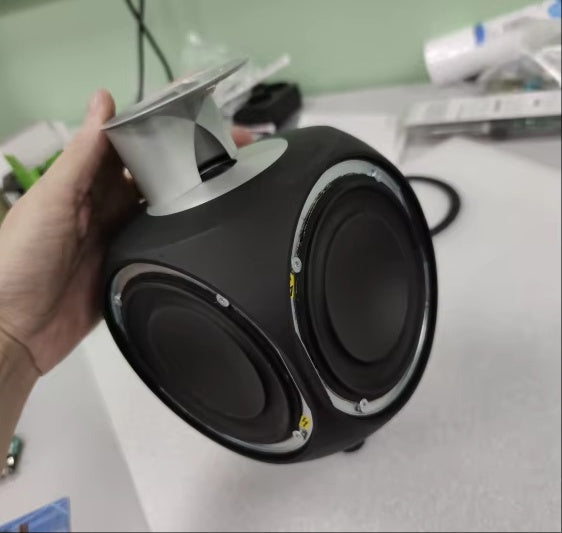

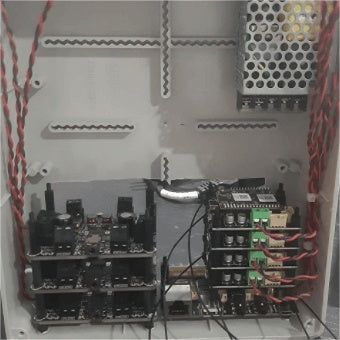

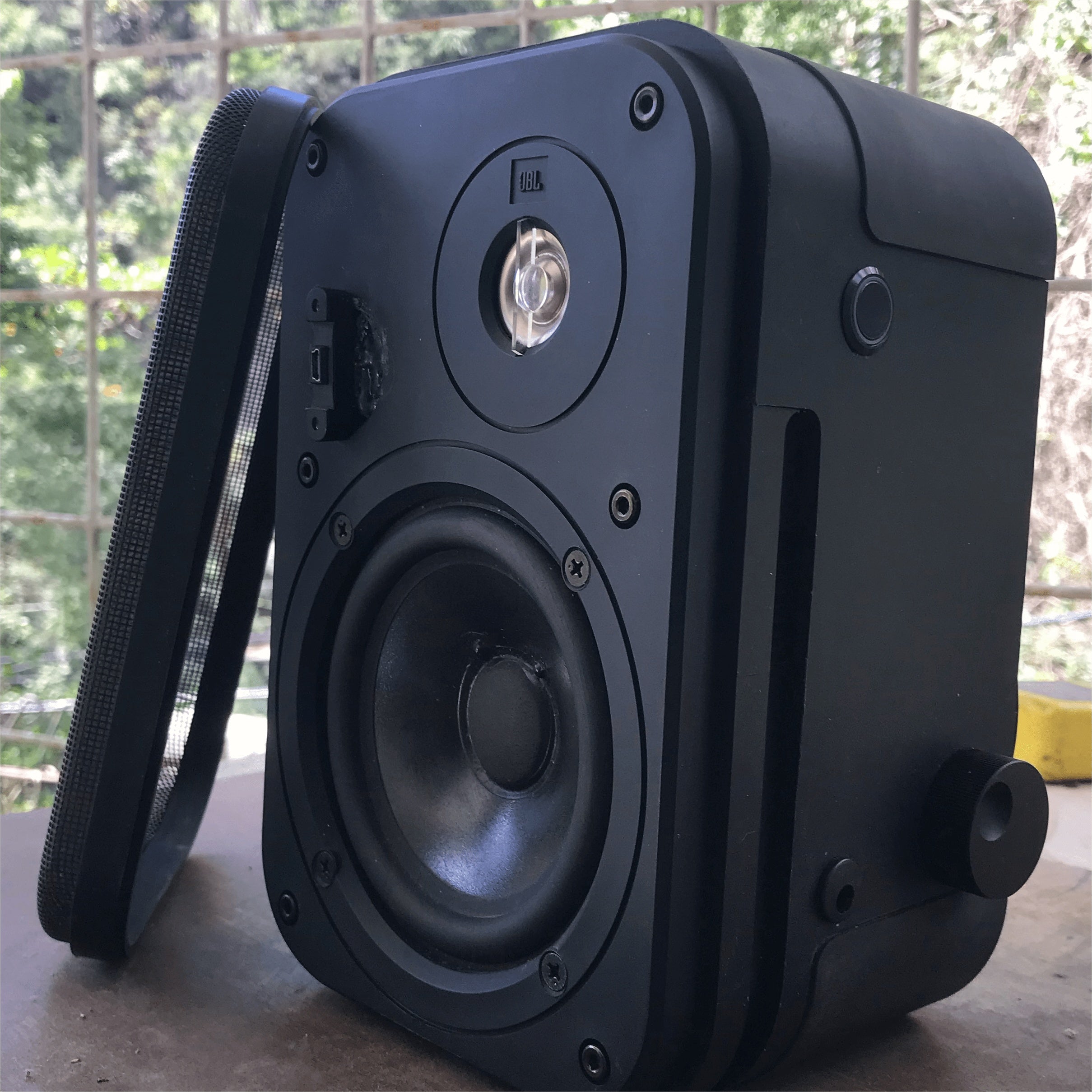

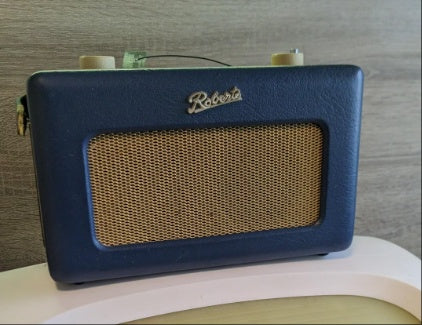

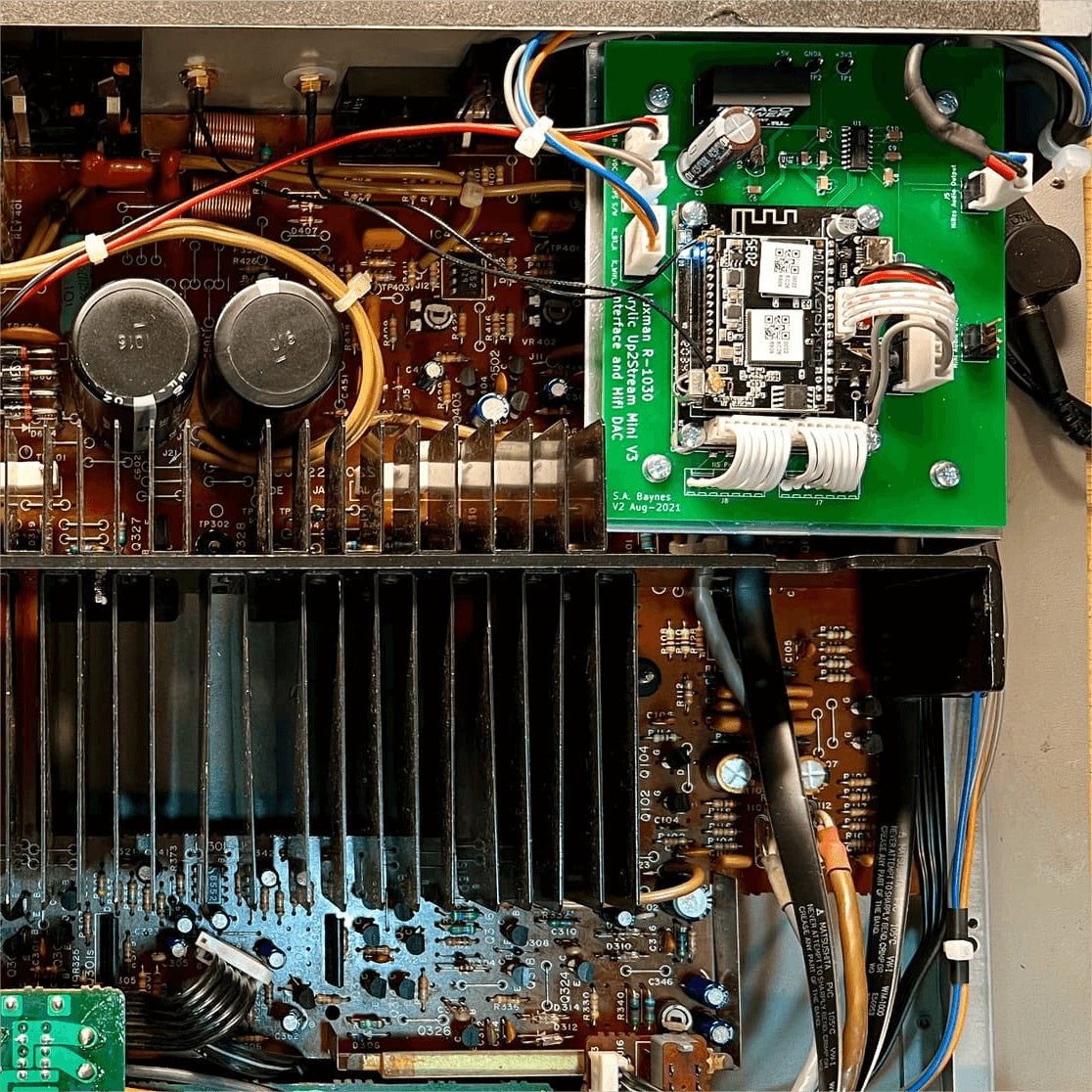

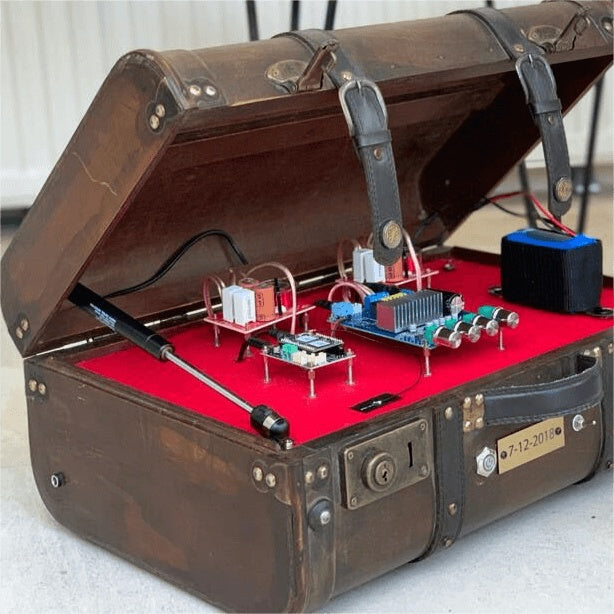

  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker
  • Up2Stream Mini Board DIY Speaker

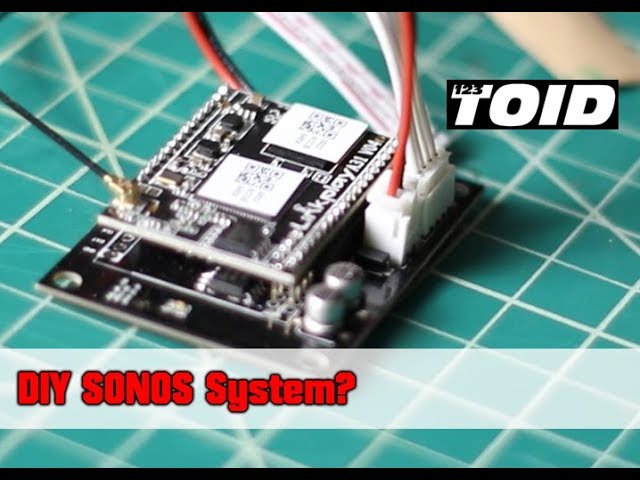

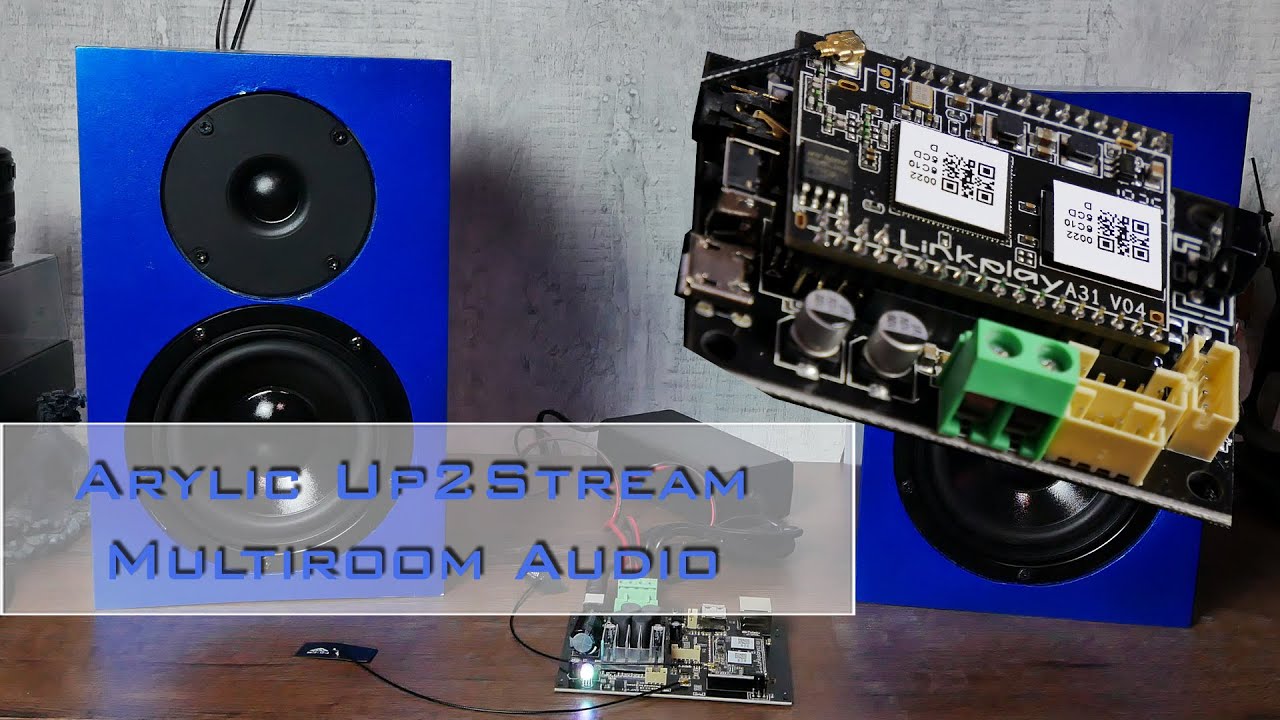

Related Videos

Compatible Accessories

View all

FAQ

Is there a connection for triggering a relay to switch on/off an external amplifier?

Yes. but need to use our dsp tool ACPWorkbench Tuning Tool to define the GPIO to work as relay.

Can I stream from YouTube ?

Yes you can stream YouTube by AirPlay or Bluetooth.

How can I stream from PC wirelessly?

You can use any software that supports Airplay, DLNA or UPnP protocols. Such as iTunes, Muiscbee, Foobar2000 etc.

Can we listen to a radio with a personalized link? If yes, how ?

Yes, this is available. There are 2 ways you can do this.

1. 4STREAM APP> Internet radio> Click on the menu icon on the top right corner.>You should see a "Custom URL" button, then you can put in your link there and listen to the radio that URL points to.

2. Entry web control>Radio>register your account>my station

Can a Google Home stream to this over wifi?

Currently , Up2Stream Mini only support connecting Google Home or Alexa via Bluetooth or Line in.
