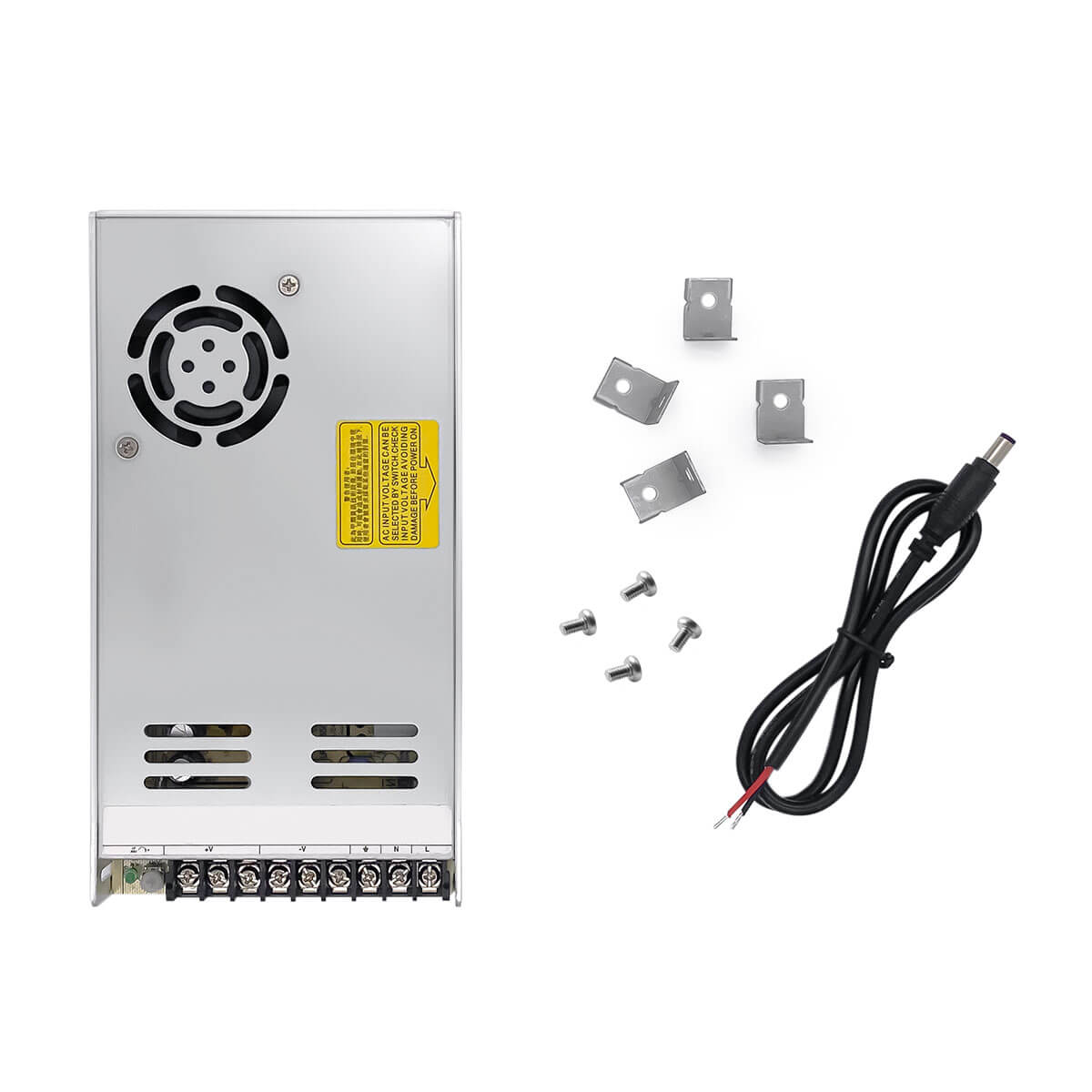

SPS350 350W Switching Power Supply
SPS350 350W Switching Power Supply
Free & Fast Delivery
Free & Fast Delivery
- Free Shipping Over $90
- Free Shipping in United States and Europe Union regions.
- $8.8 Shipping fee for other regions
- 3-7 business days to be delivered
For more, please refer to our shipping policy for more details.
30 Days of Free Return
30 Days of Free Return
30 Days of Worry Free Guarantee
- No Questions Asked: Return undamaged items within 30 days for any reason
- Full Refund Promise: 100% money back to original payment method
- Fast Processing: Refunds start when we receive your return
For more, please refer to our return policy for more details.
Hassle-Free Warranty
Hassle-Free Warranty
- What We Replace: Manufacturing defects within 1 year of delivery
- Fast Process: Replacement always, quick to get new one to use.
- Global Support: Valid for purchases from official channels
For more, please refer to our warranty policy
Couldn't load pickup availability
Specification
Input/Output
Input
DC Voltage 90~132VAC/180~264VAC by switch
240~370VDC (switch on 230VAC)
Frequency Range: 47~63Hz
Output
DC Voltage 24VRated Current 14.6ARated Power 350.4WRipple & Noise (Max.) 150mVp-pVoltage Tolerance +/- 1.0%
Control
Efficiency
88%
AC Current
6.8A/115VAC
3.4A/230VAC

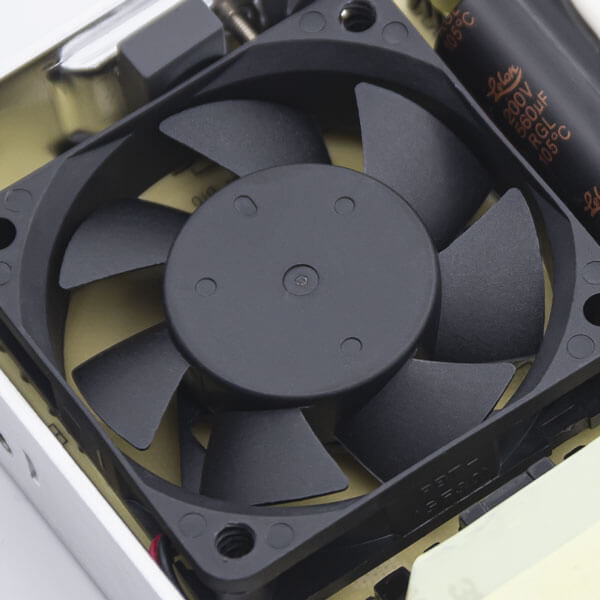

Fan On/Off Control
RTH3>=50 Fan On
RTH3>=50 Fan On
General
Environment
Working Temperature -25°C ~+70°C
Working Humidity 20~90% RH non-condensing
Storage Temperature -40°C ~+85°C
Storage Humidity 10~95% RH
Safety
Safety Standards IEC/UL 62368 -1, BSMI CNS14336 -1, EAC TP TC 004, KC K60950-1
EMC Emission Compliance to BSMI CNS13438, EAC TP TC 020, KC KN32, KN35
EMC Immunity Compliance to EAC TP TC 020, KC KN32, KN35
Dimension
215x115x30mm (LxWxH)
Weight
0.76KG

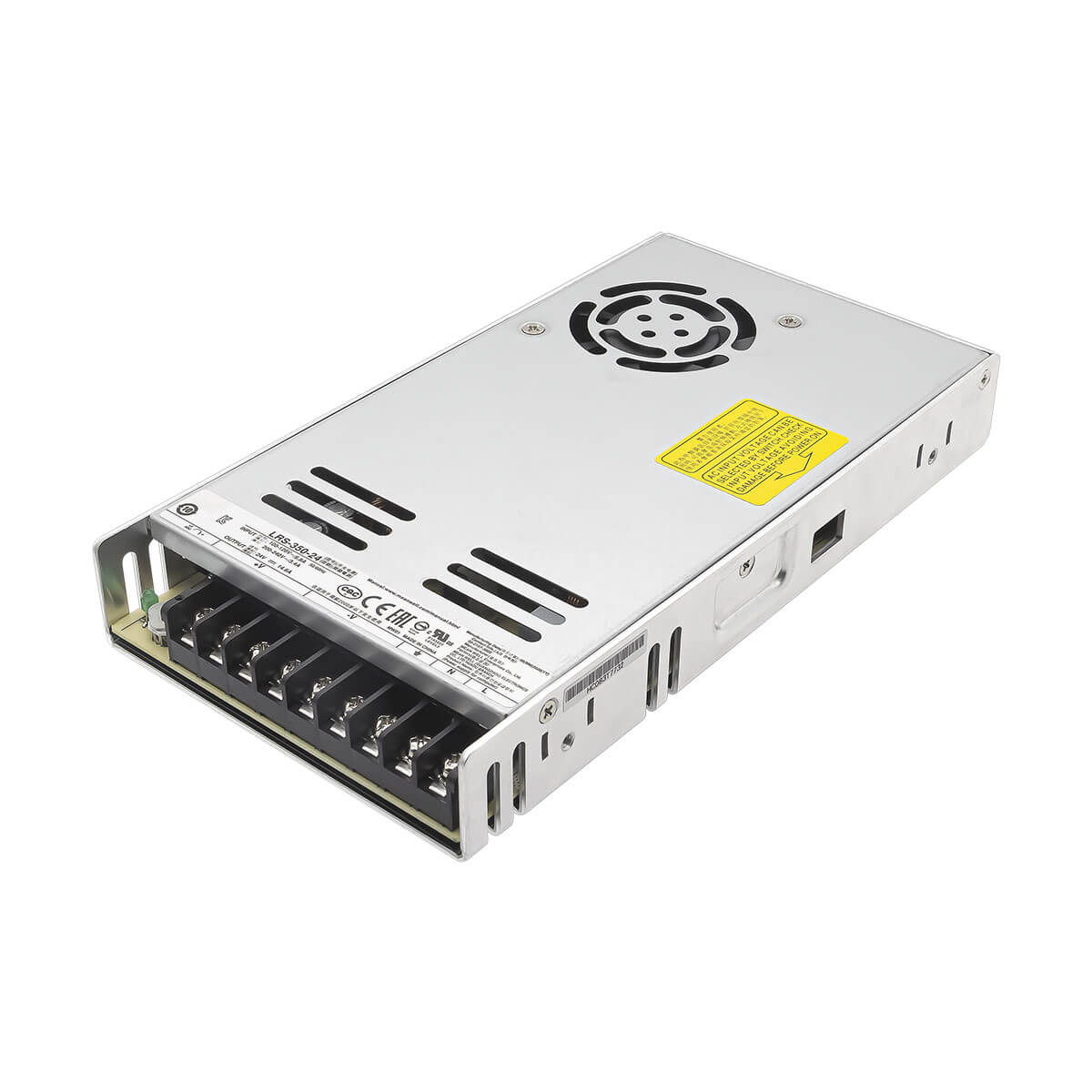

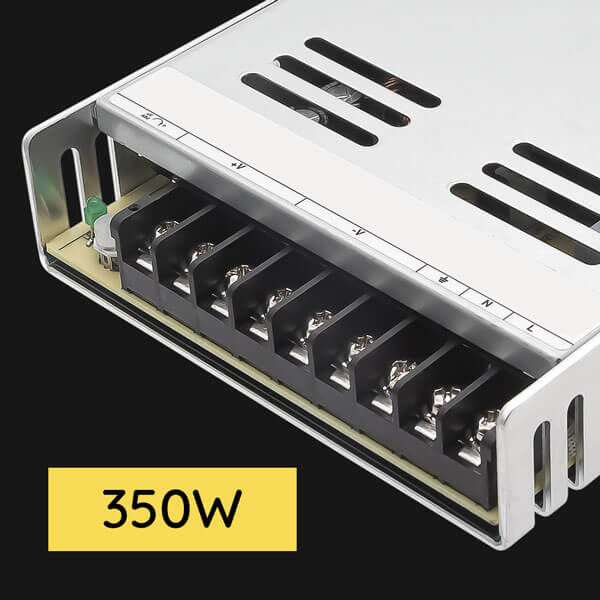

350W Switching Power Supply

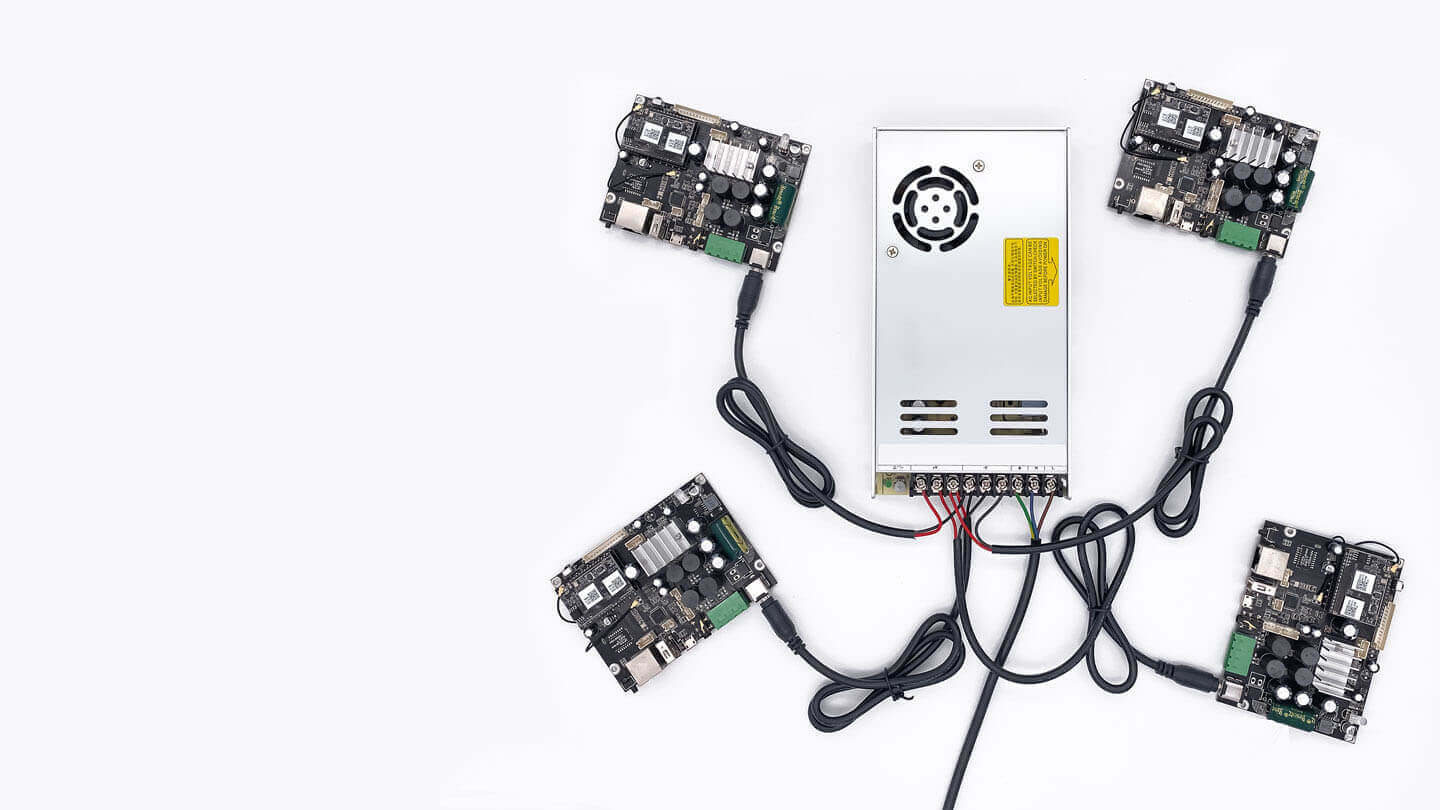

Unlike normal power supply that can only connect to one device, SPS-350 power supply can provide power to multiple devices at the same time.
-
High Watt power
SPS-350 have 350W power supply and can provide power up to 4 Up2stream AMP 2.0 devices. You can easily calculate how many devices you can connect by dividing the Watts the connected device required.
-
Excellent Power Conversion Efficiency
SPS-350 has 88% ~ 89.5% power conversion efficiency, compare to other 80% power conversion efficiency power supply, the heat produced is halved.
-

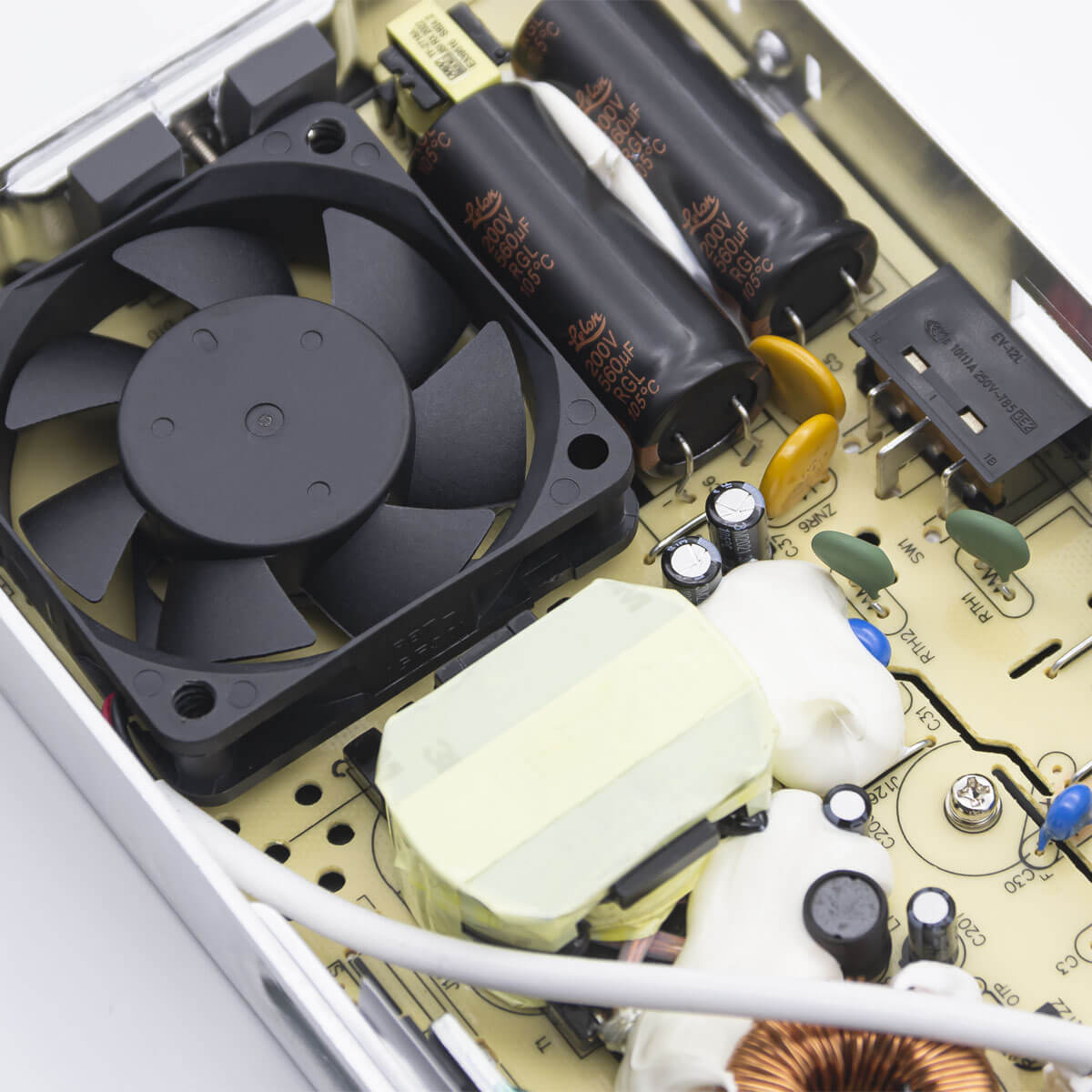

Good Quality Component used

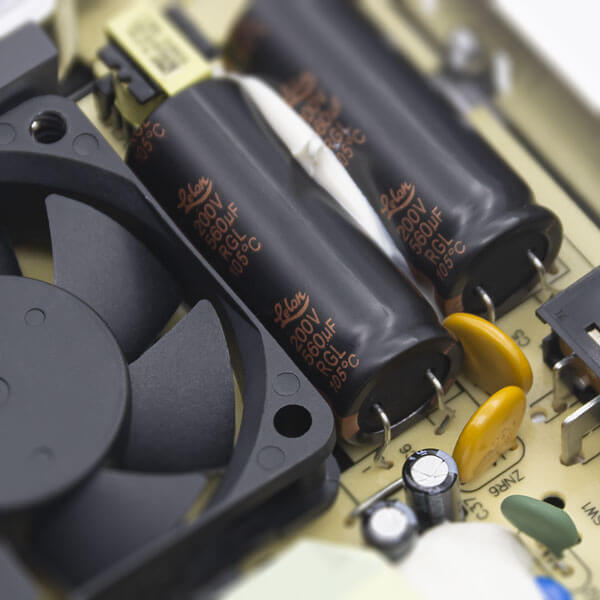

SPS-350 uses Rubycon 105℃ high temperature resistance capacitors, compare to other brand’s 85℃ capacitors, the lifespan is 4 times longer.
-
Strong protection capabilities
SPS-350 also have 4000VAC isolation voltage, which can withstand 4000VAC transient voltage and protect the connected devices.

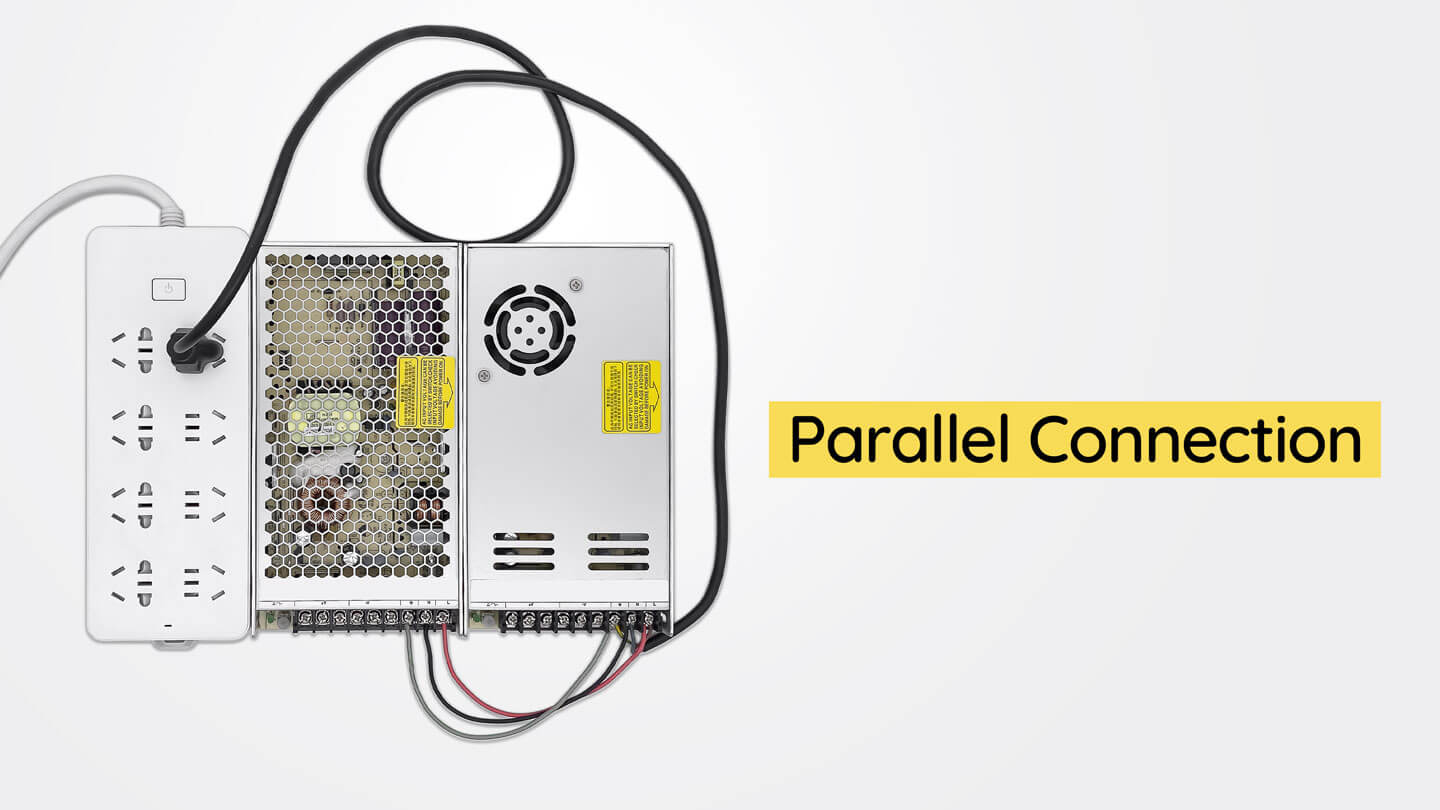

Connect Multiple Power Supply in Parallel
You can connect multiple power supply in parallel for easy installation in the power box and to host more devices at the same time.

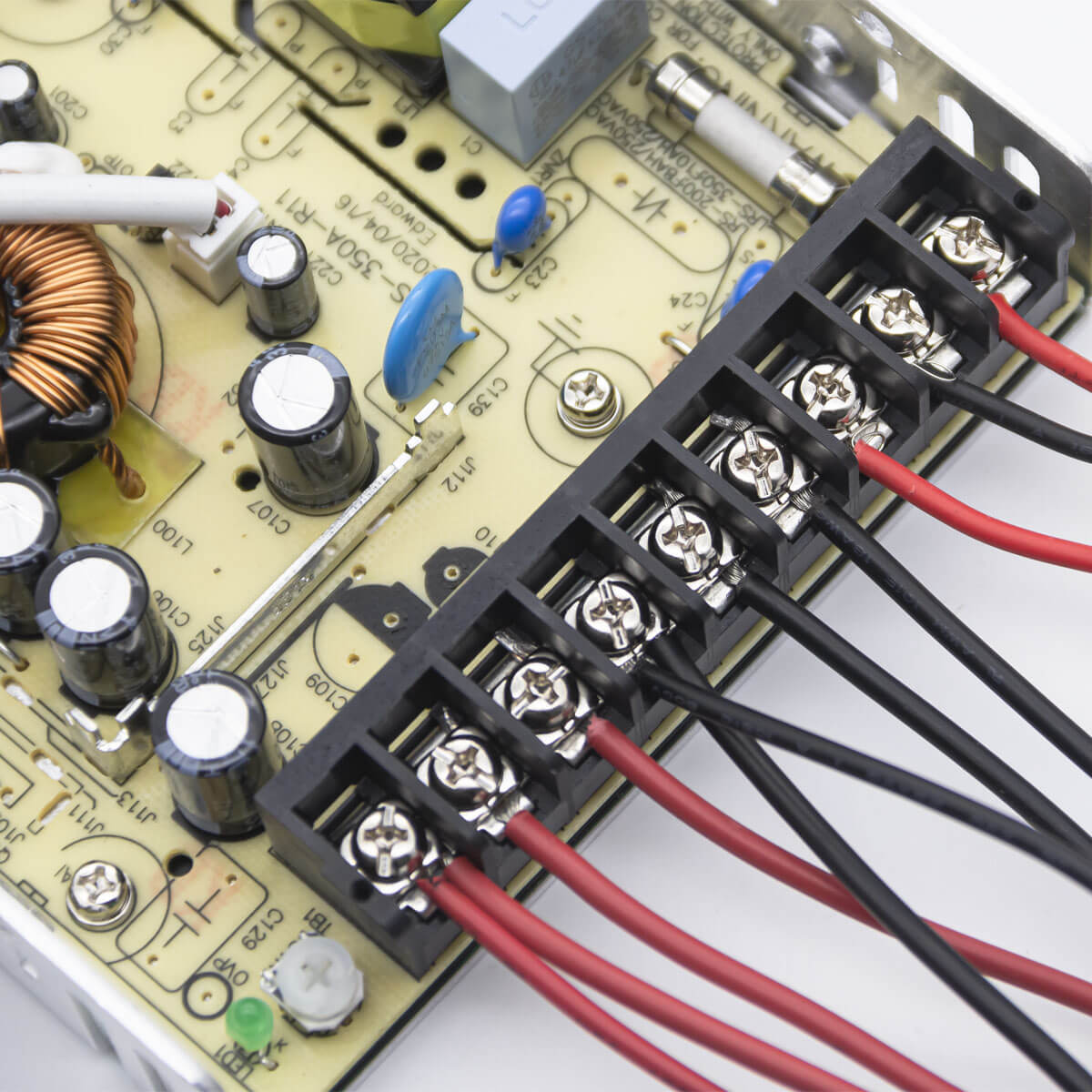

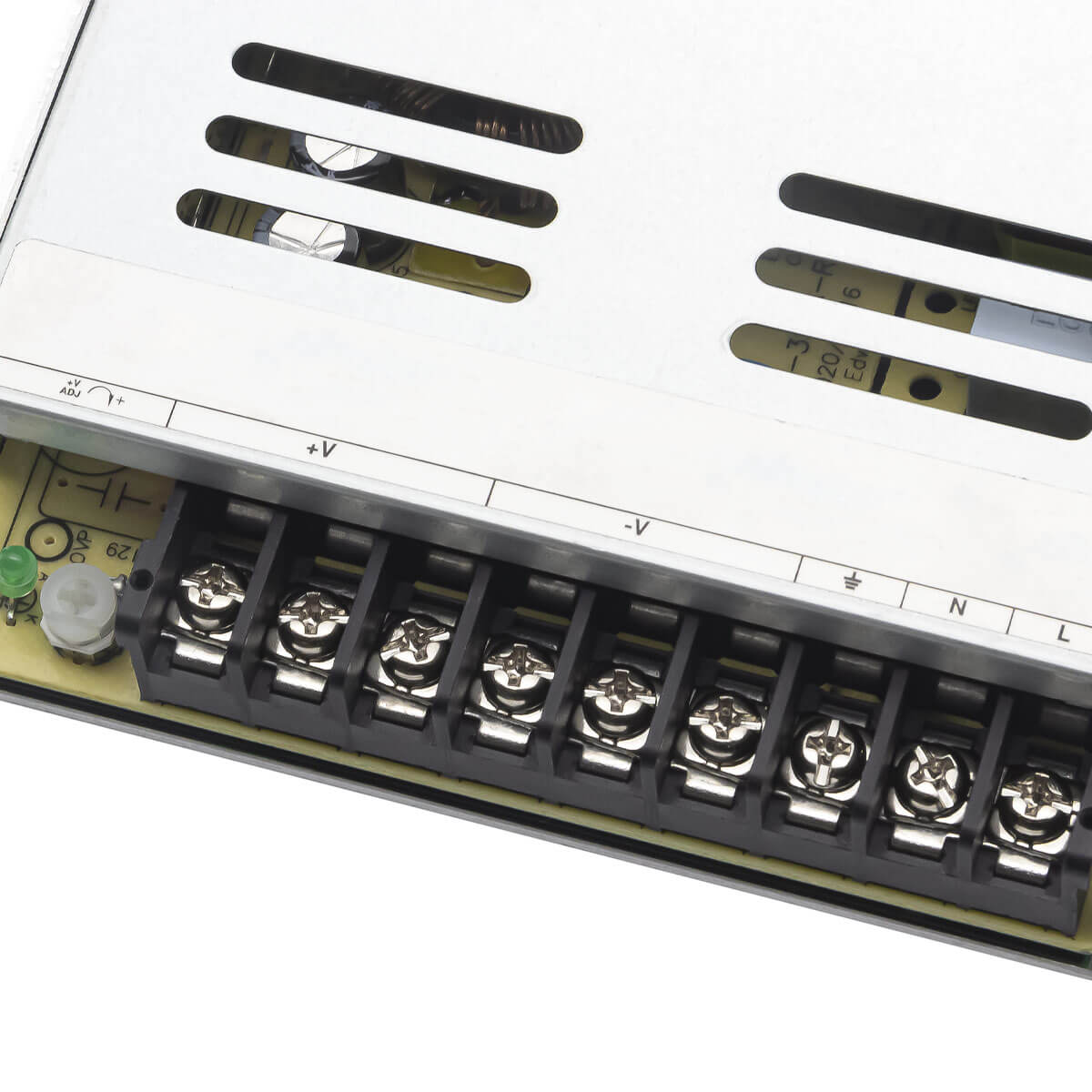

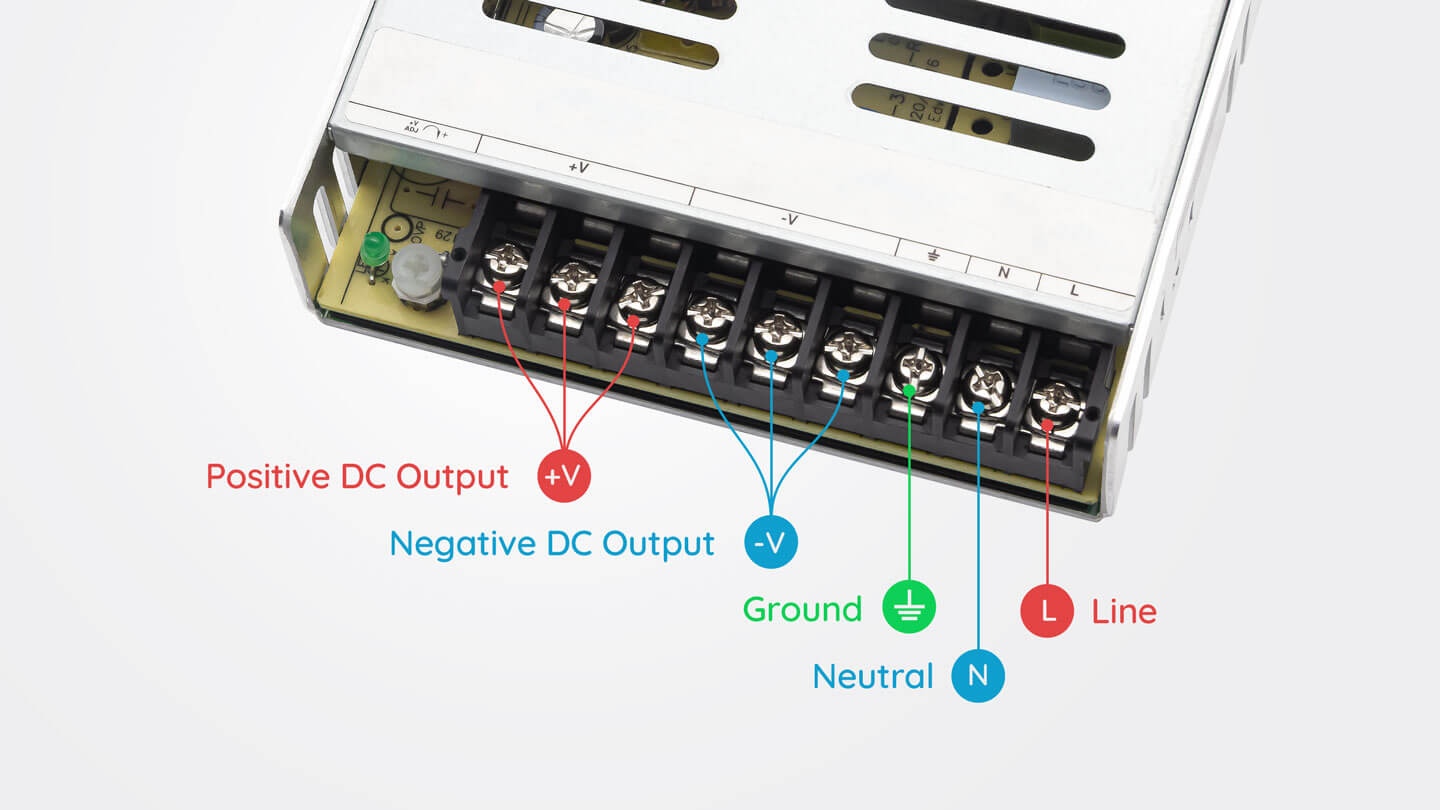

Connection

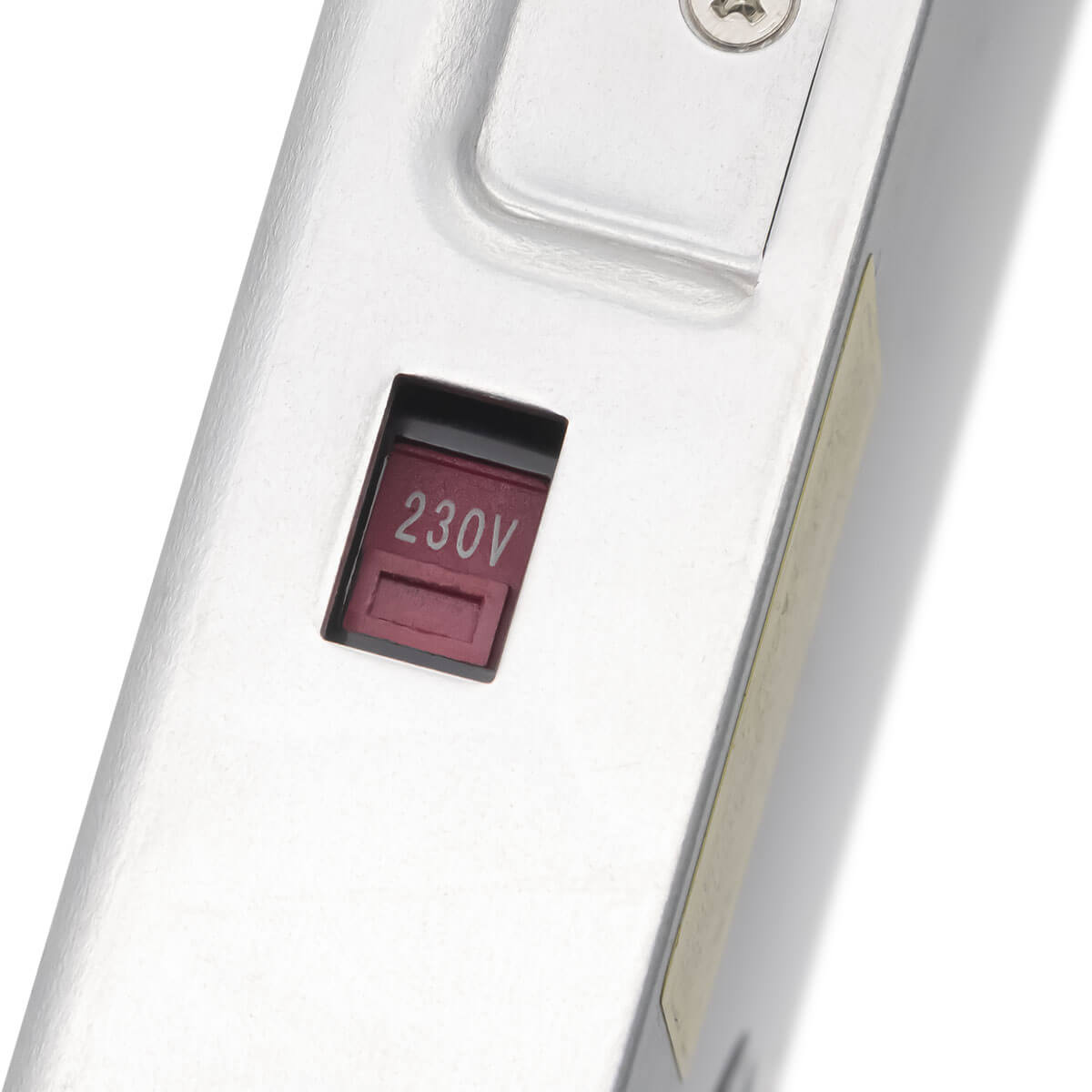

When installing the output power cable, please make sure you connect the cable to correct input/output. Also make sure you check the AC current switch on the side to make sure it is same as your country standard.
-

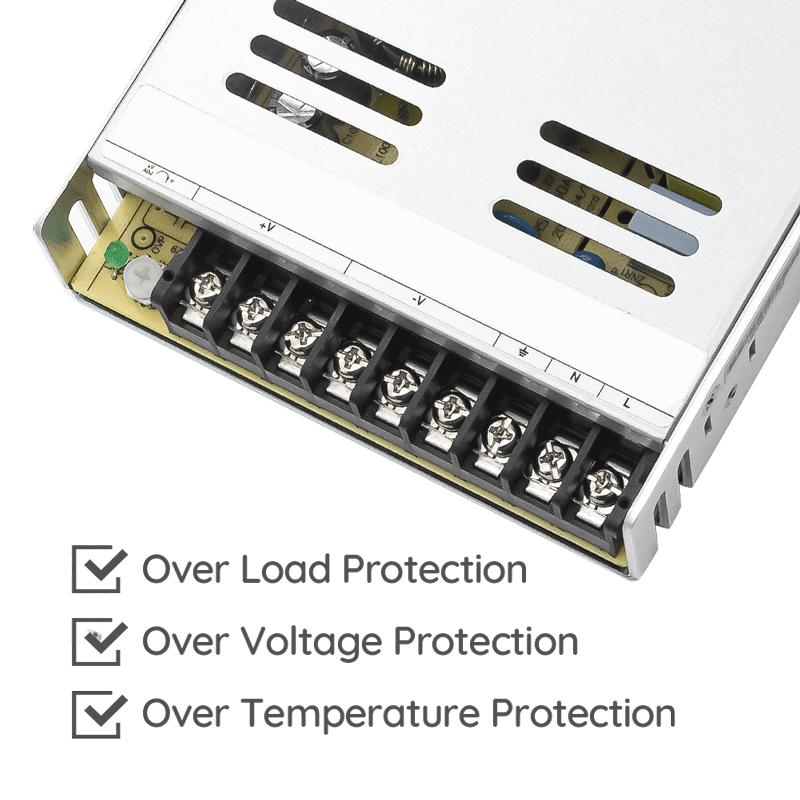

Multiple Protection
SPS-350 build with Over Load, Over Voltage and Over Temperature protection. Whenever there is a fault condition happens, SPS series power supply will go into hiccup mode and will recover automatically after fault condition is removed.
-
International Certified
SPS-350 Power Supply is complied with many international safety regulations, you can use them with ease.
