A Range Of Options To Suit Your Design
-
HiFi Tweeter
Play with clear and detailed sound.
-
Frequency Range
- AMT7:3.3kHz to 40kHz
- AMT9:2.3kHz to 31kHz
-
Power Handling
- Easy to handle any music scene.
- AMT7:25W
- AMT9:35W
-
Coverage
180°Wide Soundstage
-
Diversified Design
- 2-way
- 3-way
- bookshelf

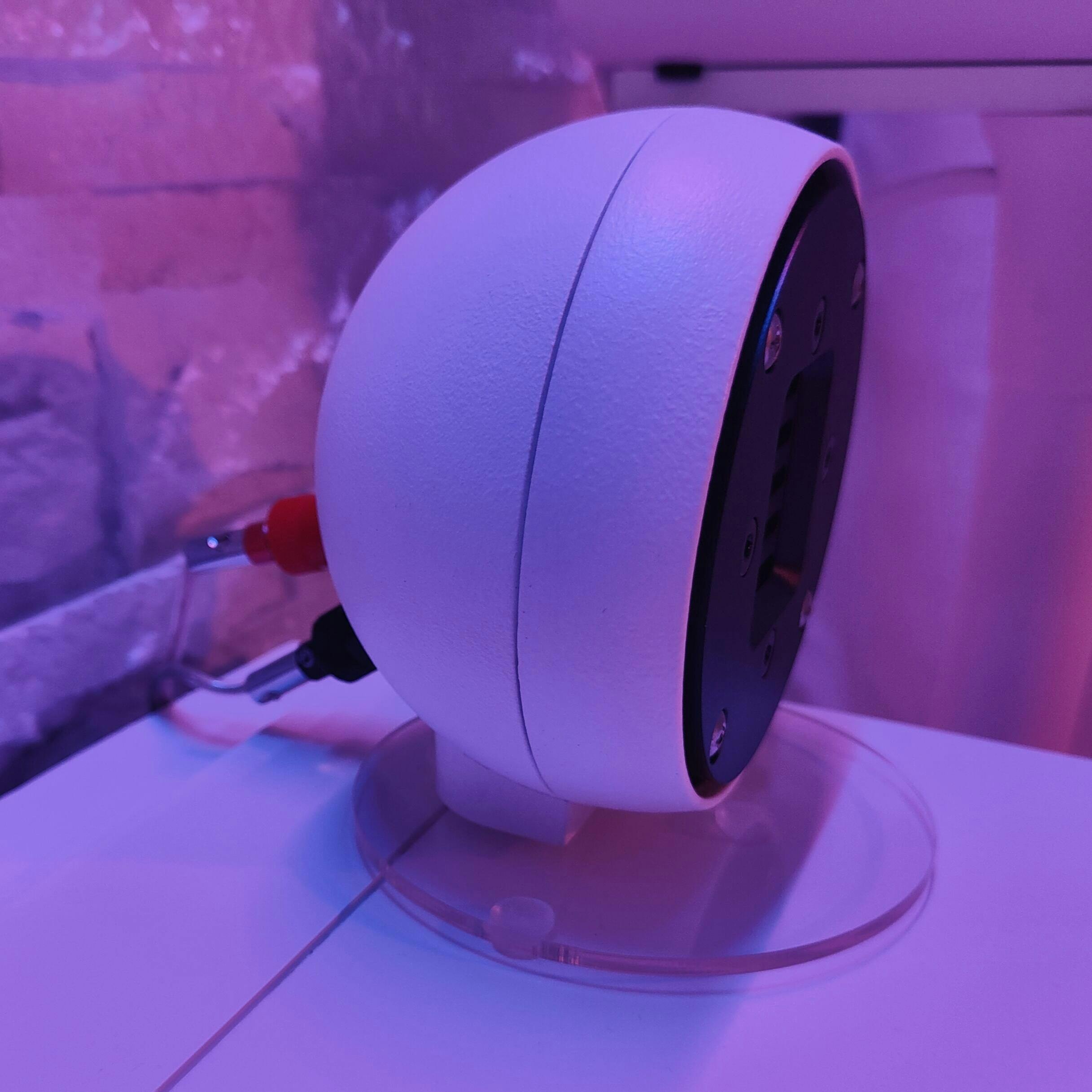

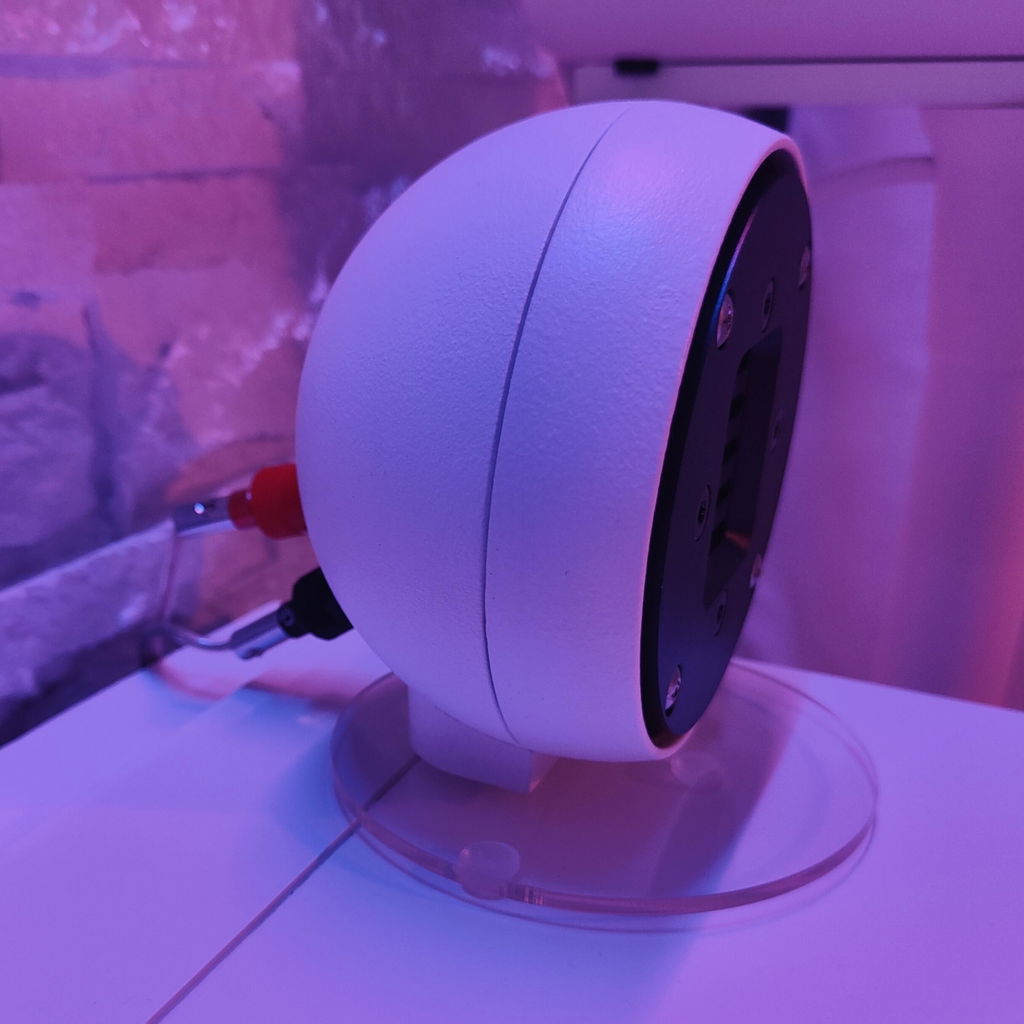

- satellite
- center speakers

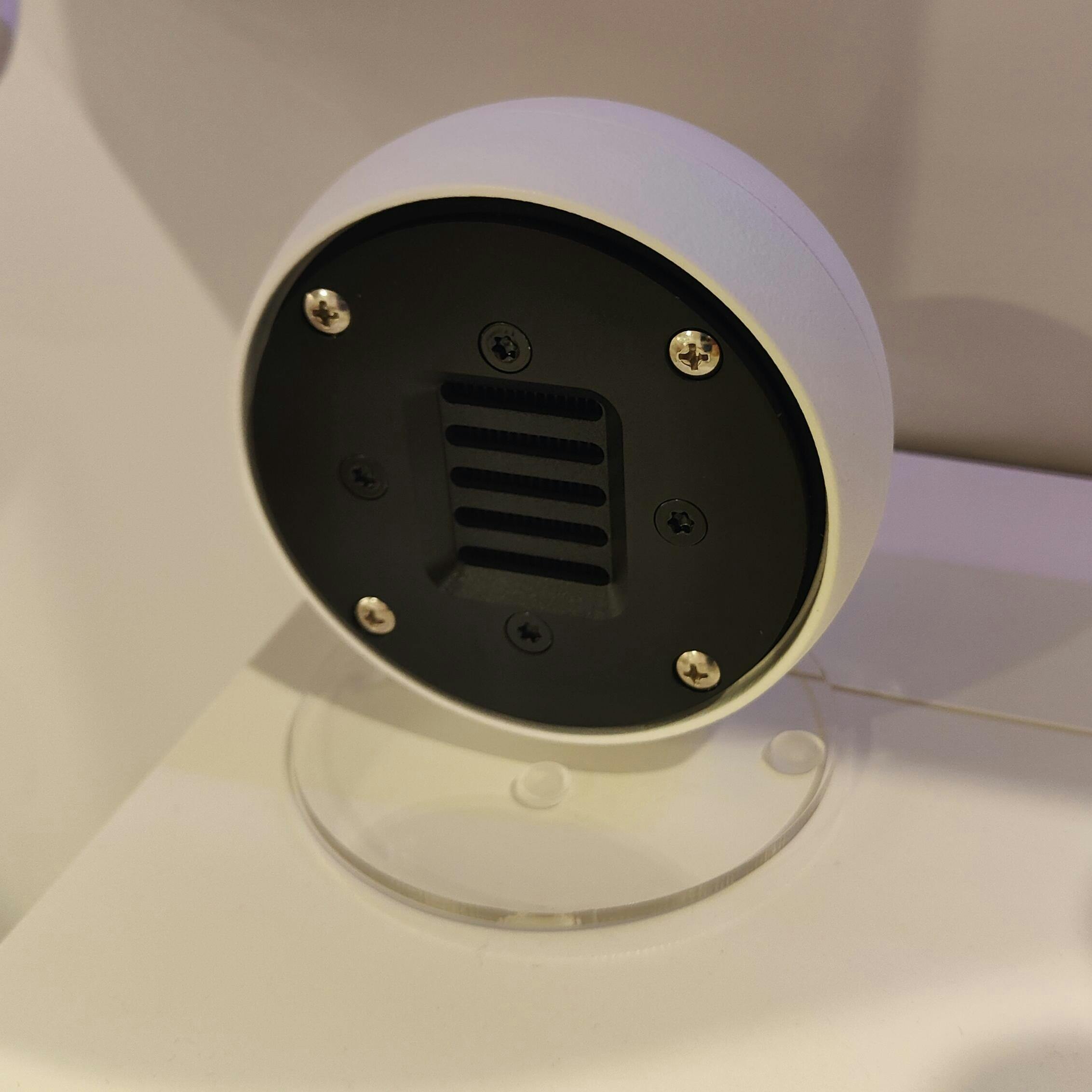

- boombox
-
High Performance
the powerful, lightweight neodymium magnet structure ensuring low distortion and high efficiency
-

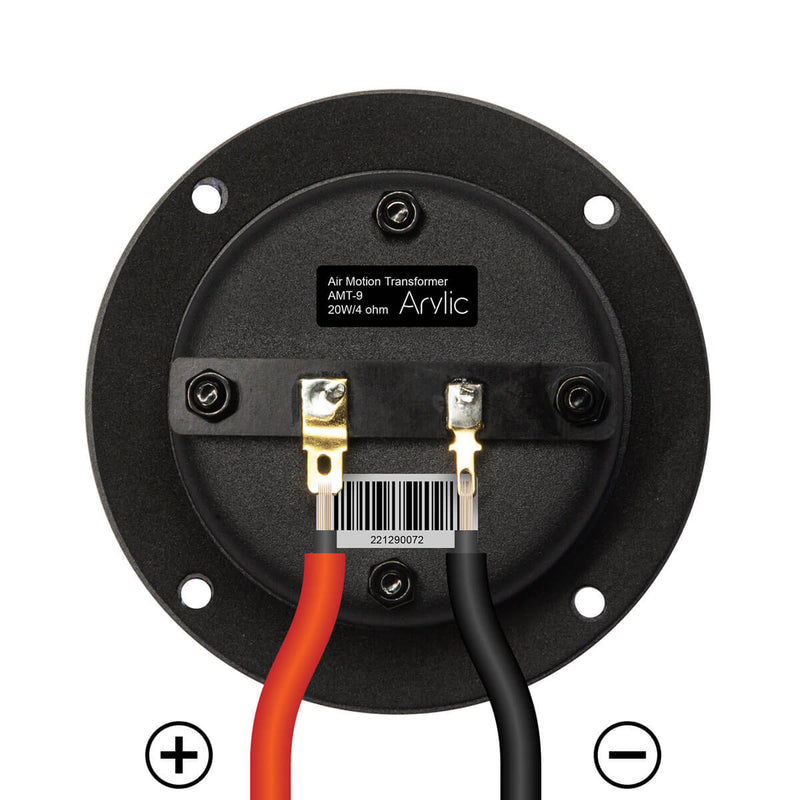

Easy to Install
Easy to install and full sealing with already mounted EVA.
-

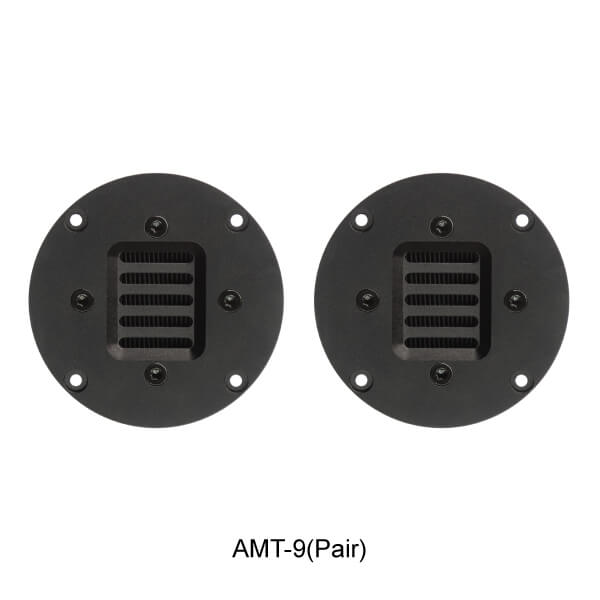

Optional Size
We offer AMT-7 and AMT-9 two size for flexiable speaker building projects.
About AMT Tweeters

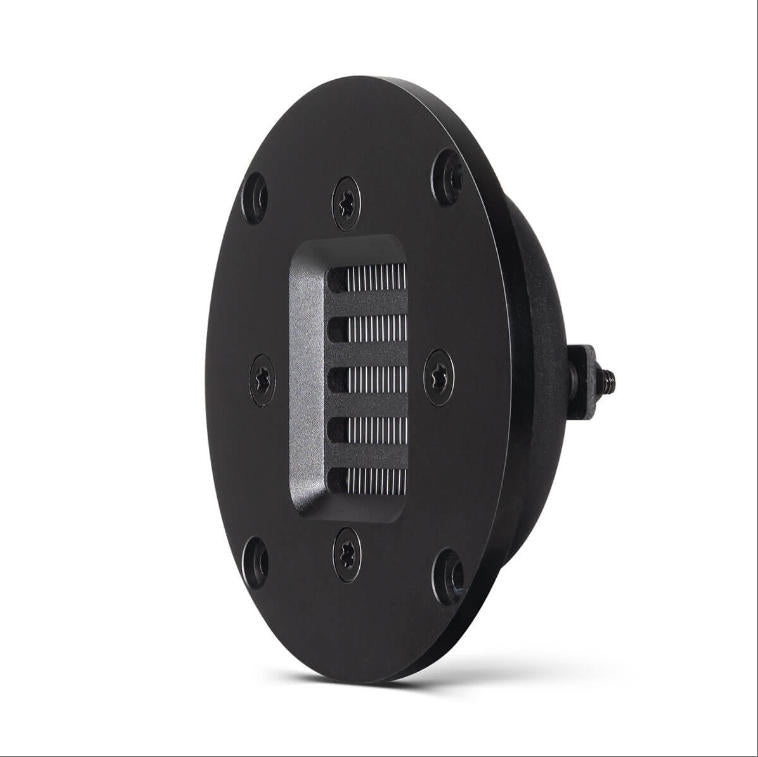

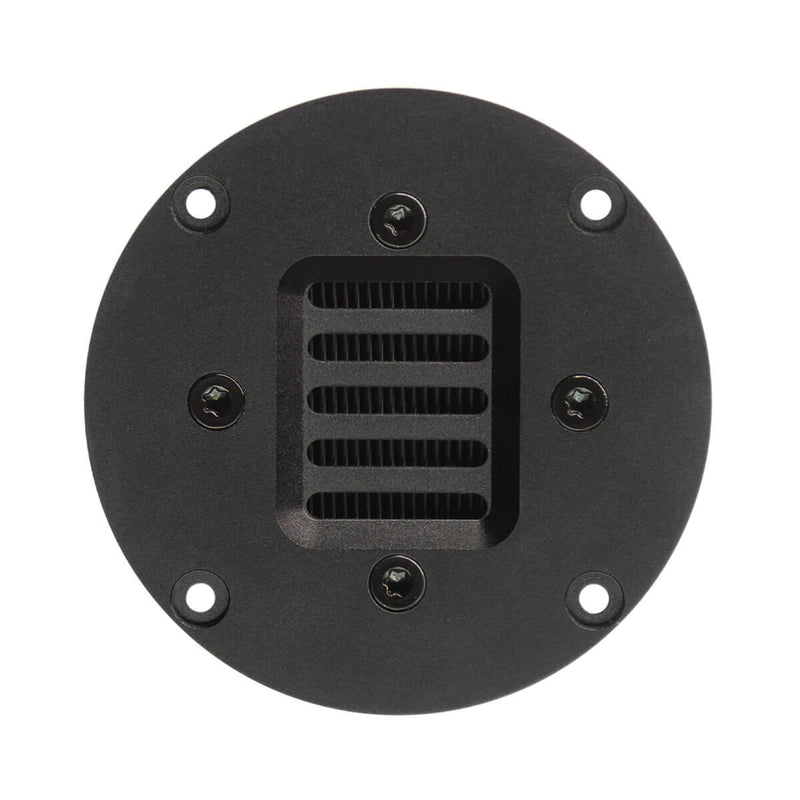

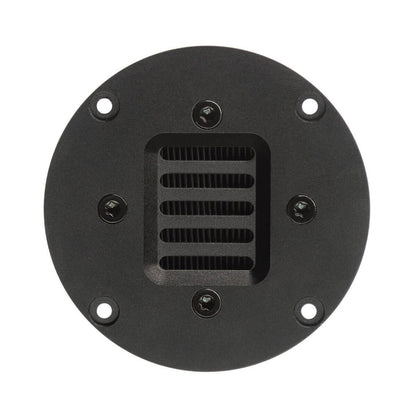

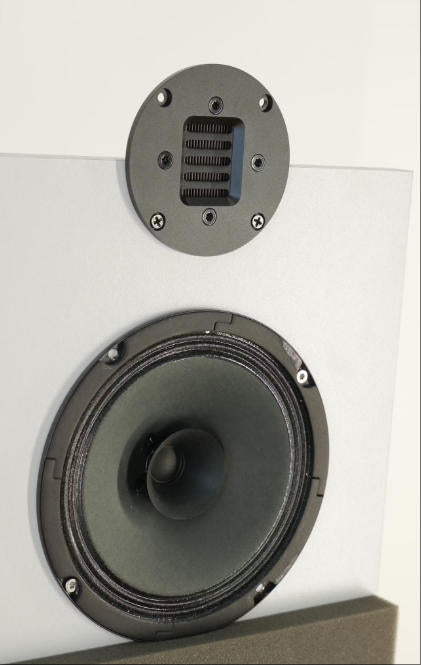

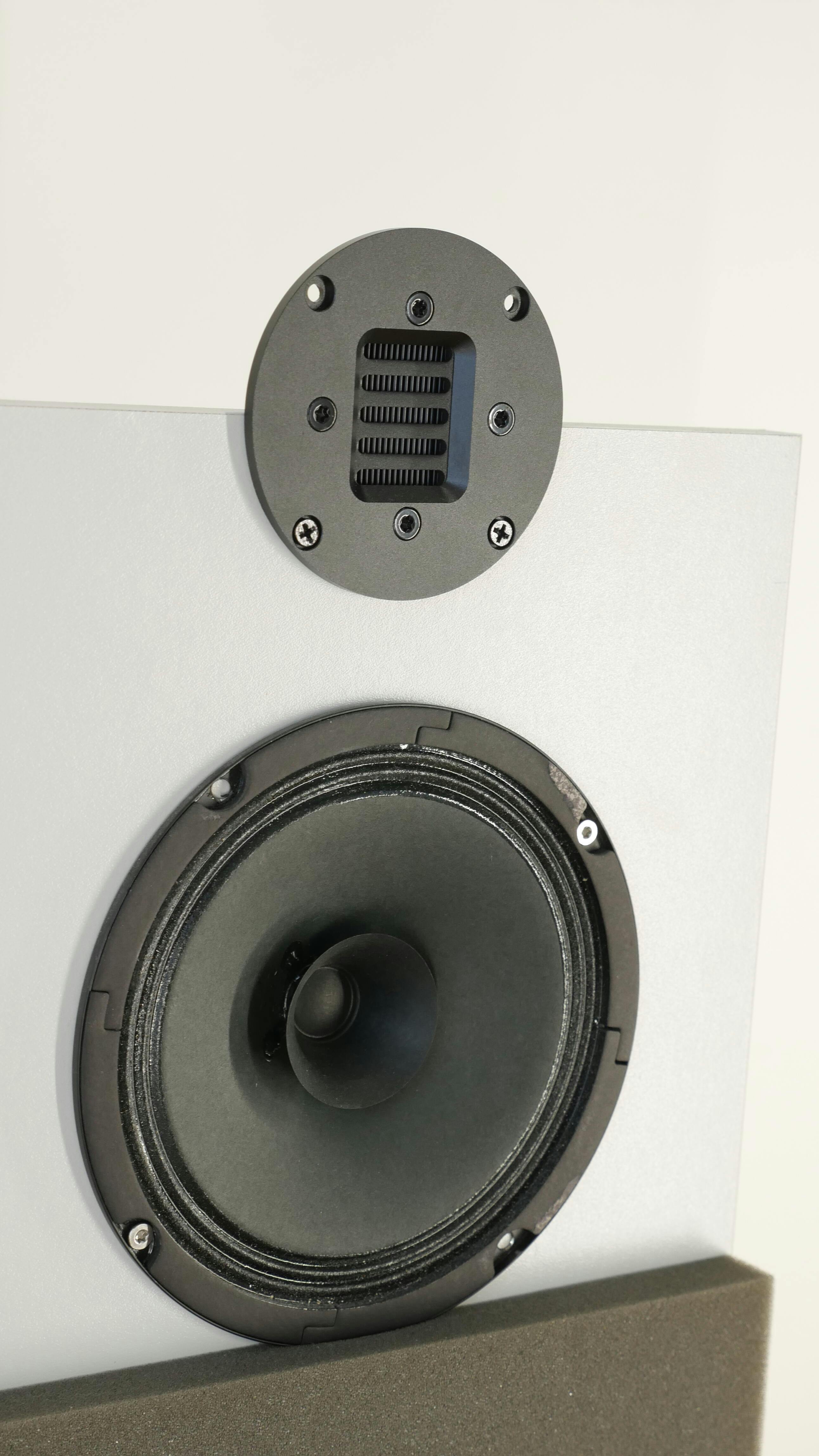

The AMT-7 and AMT-9 Heil AMT Tweeters feature a compact AMT element housed in a round design, offering a wide dispersion of sound that can easily upgrade existing or new speaker designs.
With their small size, they can be used in a variety of speaker projects, including 2-way, 3-way, bookshelf, satellite, center speakers, and boombox.
The attached EVA on the AMT Tweeter ensures a tight seal, optimizing sound quality.
These tweeters utilize premium black film and an advanced AMT design that "squeezes" air molecules to produce clean, detailed, and dynamic treble output with a broad frequency range of up to 40kHz and a wide soundstage.
Additionally, the powerful, lightweight neodymium magnet structure ensuring low distortion and high efficiency.

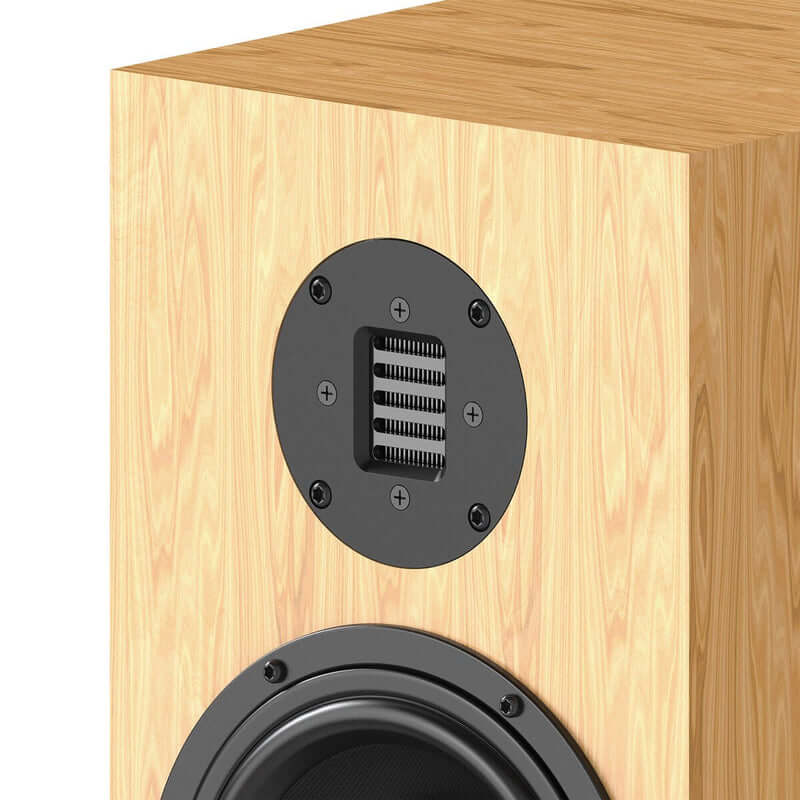

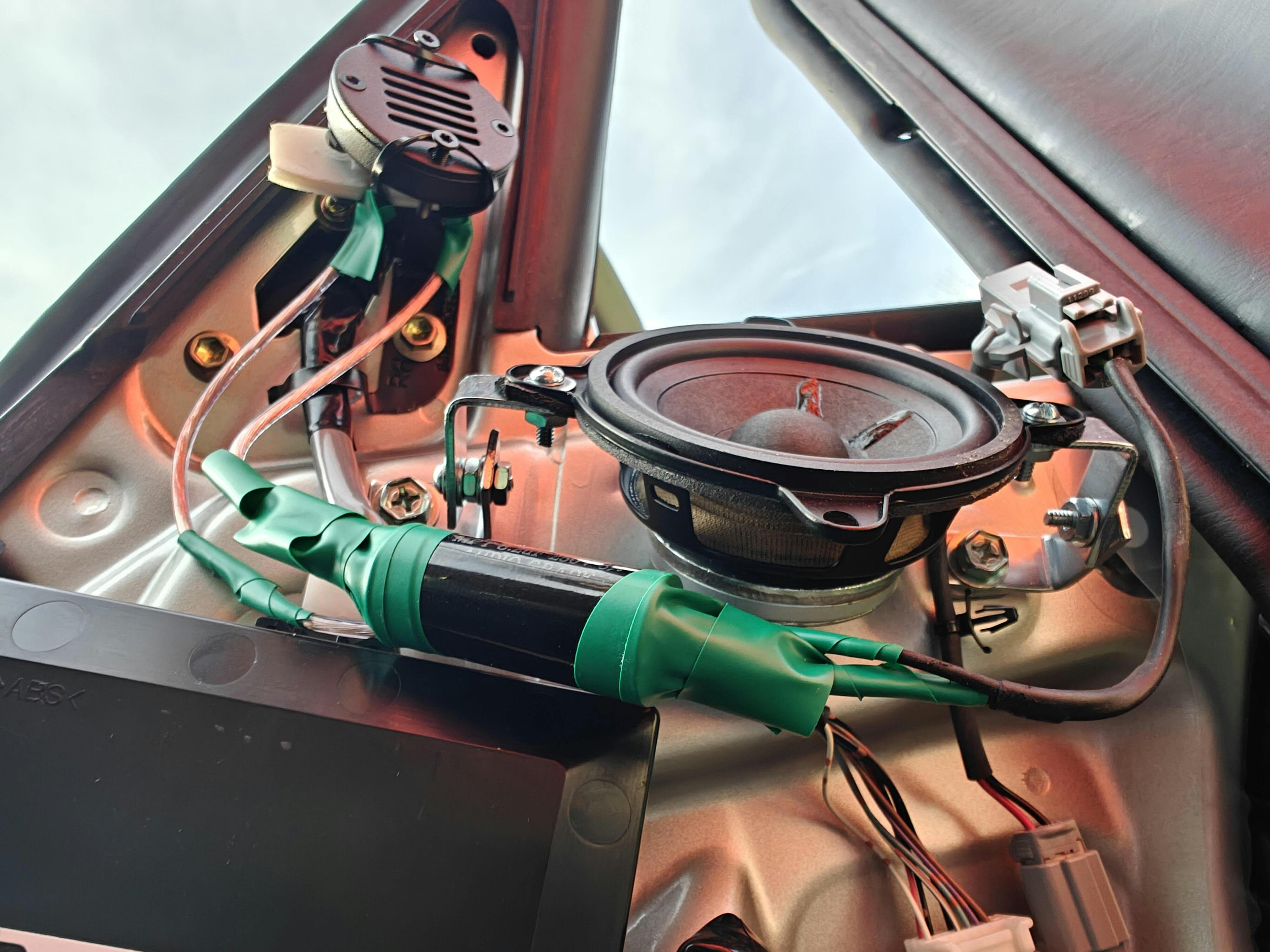

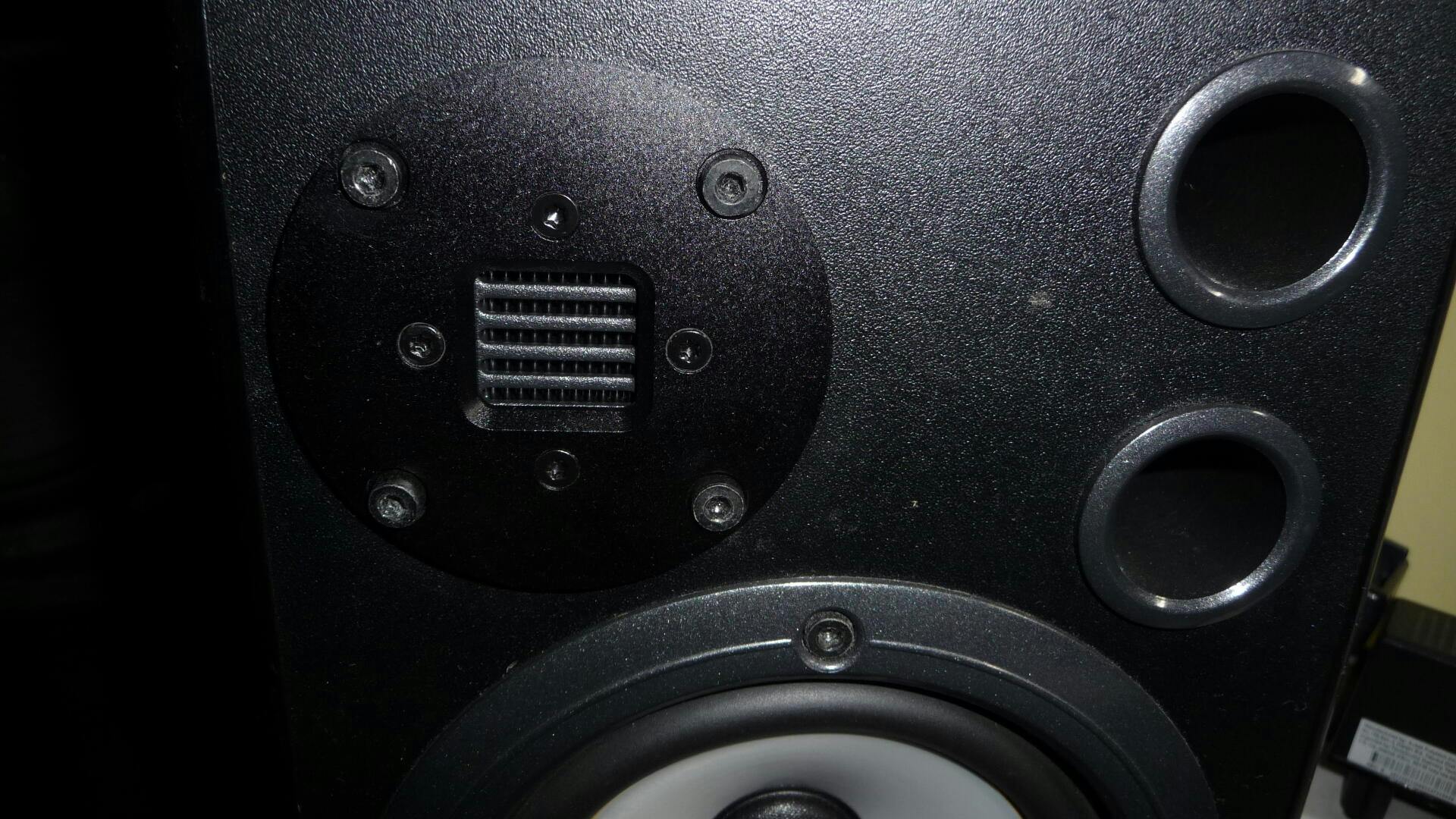

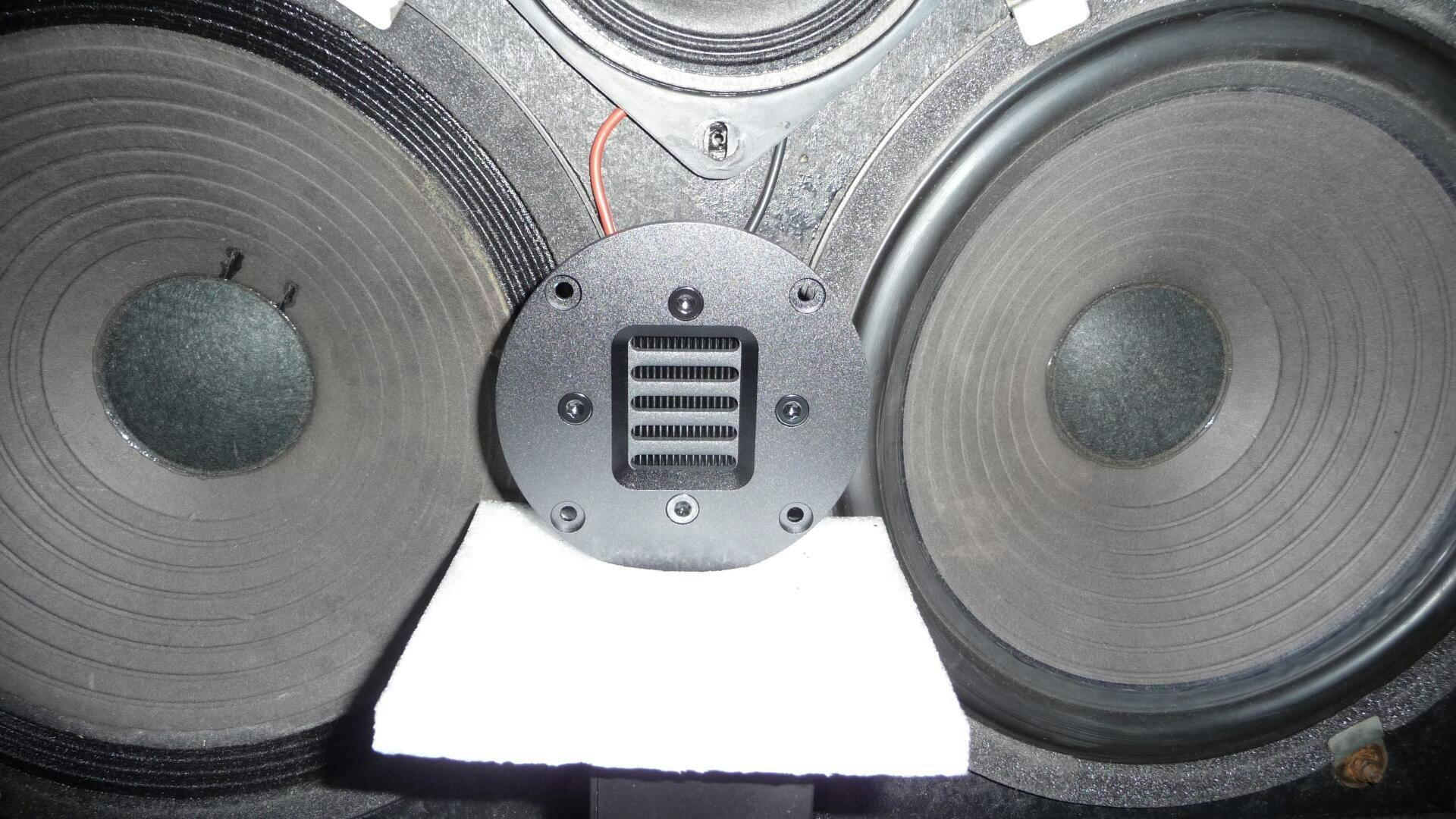

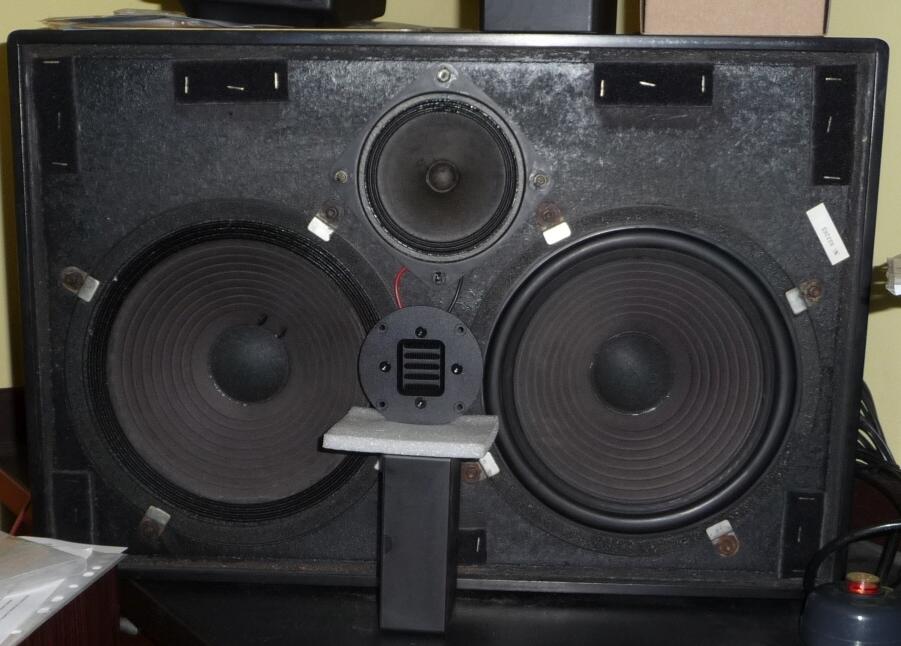

You can easily replace old tweeters or be integrated into new speaker designs to deliver exceptional audio performance by AMT-7 or AMT-9.
More Features
- Superior black film technology for better look and a clear, more transparent sound.
- Sonically best than the soft dome tweeter and the common yellow film AMT Tweeter.

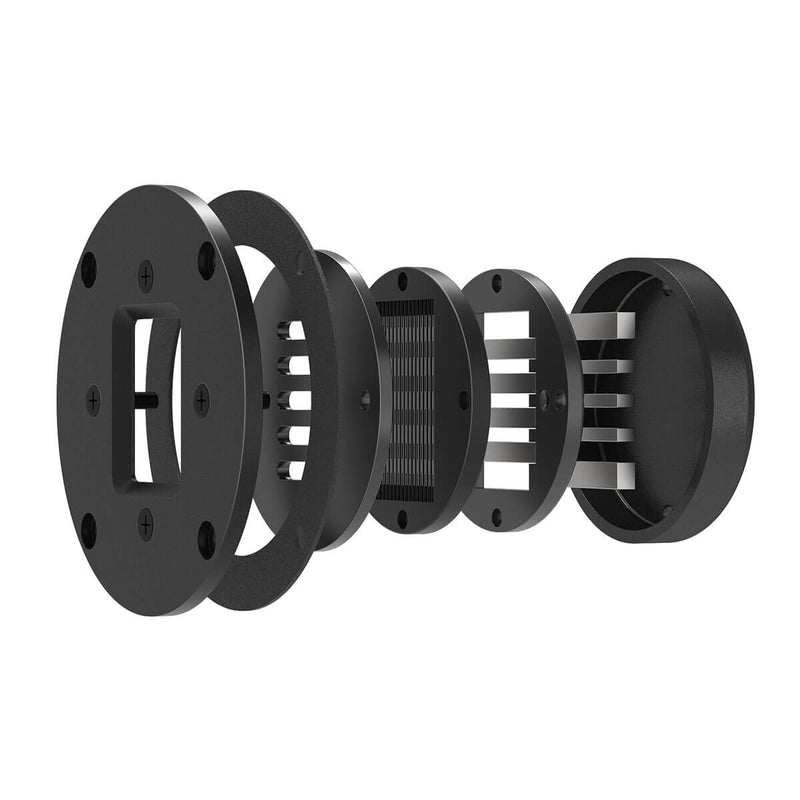

- Advanced AMT design "squeezes"air molecules instead of shoving or crushing them.
- Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output.

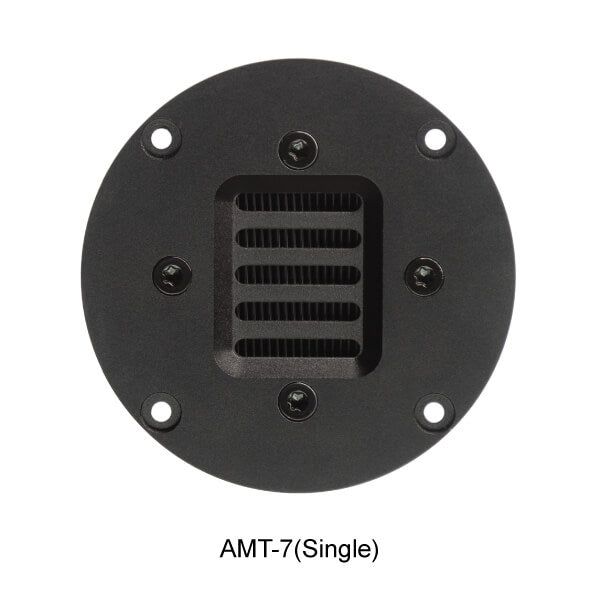

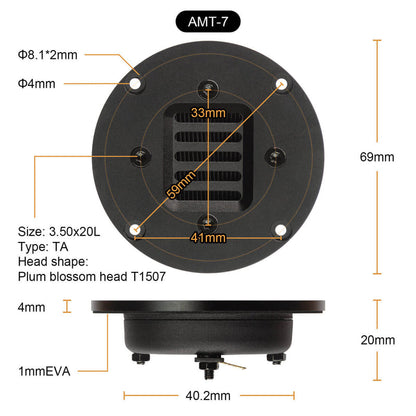

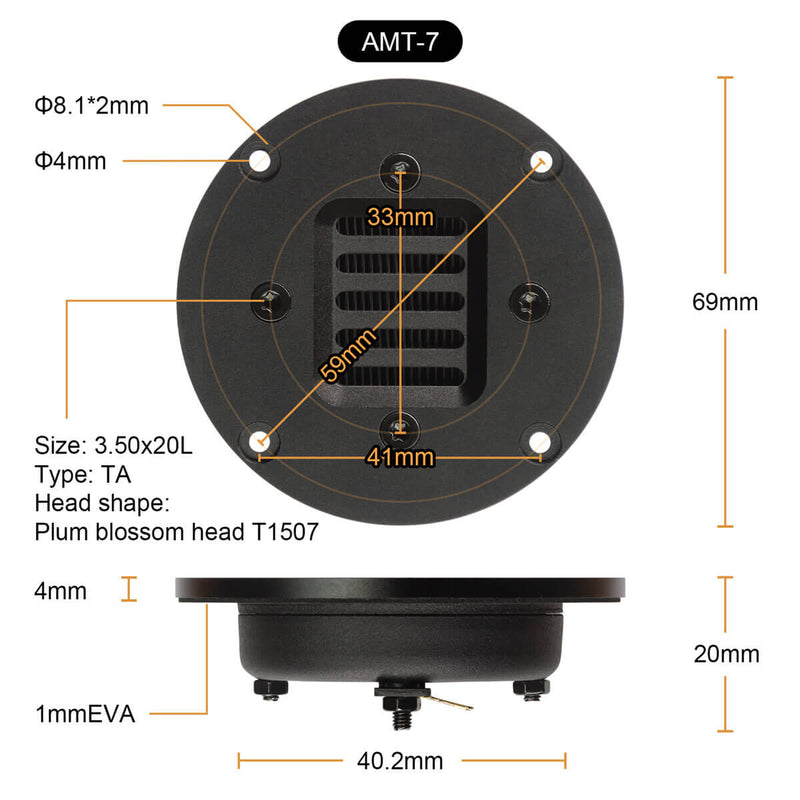

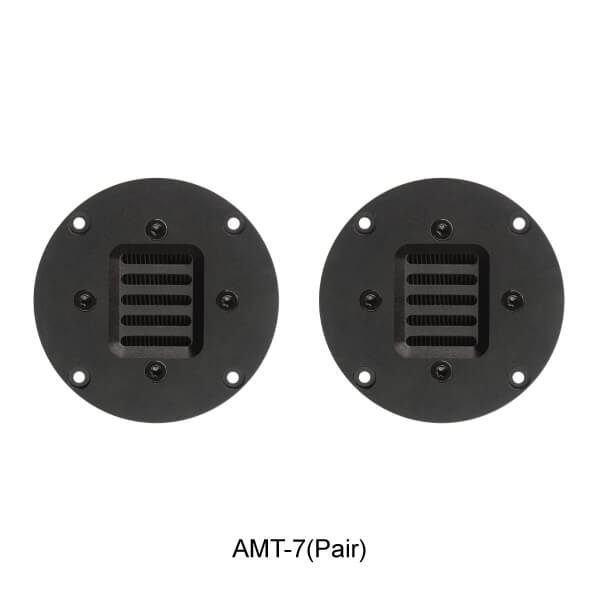

Specification-AMT7
Speaker
Rated Impedance
4Ω+0/-15%
Re
3.3Ω±10%
RMS Power
15W
Maximal Power
25W
Sensitivity
89dB±2.5dB
Frequency Range
3.3kHz-40kHz
Lowest Recommend Crossover
≥4.5kHz
Material
Front Panel Material
Aluminum
Diaphragm Material
KAPTON
Conductive Line Material
Alumium foil
Magnet Material
Alumium foil
Net Weight
88.5g/pc

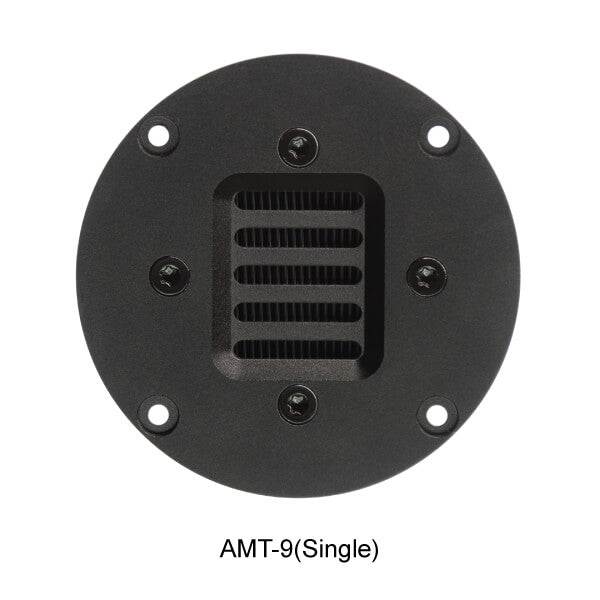

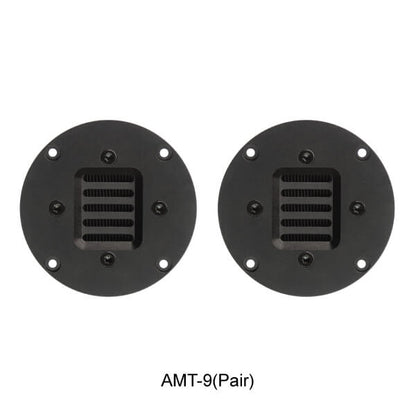

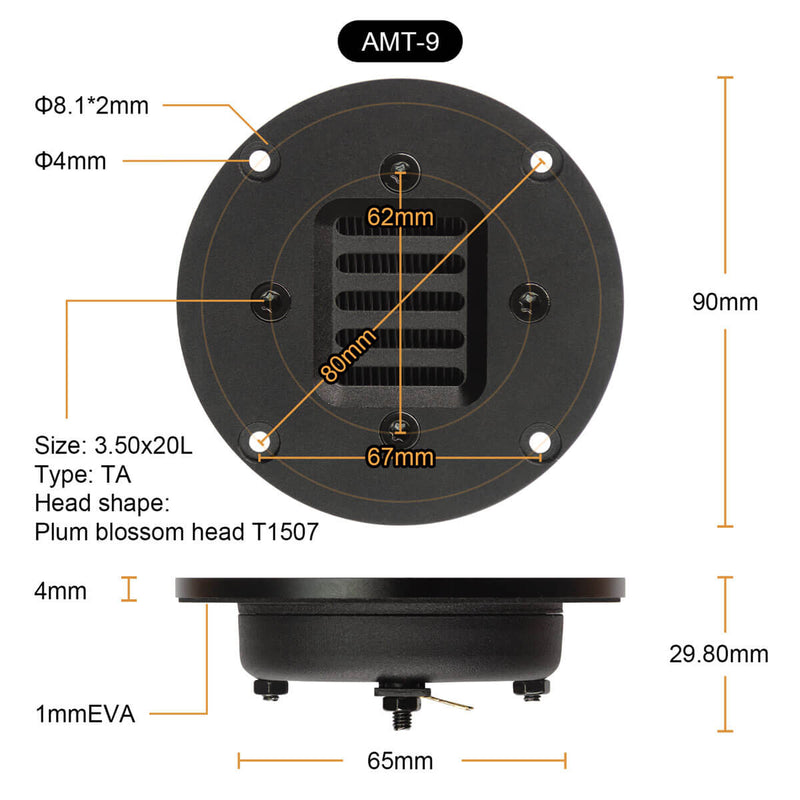

Specification-AMT9
Speaker
Rated Impedance
4Ω+0/-15%
Re
3.6Ω±10%
RMS Power
20W
Maximal Power
35W
Sensitivity
92dB±2.0dB
Frequency Range
2.3kHz-31kHz
Lowest Recommend Crossover
≥2.7kHz
Material
Front Panel Material
Aluminum
Diaphragm Material
KAPTON
Conductive Line Material
Alumium foil
Magnet Material
Alumium foil
Net Weight
280g/pc±10%

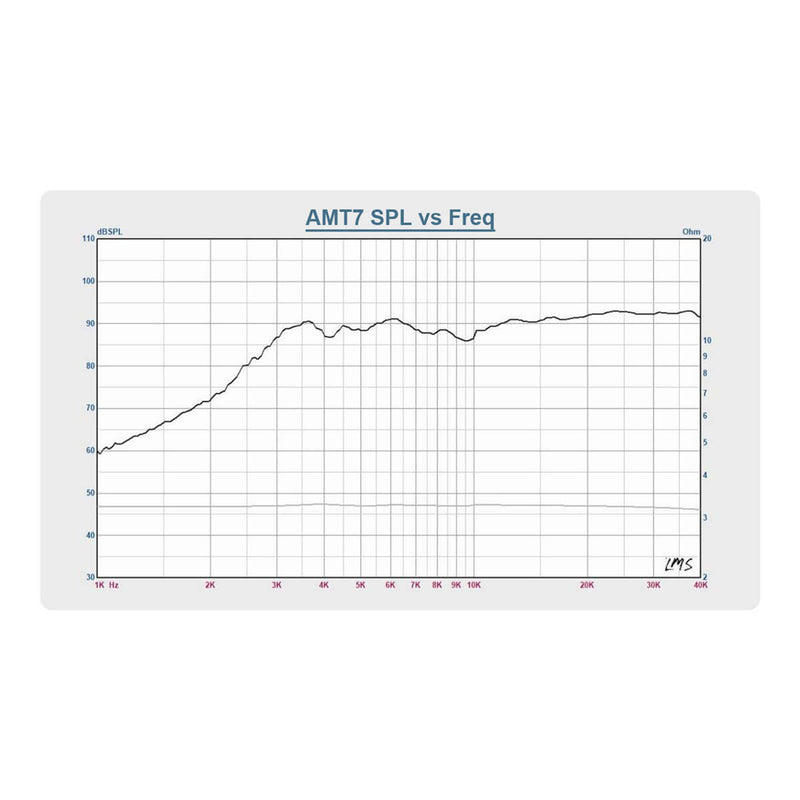

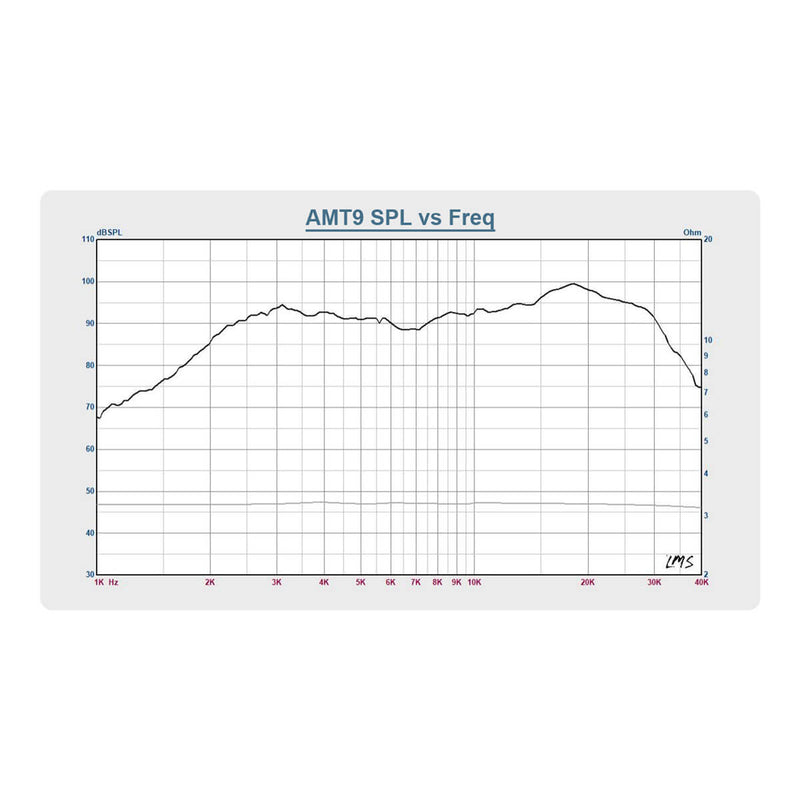

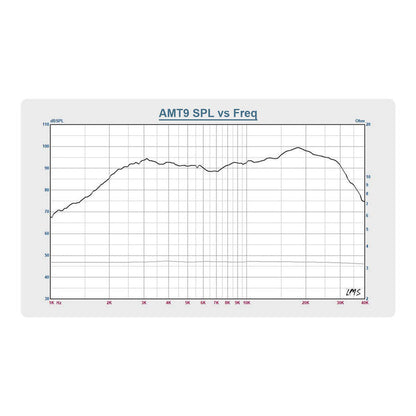

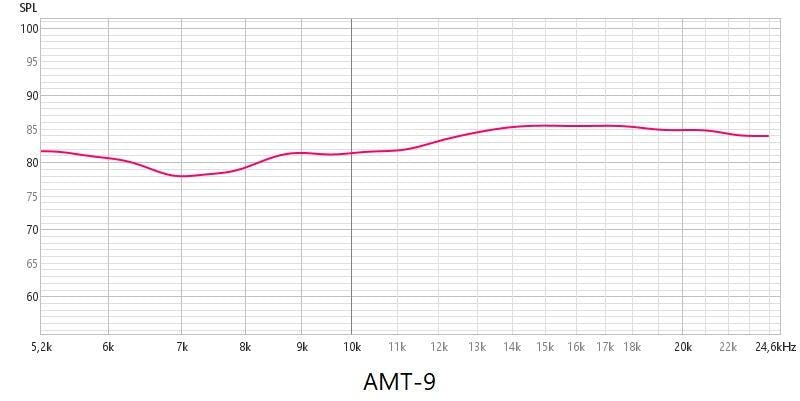

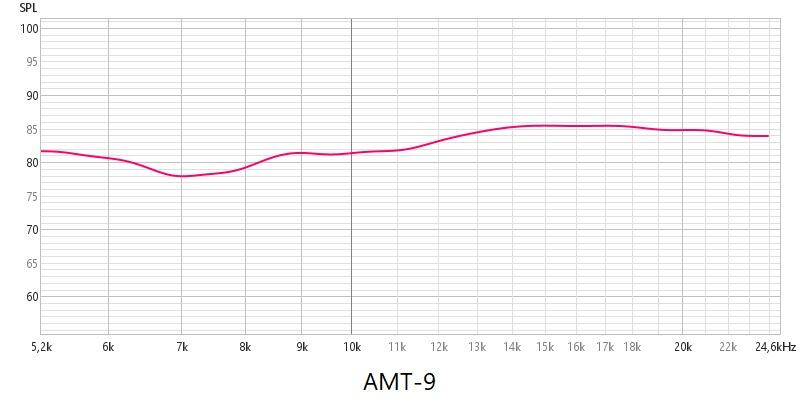

SPL vs Freq
