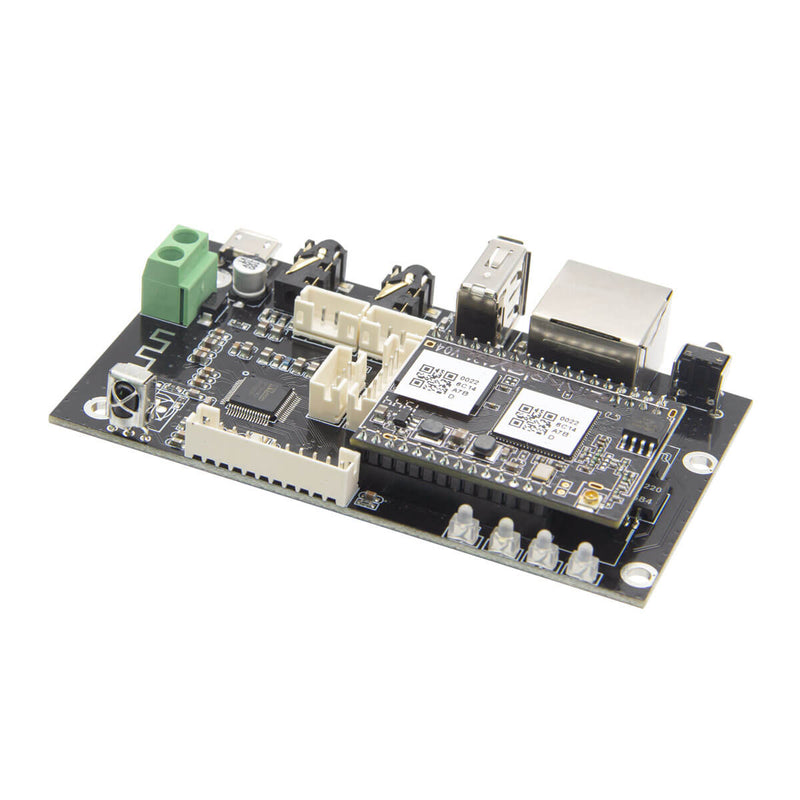

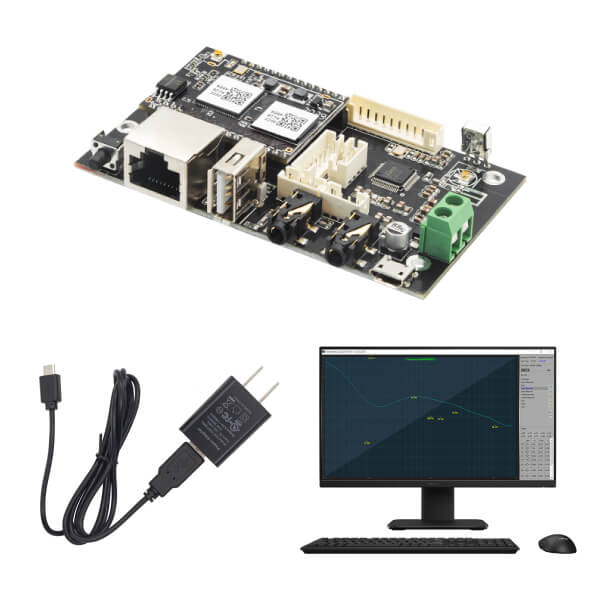

Up2stream Pro - Multiroom Wireless Receiver Board
Up2stream Pro - Multiroom Wireless Receiver Board
Free & Fast Delivery
Free & Fast Delivery
- Free Shipping Over $90
- Free Shipping in United States and Europe Union regions.
- $8.8 Shipping fee for other regions
- 3-7 business days to be delivered
For more, please refer to our shipping policy for more details.
30 Days of Free Return
30 Days of Free Return
30 Days of Worry Free Guarantee
- No Questions Asked: Return undamaged items within 30 days for any reason
- Full Refund Promise: 100% money back to original payment method
- Fast Processing: Refunds start when we receive your return
For more, please refer to our return policy for more details.
Hassle-Free Warranty
Hassle-Free Warranty
- What We Replace: Manufacturing defects within 1 year of delivery
- Fast Process: Replacement always, quick to get new one to use.
- Global Support: Valid for purchases from official channels
For more, please refer to our warranty policy
🎉Up2Stream is the new home for Arylic’s DIY products — click to explore.
In stock
Buy 3 Units, Get 5% Off
Buy 4 Units, Get 8% Off
Buy 5 Units, Get 10% Off
Final price calculated at the checkout🛒
Couldn't load pickup availability
✉️Any questions? Feel free to contact us
💰Share & Earn: up to 30% cashback. Learn More.
- Fast&Free Delivery
- 30 Days Returns
- 1 Year Warranty
A Range Of Options To Suit Your Design
-
Wireless Capability
- AirPlay
- Spotify Connect
- WiFi
- Bluetooth
- DLNA
- UPnP
-
Multi-room
- Sync audio in all rooms
- Play different songs at the same time
- Support available audio input souce for multiroom streaming.
-
Music Service
Spotify, Apple Music Amazon Music, Tidal, Qobuz, TuneIn, Internet Radio, Napster, iHeart Radio, Radio Paradise.
-
Lossless Audio
- Decoding up to 192khz/24bits, and output with CD quality.
- Support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.
-
Local Music Source
- Support phone storage, NAS, and USB stick.
-

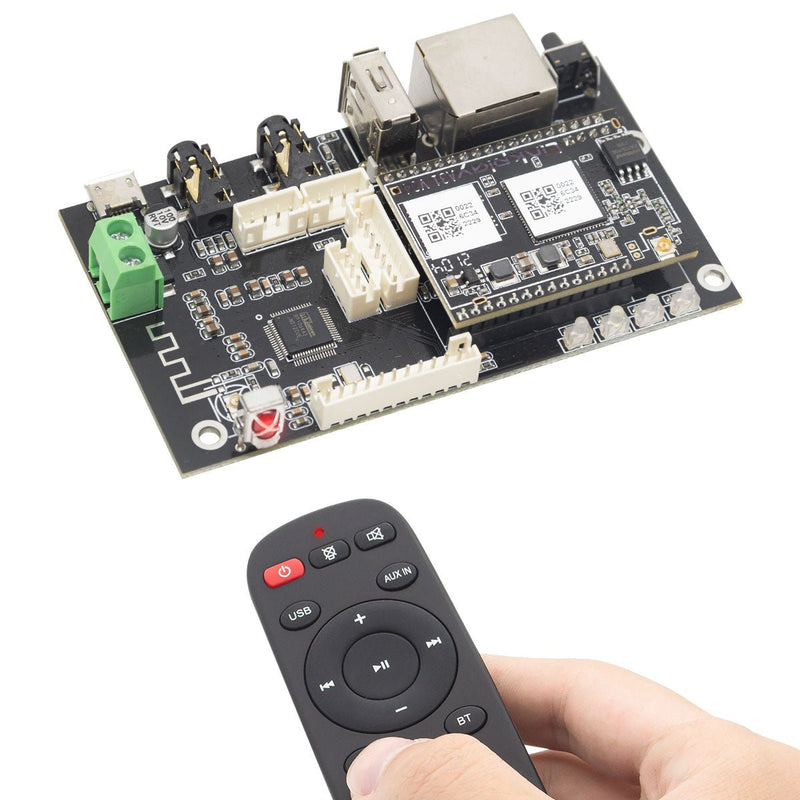

Optional Remote Control
Easy to control your music playback from a distance.
-
4STREAM APP
- Support phone storage, NAS, USB stick.Free iOS & Android APP
- Manage all Up2Stream streaming devices in one APP
- Full multiroom control
-
Wired Network
Up2Stream Pro features an RJ45 Ethernet port for a more stable network connection.
This allows you to directly stream music from your smart devices without having to go through the WiFi setup process using the app.
Specification
Connectivity
WiFi
IEEE802.11 b/g/n 2.4G
Bluetooth
5.0 SBC/AAC, 15M, BT Receiver
Wired Network
Ethernet Single 10/100M RJ45
Protocols
AirPlay, DLNA, UPnP, Spotify Connect, Qplay

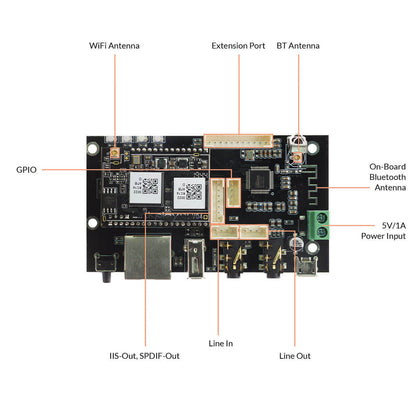

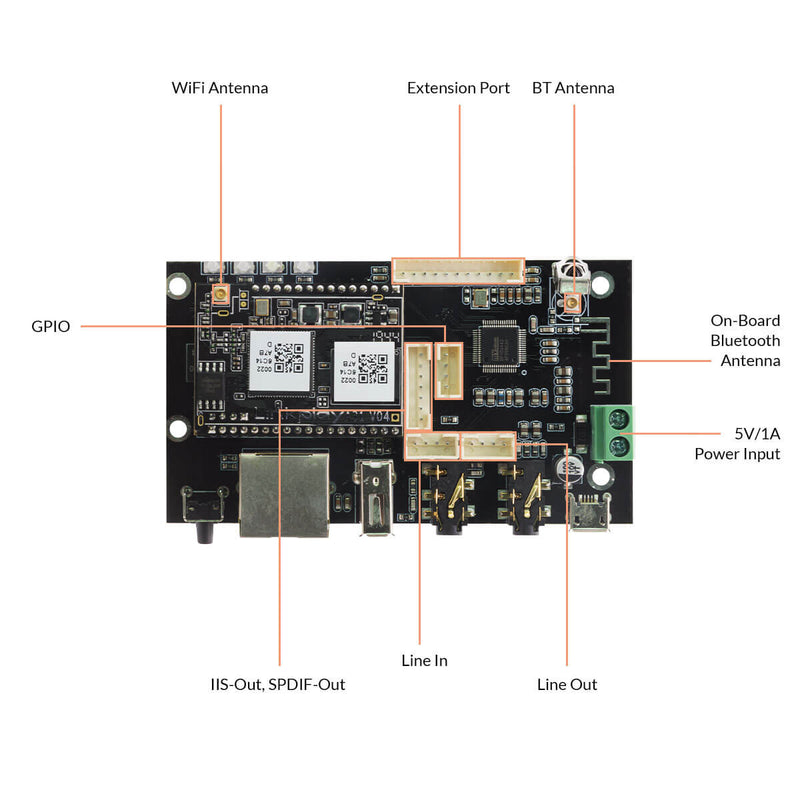

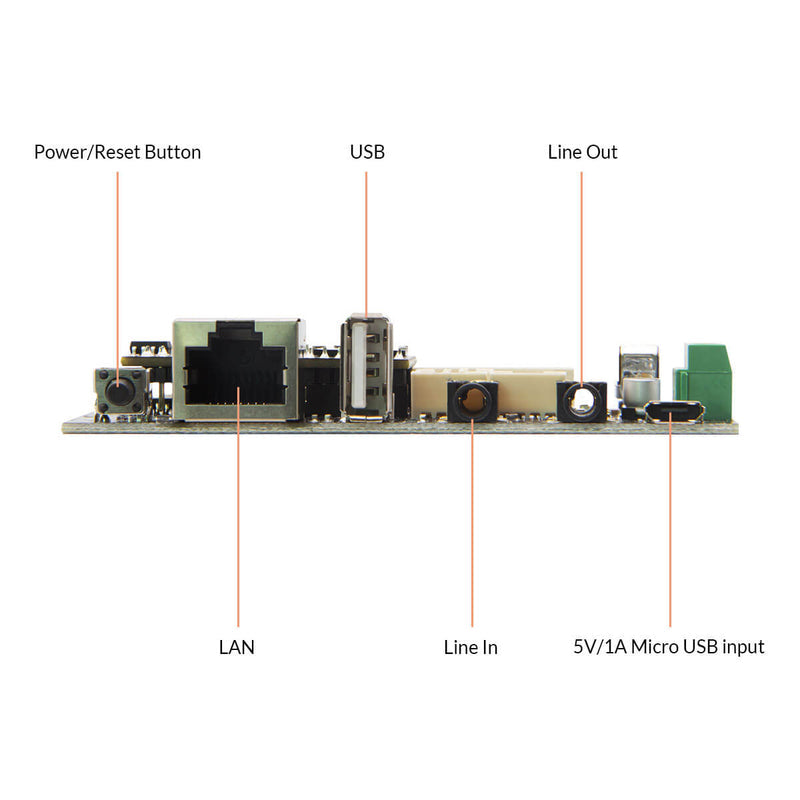

Interface
Power Input
5V-1A 2 pin connector
5V-1A Micro USB input
Analog Input
3.5mm Line Input (1 Vrms)
4 pin connector Line Input (1 Vrms)
Analog Output
3.5mm Line Out (1 Vrms)
4 pin connector Line Out (1 Vrms)
Digital Input
Micro USB Input
Digital Output
I2S Out,
*②SPDIF Out (44.1KHz)
Sound
Audio Format
Decoding up to 192khz/24bits
Output up to 44.1khz/16bits CD quality
Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
NAS
Support NAS with DLNA support
SNR/THD+N
91dB/0.03% @ 0dBFS, 1KHz
USB Host
For USB pen drive/stick, 1000 songs limited.
Frequency response
20Hz to 20kHz
General and Accessory
Dimensions
87.6*49.6*15mm
Weight
200g
Working temperature
0~40℃

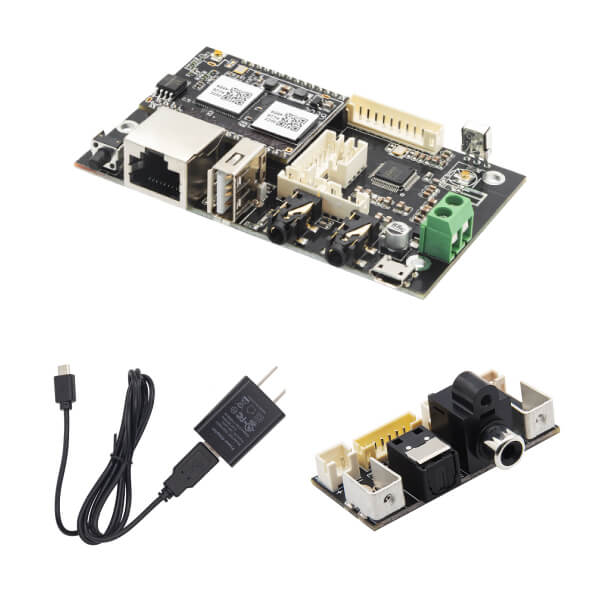

Acessory
220mm Internal WiFi Antenna
4Pin 220mm PH2.0 Cable
7Pin 220mm PH2.0 Cable
2Pin 220mm Power Cable
User Manual
Power Button and LED Indicators
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)；
Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings
Device off:
Short press: Switch on

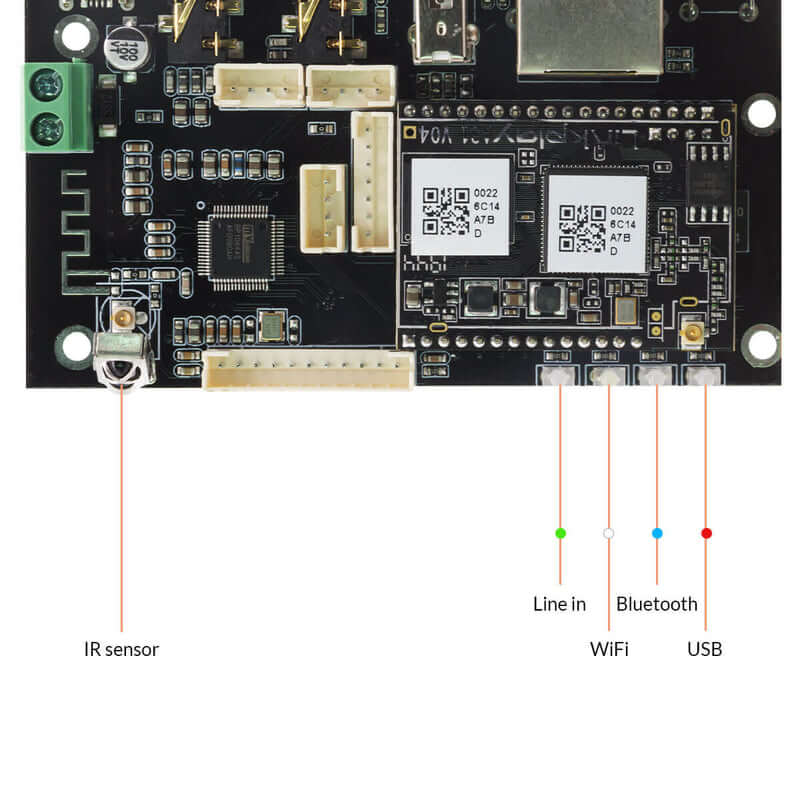

LED Indicators
⚪White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
🔵Blue-Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected
🟢Green-Line in mode
🔴Red-USB mode
🟡Yellow-connect to PC
Control In Your Favorite Way
-
AirPlay
Play and control from your iPhone, iPad or Mac directly. Support streaming directly from iTunes.
-
Bluetooth
Flexiable to play from any audio sources from Bluetooth, like YouTube, Netflex, Tiktok or more.
-
4STREAM & GO CONTROL APP
Fully control with music service, multiroom, source switch, volume control. Change WiFi, Bluetooth name.
-
Web Control
listen to the radio and your favorite playlists easily via web browsers.
-
DLNA/UPnP
Support 3rd party app for playing by DLNA or UPnP protocols. Like Musicbee and Foobar2000.
PC Sound Card
Once you connect the Up2Stream Pro to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2Stream Pro. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.
10 band EQ
Use GO CONTROL APP for 10 band advanced EQ control, and custom as you like. Apply on all your audio sources.
Tune Like An Expert
ACPWorkbench Tuning Tool is an advanced tuning tool that you can adjust specific EQ for each channel and switch pins configuration.
Plug and Play
- With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started.
- This makes it incredibly easy and user-friendly for anyone to use.
Enhanced Up2Stream
The Up2Stream Pro offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2Stream SPDIF out board, Up2Stream Button Board, Up2Stream ESS9023 DAC Board, Up2Stream IR Extension Board, and Up2Stream Volume Knob Board. You can find all the boards in Accessories.
Smart Home Assistant Integration
The Up2Stream Pro offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications.
Get API files below and check the cases in our forum.

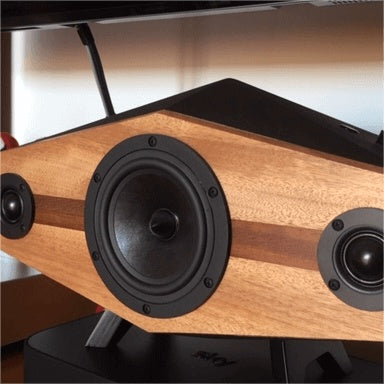

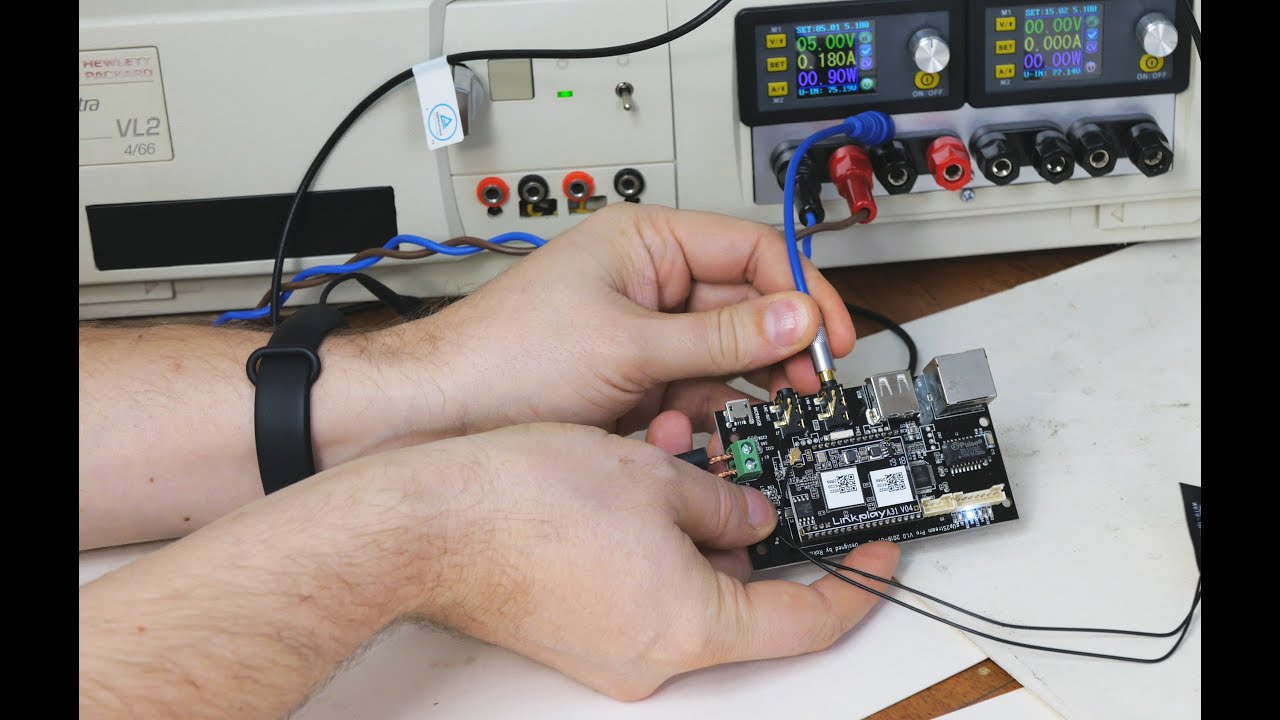

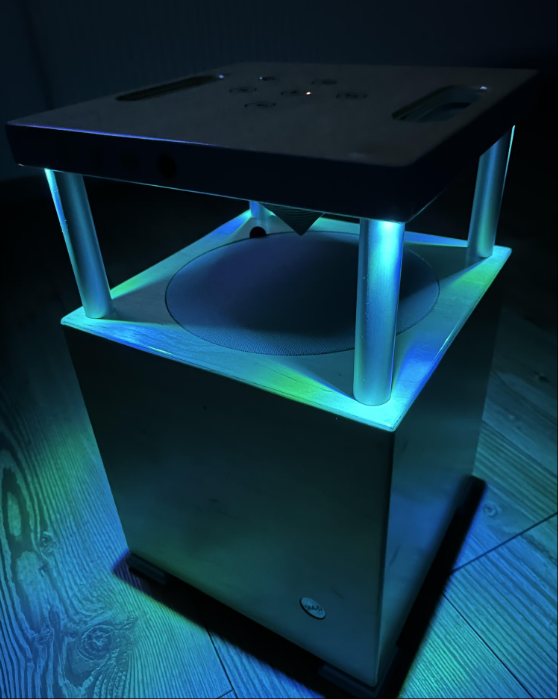

Build Your Wireless Projects
Compatible Accessories
-
ACPWorkbench Tuning Tool
Regular price $20.00 USDRegular price -
Power Adapters
Regular price From $5.00 USDRegular price -
IR Remote Control
Regular price $10.00 USDRegular price -
Expansion Boards
Regular price From $10.00 USDRegular price -
Case of Up2stream Series
Regular price From $7.90 USDRegular price
FAQ

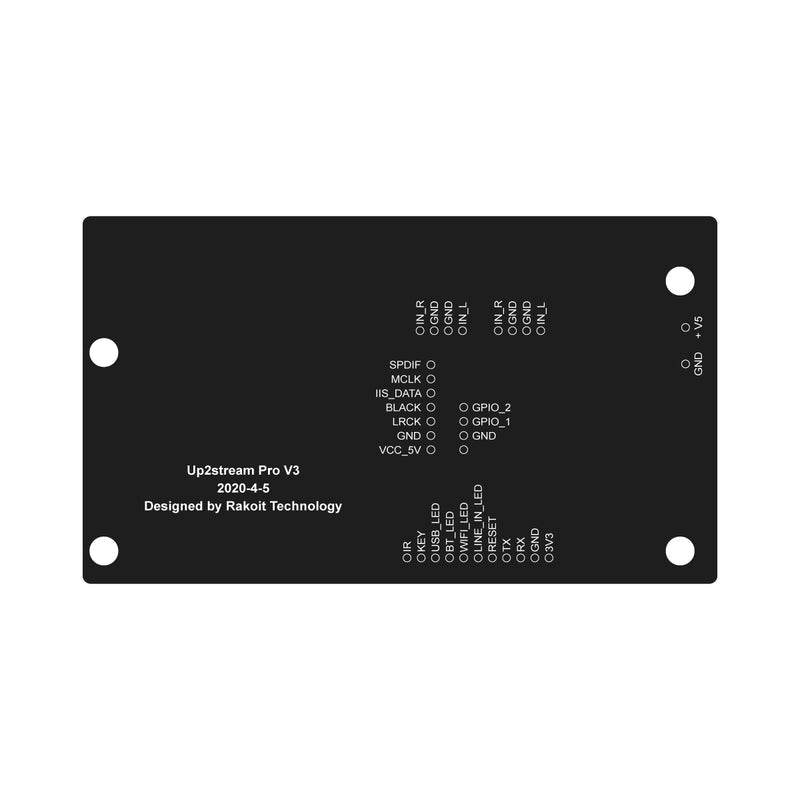

Can Up2Stream Pro connect to my own DAC?
Yes, just connect the correspond pins to your DAC
You need to connect IIS_DATA/LRCK/BCLK/MCLK/VCC_3V3(5V)/GND
Is there a connection for triggering a relay to switch on/off an external amplifier?
Yes. but need to use our dsp tool ACPWorkbench Tuning Tool to define the GPIO to work as relay.
Can I stream from YouTube ?
Yes you can stream YouTube by AirPlay or Bluetooth.
How can I stream from PC wirelessly?
You can use any software that supports Airplay, DLNA or UPnP protocols. Such as iTunes, Muiscbee, Foobar2000 etc.
Can we listen to a radio with a personalized link? If yes, how ?
Yes, this is available. There are 2 ways you can do this.
1. 4STREAM APP> Internet radio> Click on the menu icon on the top right corner.>You should see a "Custom URL" button, then you can put in your link there and listen to the radio that URL points to.
2. Entry web control>Radio>register your account>my station
Can a Google Home stream to this over wifi?
Currently , Up2Stream Pro only support connecting Google Home or Alexa via Bluetooth or line in.
Customer Reviews
Sounds great

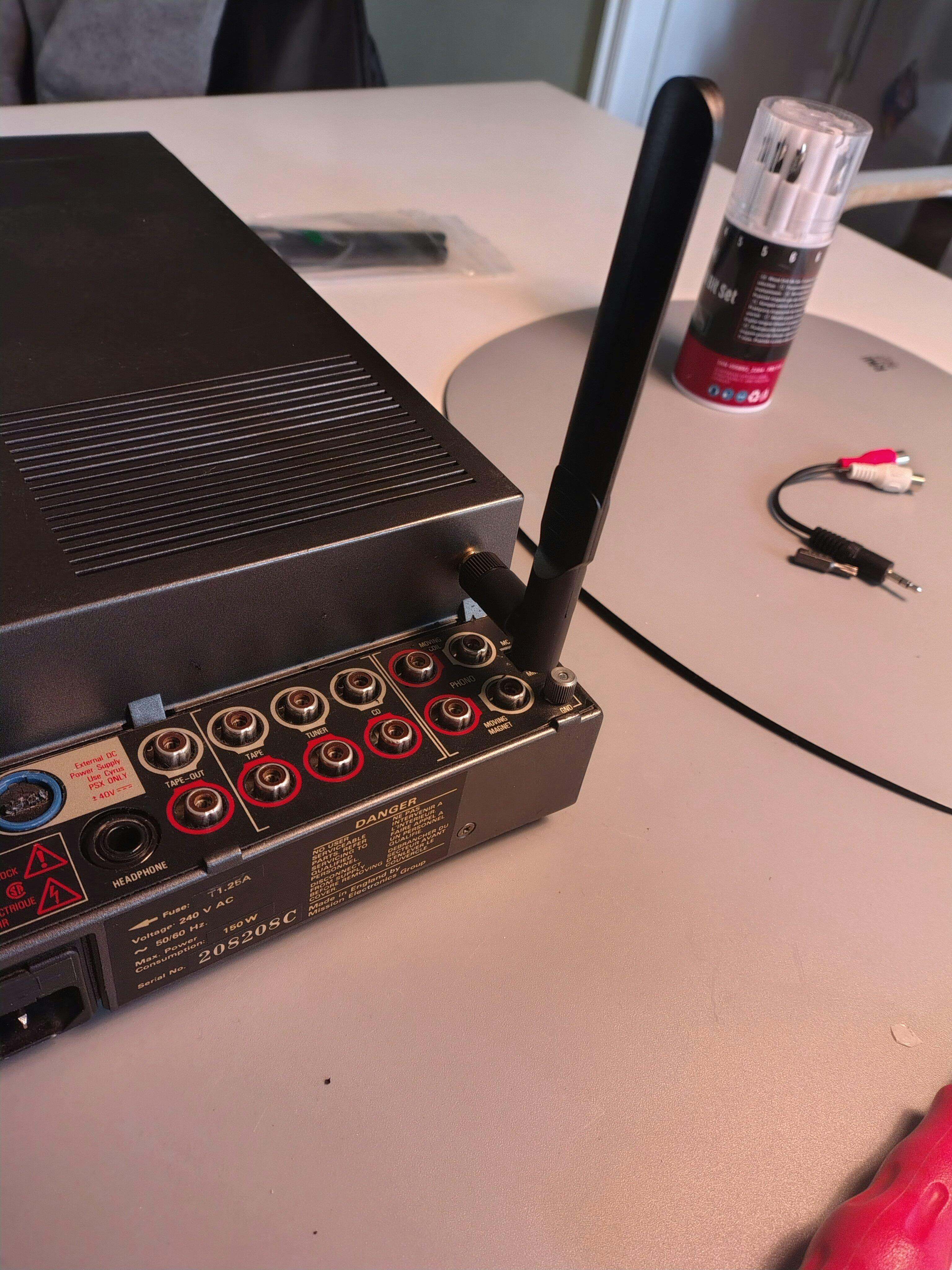

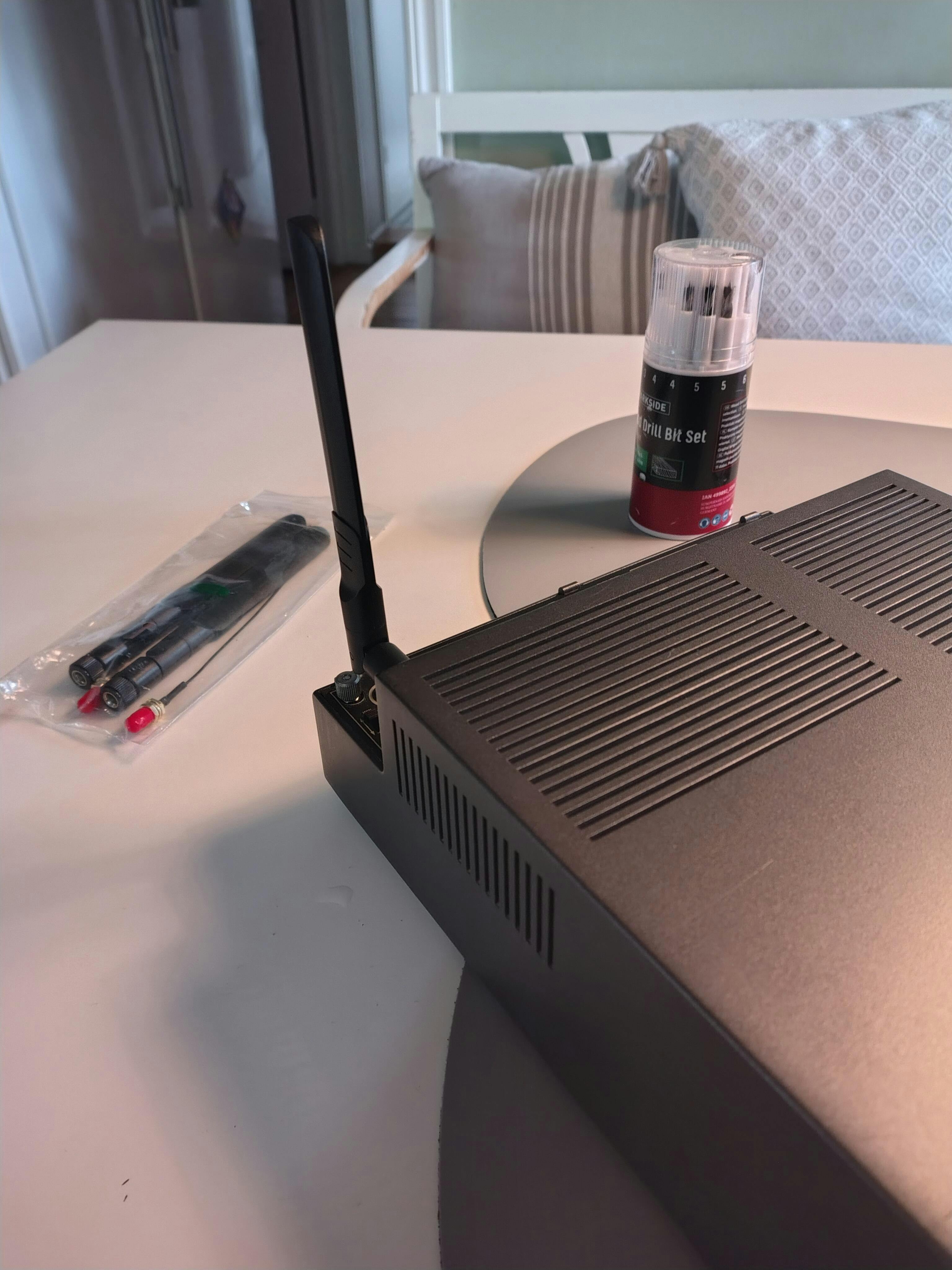

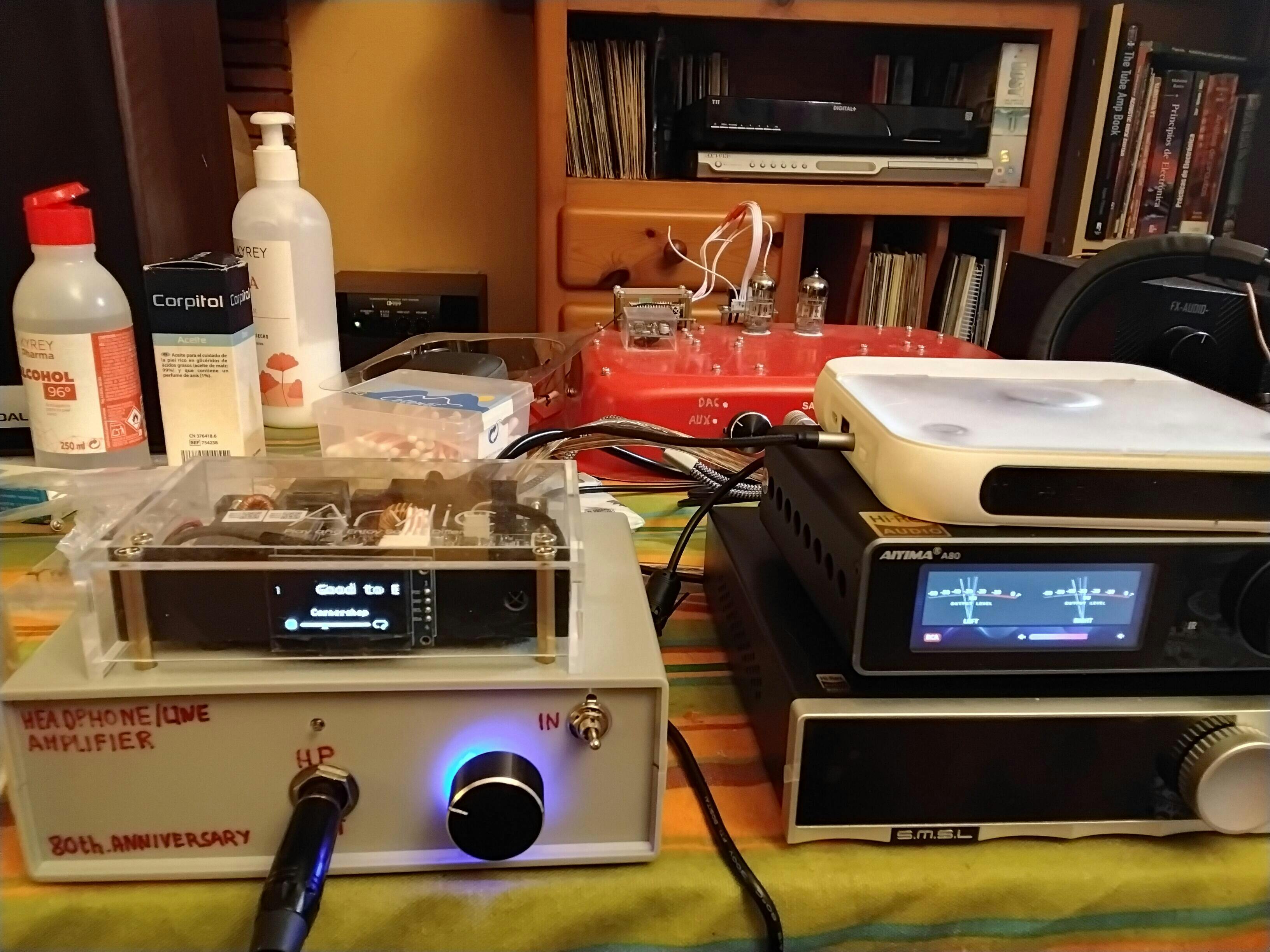

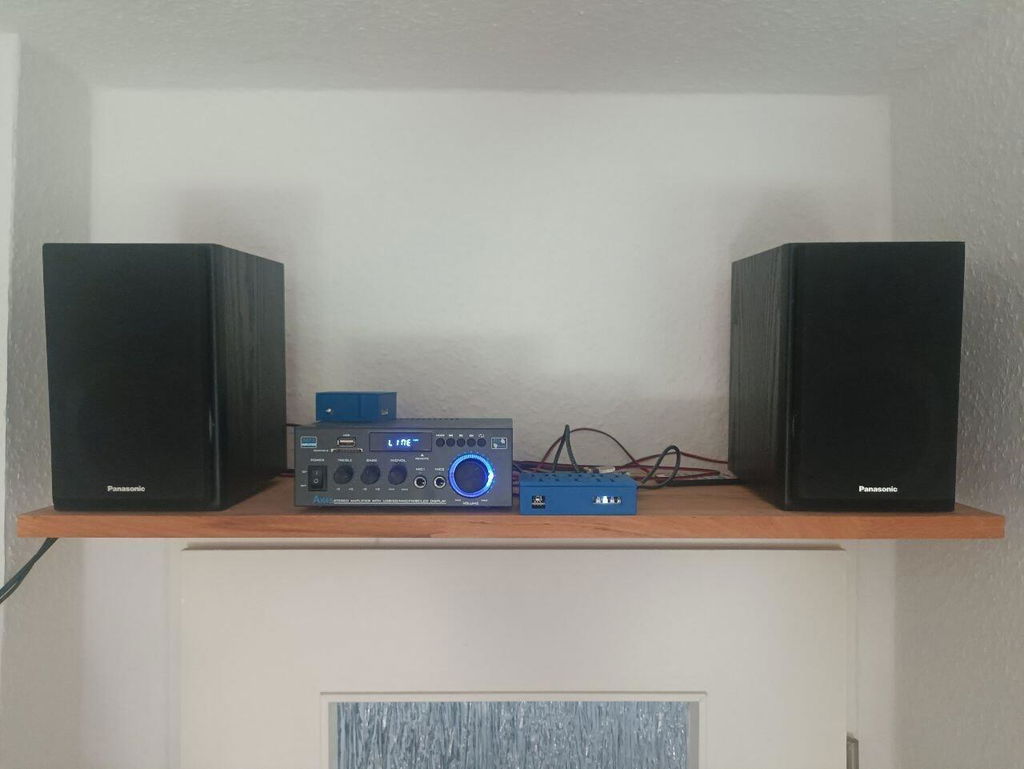

Using a upstream2 pro and the dac board i an cyrus two from 1986, sounds better than my quad Vena 2 play from 2023...
Recommended!!
Everything works well except when hitting my persistent library, my owned music that resides inside my micro card. Once pressed the app freezes and I have to close the app and restart. Streaming Spotify or Tidal works fine. I left a feed back on the app but no one had returned an answer. This is done on wifi and with my cell phone.
P.s. what I do find interesting is when I link the up2stream pro to the Wiim Ultra , I can access my music pressing my music on wiim app while using the up2stream pro. Mind boggling since both are connected to different receivers.
I really love the ease of use and the simplicity of the Up2Stream Pro. I have three Knoll MR1250a amps (with 6 zones each) located in an electronics closet in the attic. These were with the house when we bought it and I didn’t want to spend a ton of money overhauling every part of the system. Each zone is a pair of speakers. There are 18 total zones. As a feasibility test, I have started with 5 Up2Stream Pro boards to bridge several zones together and stream music or nature sounds around my property, at the pool, and inside the house. The boards are all attached to my network via Ethernet cable to my network switch. All outputs are 3.5mm jack to RCA L/R cable connected directly to the channels of the amplifiers. All power comes from a 20 port USB charging hub with a single plug to 110v power. All power for the amps and boards is provided through WiFi controlled outlets.
They are very ease to figure out, deploy, and use. In the app, They can be a little finicky at times, but overall work well. The app leaves a bit to be desired. Controls are very basic. My biggest gripe is that there is about a 3 second delay from mobile device to the output of the board. This means that when watching any kind of video with audio, the audio will not be synced with the video. Quite frustrating. The delay can also be frustrating when streaming audio from a mobile device, but I guess it’s just something that has to be lived with.
Even with the bare-bones app and the significant audio delivery delay, I think these are an awesome solution to buying a $500 receiver with only 6-8 zones. To run my setup would require at least 3 of them totaling at least $1500. The up2stream pro provides more control and versatility to large applications at a far better price point- 18 zones for less than $900.
The Arylic Pro V3 is an excellent streaming board, combined with the external DAC, the sound is absolutely amazing
