A Range Of Options To Suit Your Design
-
Powerful Midbass
- powerful midbass speakers for your house party, movie time.
- optional 50W/60W 4ohm
-
Deep Bass
- 39Hz-5kHz natural and rich bass, effortlessly reproducing delicate midrange and bass.
-
S-type Paper Cone
- The S-type paper cone enhances rigidity and minimizes acoustic losses, makes sound waves travel farther.
-
Glass Fiber Cone
- New optimized Glass Fiber Cone Design for Low Distortion and High Efficiency.
-
Various Sizes
Optional 5" and 6.5" big midbass
-
Qualitified Design
- Our innovative vent design for the mid-bass speakers enhances heat dissipation, improves efficiency, and prolongs the speaker's lifespan.
- Our innovative vent design for the mid-bass speakers enhances heat dissipation, improves efficiency, and prolongs the speaker's lifespan.
-

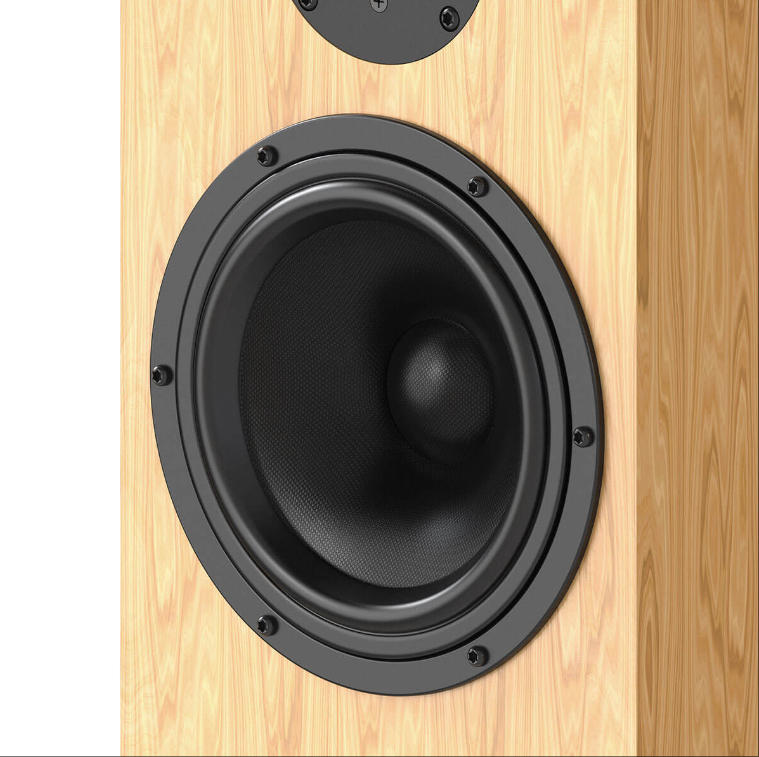

Easy to install
Easy to install and full sealing with already mounted EVA.
-
Reducing Audible Distortion
Rigid steel chassis with extensive venting for lower air flow speed, reducing audible distortion.

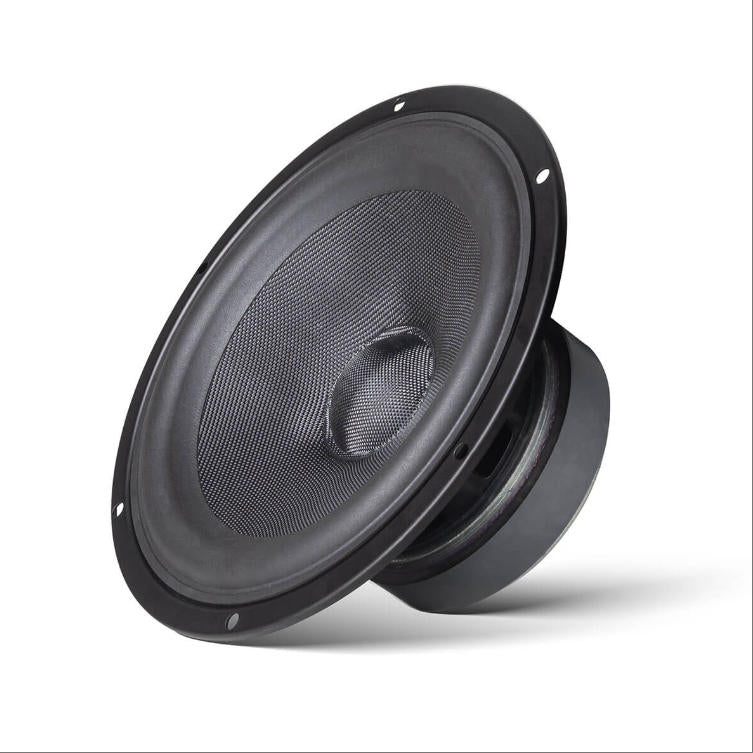

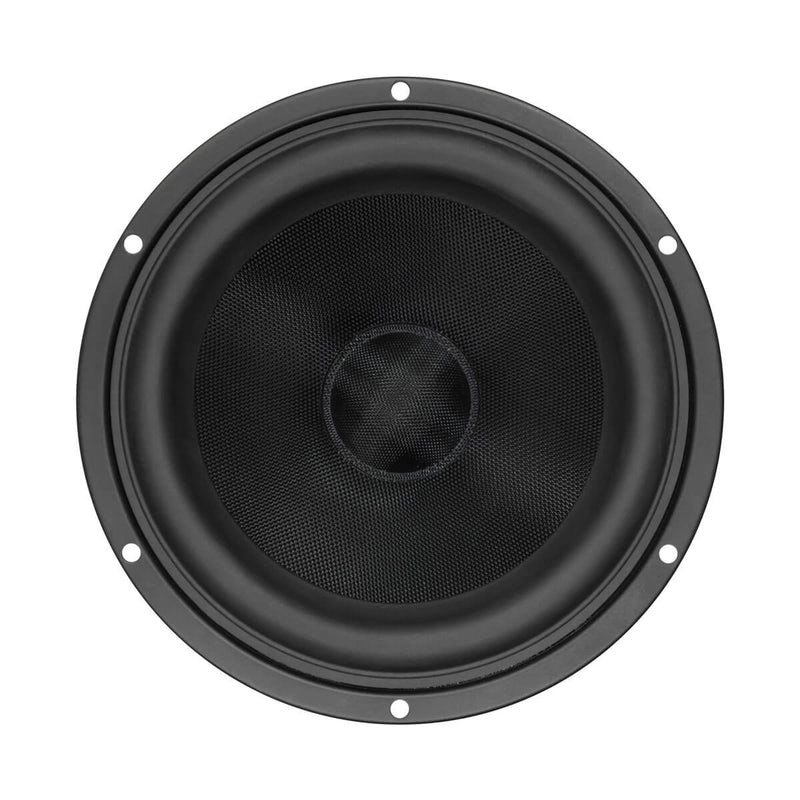

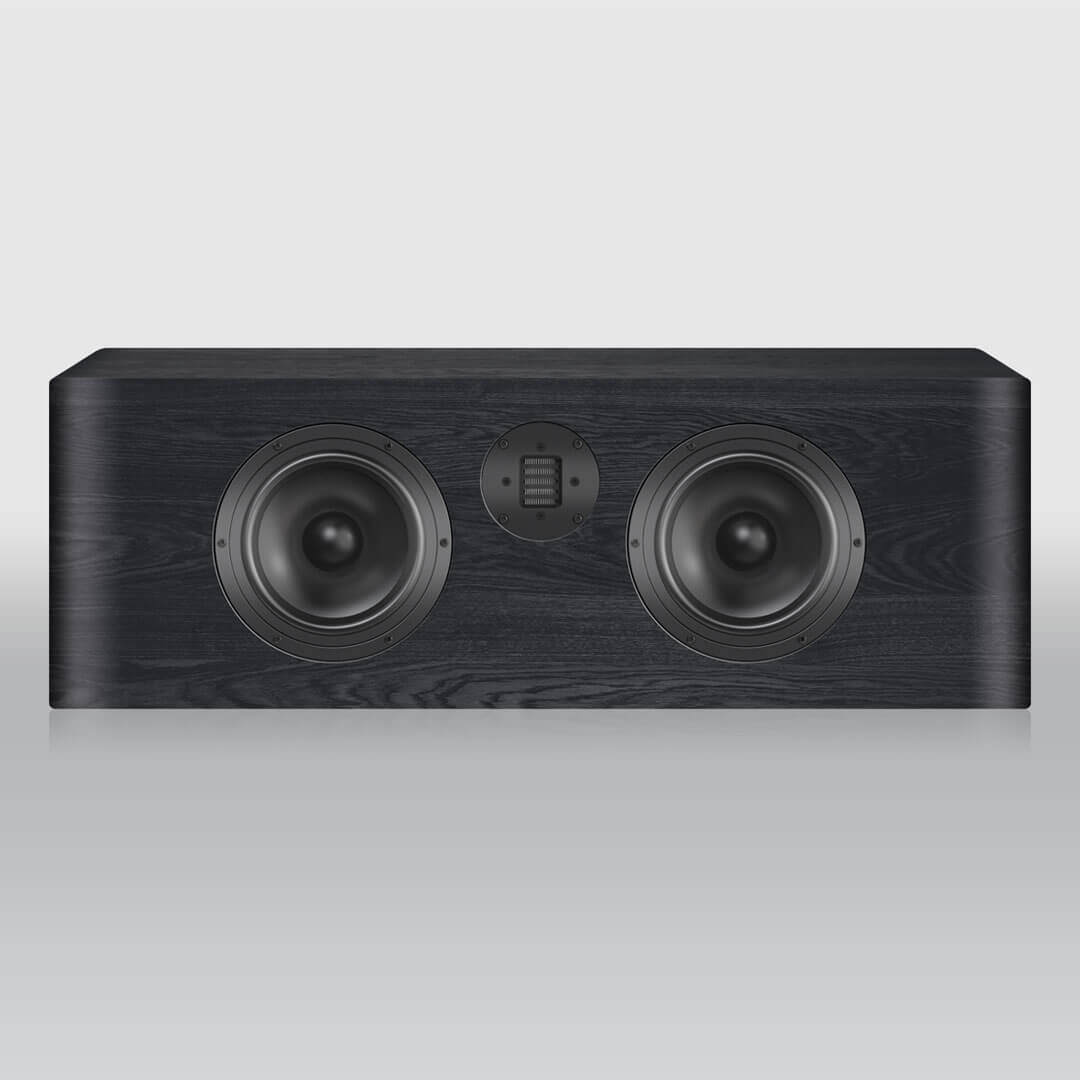

About the Midbass

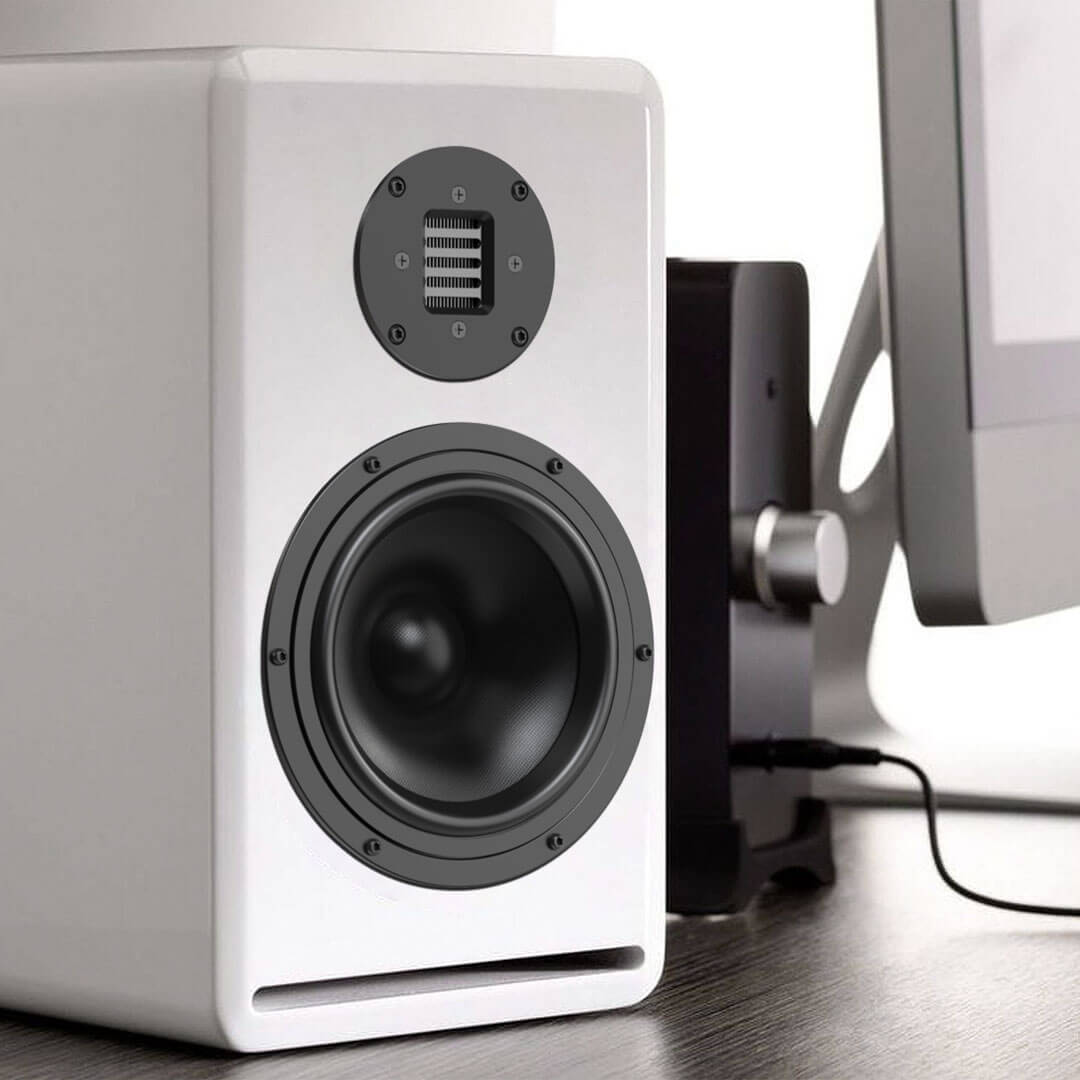

The well-rounded designed of the midbass speakers can be easily applied to your new 4 ohm speaker project, use with Bluetooth amplifier for wired speakers replace old midbass speakers, or upgrade your speaker components.
Whether you're watching a movie or having a house party, it can bring you a stunning midbass experience.

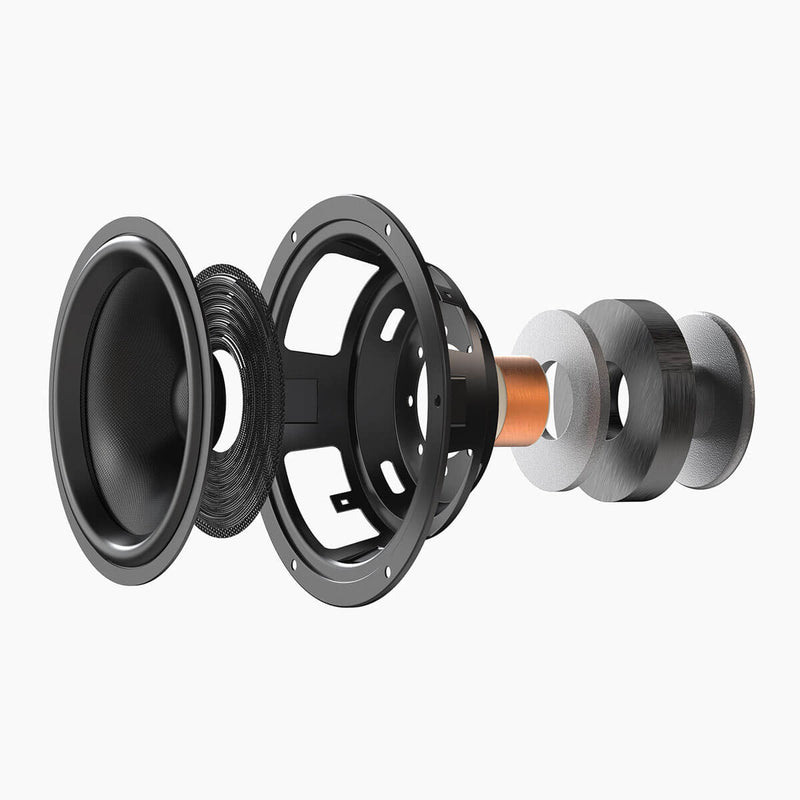

We have also made many innovative designs in terms of sound: such as glass fiber cone, rigid chassis, S-type paper cone, vented center pole, and more.
These designs reduce distortion and attenuation of sound, make sound waves travel farther,improve sound performance, and increase the speaker's lifespan.
You can enjoy stunning bass without worrying about harsh sounds, and even low-volume playback can deliver clear and delicate sound.
More Features
- Vented center pole with dual flares for reduced noise levels at large cone excursions.
- Heavy-duty fiberglass voice coil former to reduce mechanical losses, resulting in better dynamic performance and low-level details.
- Large motor structure for better control and power handling.
- Built-in aluminum field-stabilizing ring for reduced distortion.

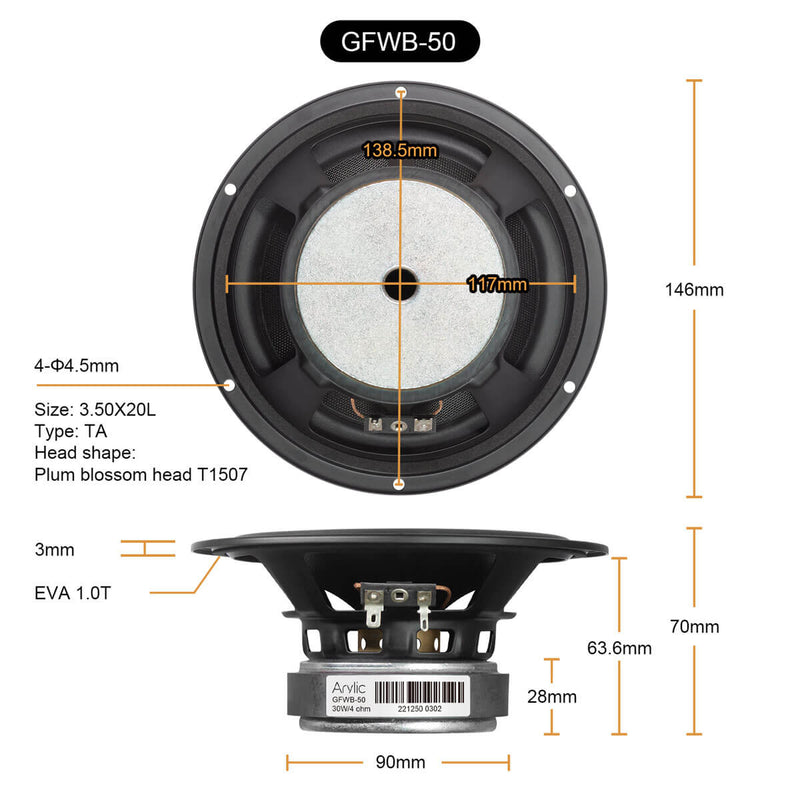

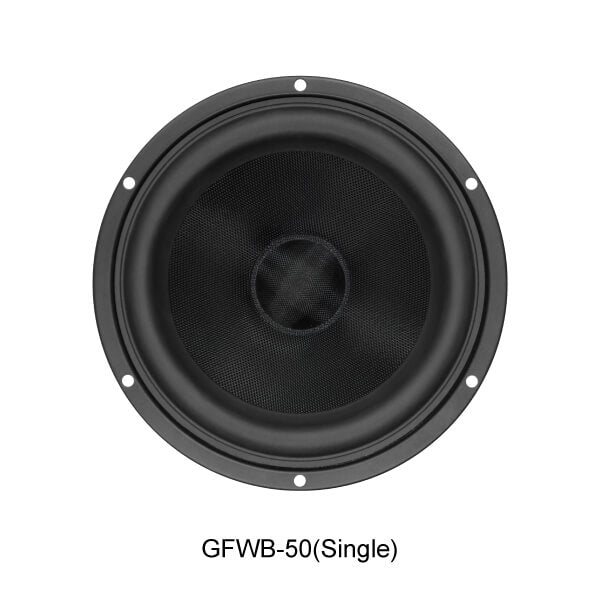

Specification-GFWB-50
Speaker
Rated Power Input
30 W
Maximum Power Input
50 W
Nominal Impedance
4.0±15% Ω
DCR Impedance
3.1±10% Ω
Sensitivity 1W/1M
84.5±3 dB
Frequency Range
46-6K Hz
Free Air Resonance
46±20% Hz
Qms
10.338
Qts
0.4
Qes
0.416
Vas
11.171 L
Material
Dome material
Glass fiber+ rubber
Magnet Material
Ferrite
Size
Mounting Depth
66 mm
Mounting Diameter
119 mm
Voice Coil Diameter
32mm

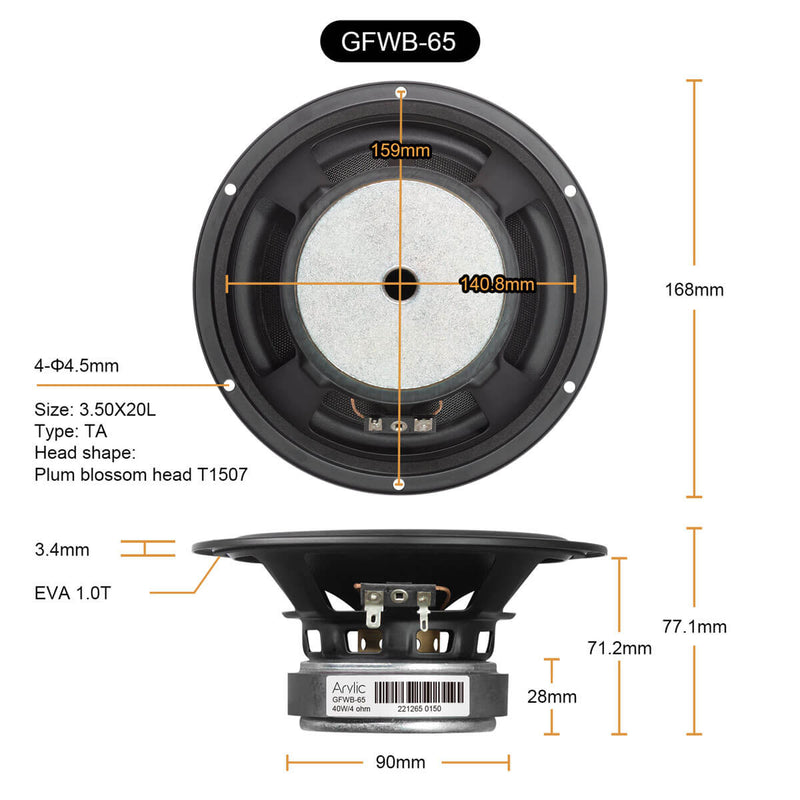

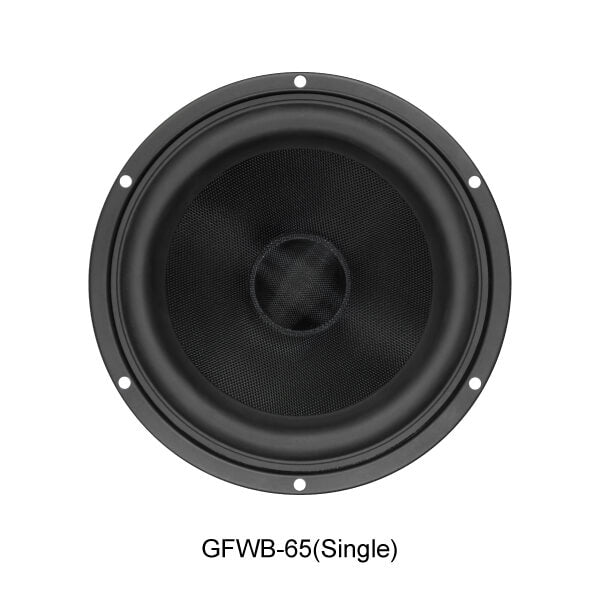

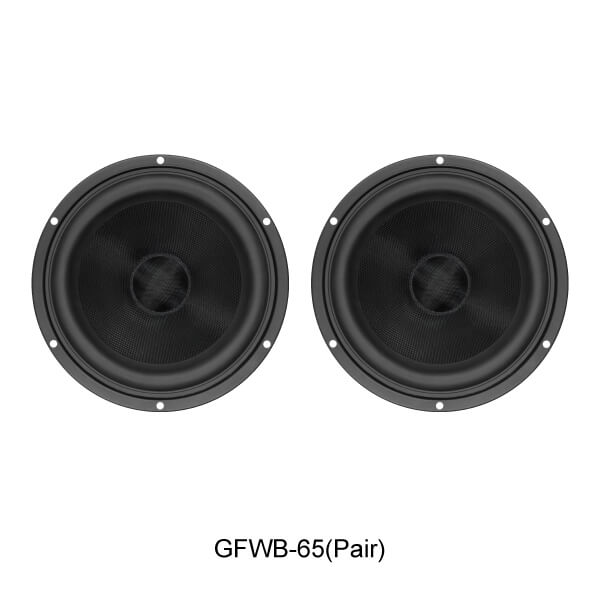

Specification-GFWB-65
Speaker
Rated Power Input
30 W
Maximum Power Input
60 W
Nominal Impedance
4.0±15% Ω
DCR Impedance
3.1±10% Ω
Sensitivity 1W/1M
85.0±3 dB
Frequency Range
39-5K Hz
Free Air Resonance
39±20% Hz
Qms
10.919
Qts
0.405
Qes
0.421
Vas
23.4071 L
Material
Dome material
Glass fiber+ rubber
Magnet Material
Ferrite
Size
Mounting Depth
73 mm
Mounting Diameter
143 mm
Voice Coil Diameter
32mm

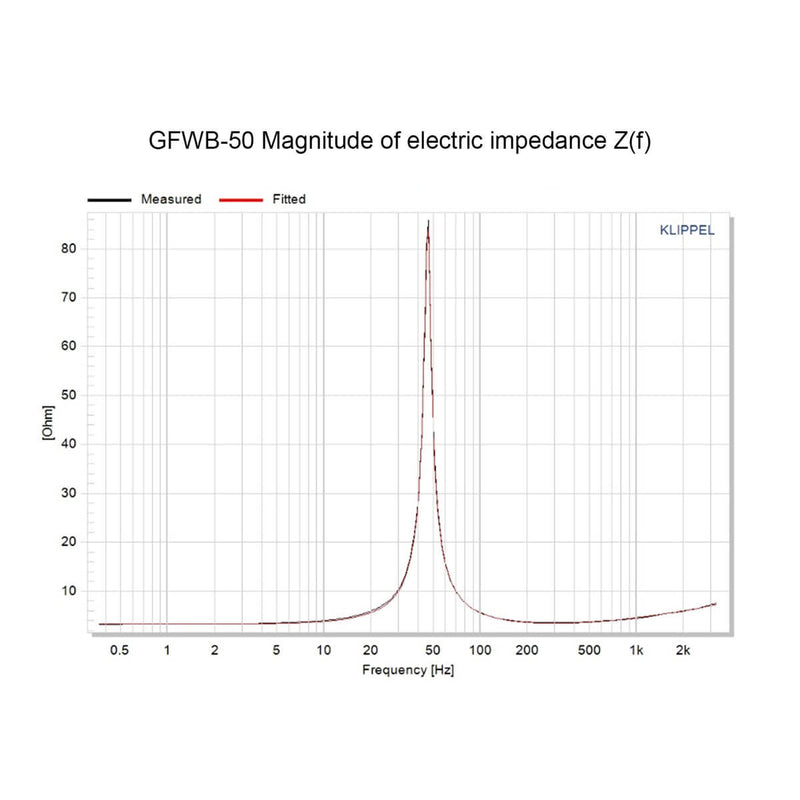

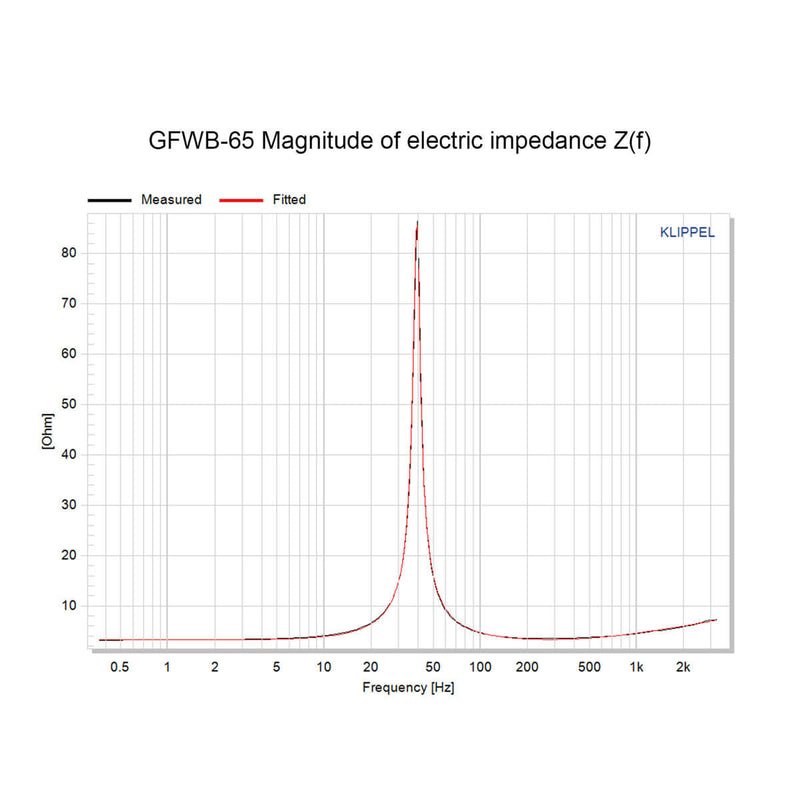

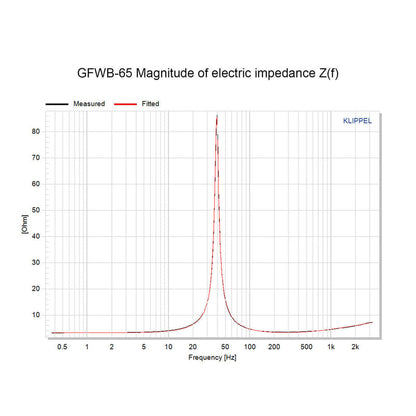

Magnitude of electric impedance Z(f)

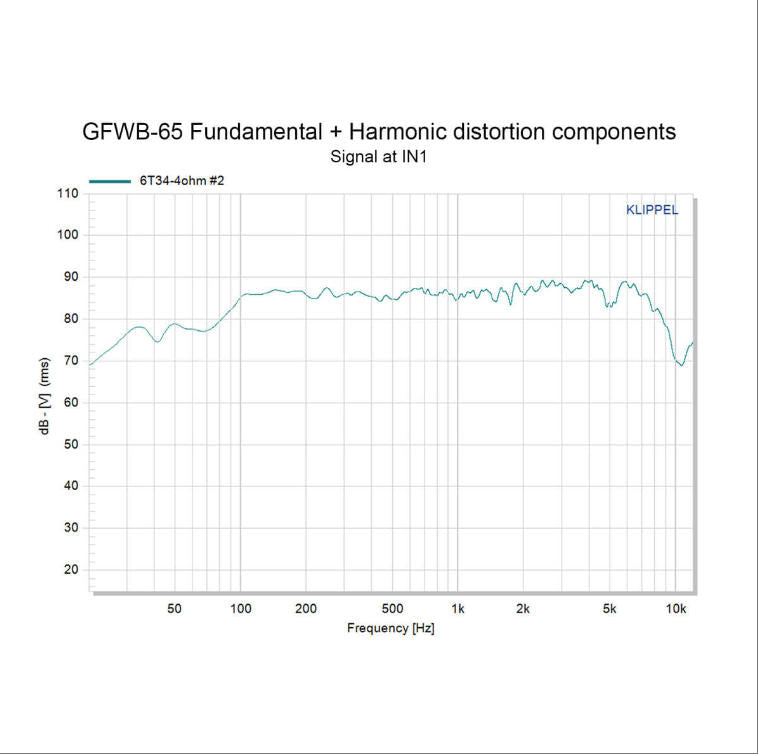

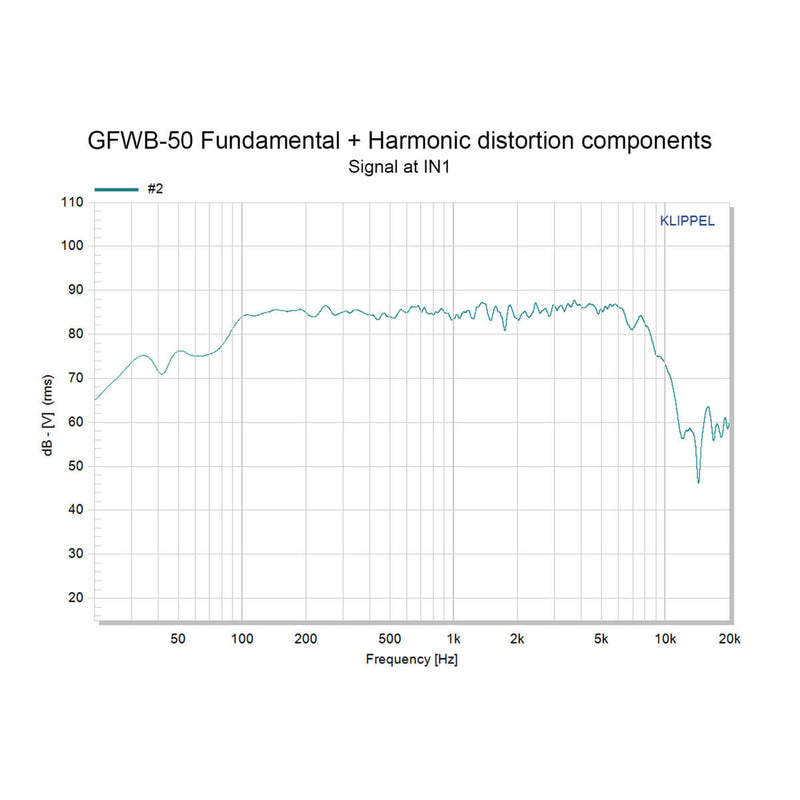

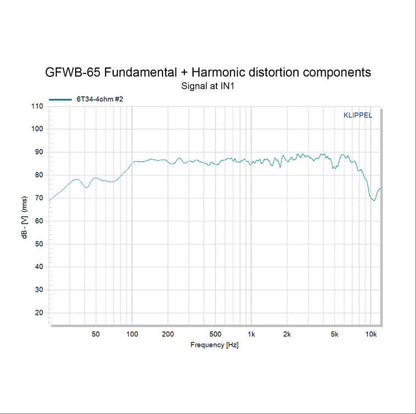

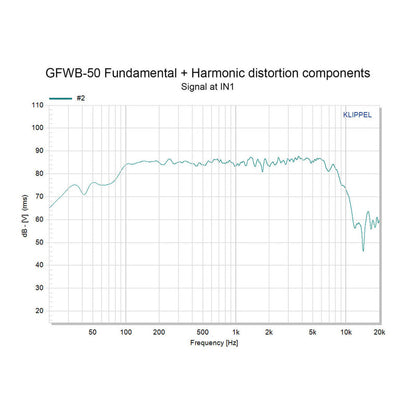

Fundamental + Harmonic distortion components
Build Your Wireless Projects
Related Products
-
Up2Stream Amp - Multiroom Wireless Streaming Stereo Amplifier Board
Regular price From $79.00 USDRegular price$79.00 USDSale price From $79.00 USD -
Up2stream Mini- Multiroom Wi-Fi Streamer Board
Regular price From $39.00 USDRegular price -
Up2stream Pro - Multiroom Wireless Receiver Board
Regular price From $49.00 USDRegular price -

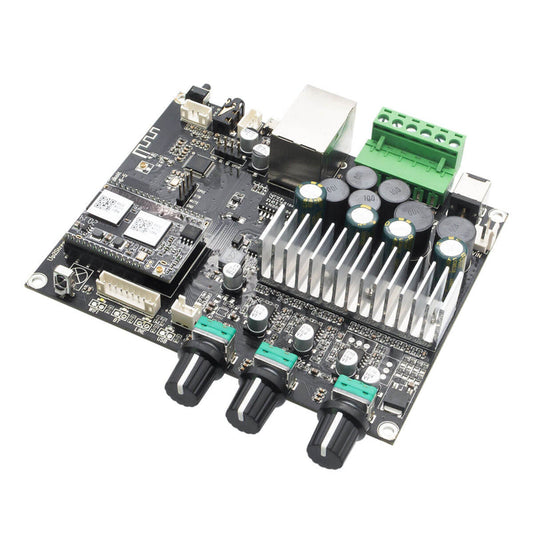

Up2stream Amp 2.1 - Multiroom Wireless 2.1 Amplifier Board
