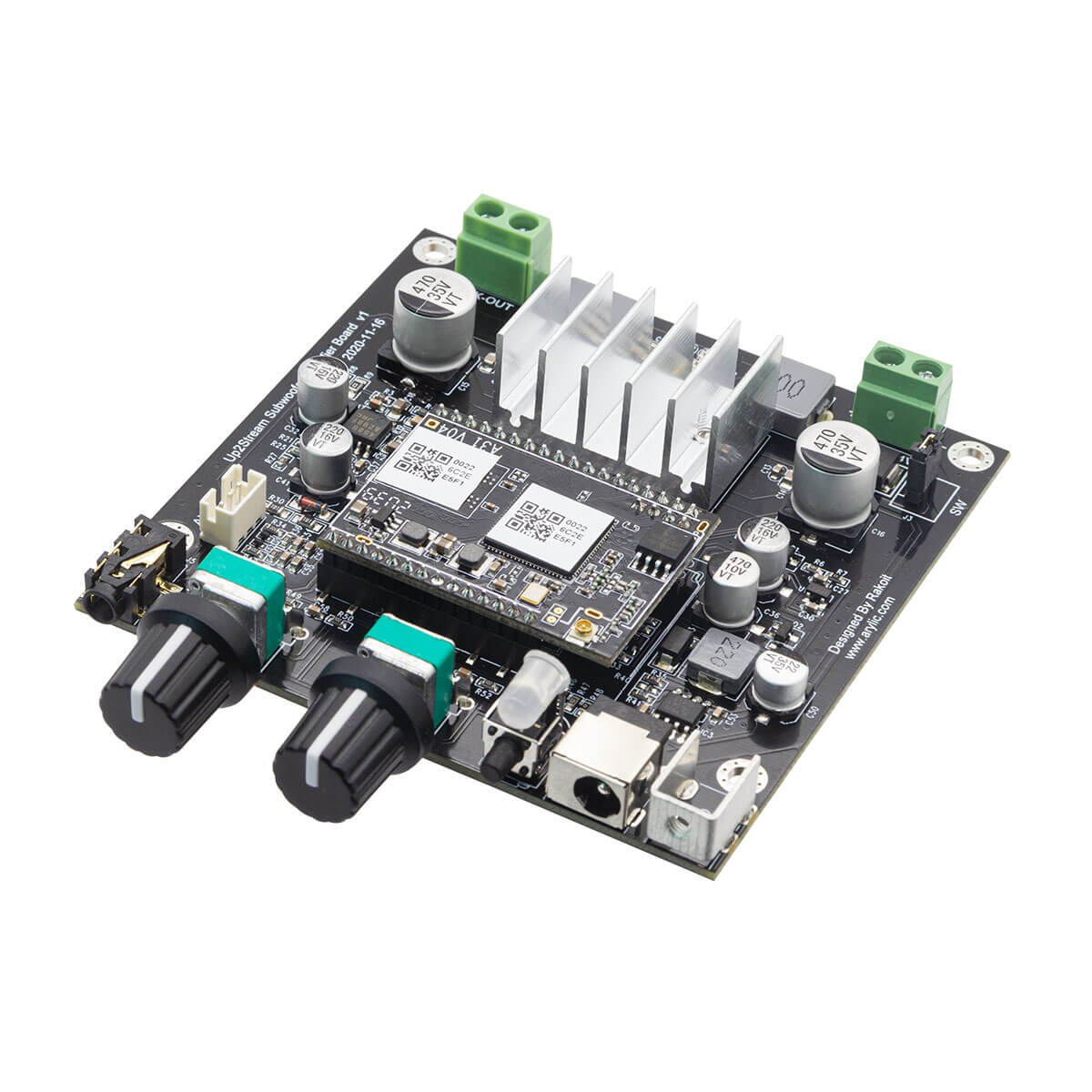

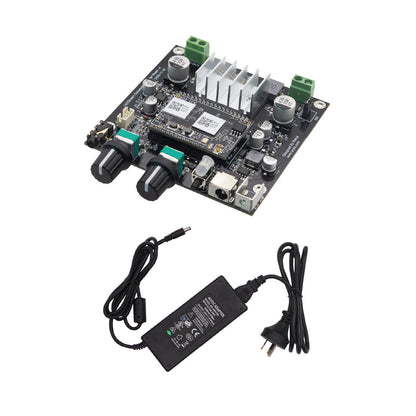

Up2Stream Amp Sub - Multiroom Wireless Subwoofer Amplifier Board

$69.00 USD

Sale Sold out

Shipping calculated at checkout.

Free & Fast Delivery

Free Shipping Over $90
Free Shipping in United States and Europe Union regions.
$8.8 Shipping fee for other regions
3-7 business days to be delivered

For more, please refer to our shipping policy for more details.

30 Days of Free Return

30 Days of Worry Free Guarantee

No Questions Asked: Return undamaged items within 30 days for any reason
Full Refund Promise: 100% money back to original payment method
Fast Processing: Refunds start when we receive your return

For more, please refer to our return policy for more details.

Hassle-Free Warranty

What We Replace: Manufacturing defects within 1 year of delivery
Fast Process: Replacement always, quick to get new one to use.
Global Support: Valid for purchases from official channels

For more, please refer to our warranty policy

🎉Up2Stream is the new home for Arylic’s DIY products — click to explore.

In stock

✉️Any questions? Feel free to contact us

💰Share & Earn: up to 30% cashback. Learn More.

Fast & Free Delivery
30 Days Returns
1 Year Warranty

View full details

A Range Of Options To Suit Your Design

Powerful Amplifier
- 100W subwoofer
- TPA2116 amplifier chip
- Provide a impressive 2.1 home theater experience with powerful deep bass.
Lossless Audio
- Decoding up to 192khz/24bits, and output with CD quality.
- Support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.

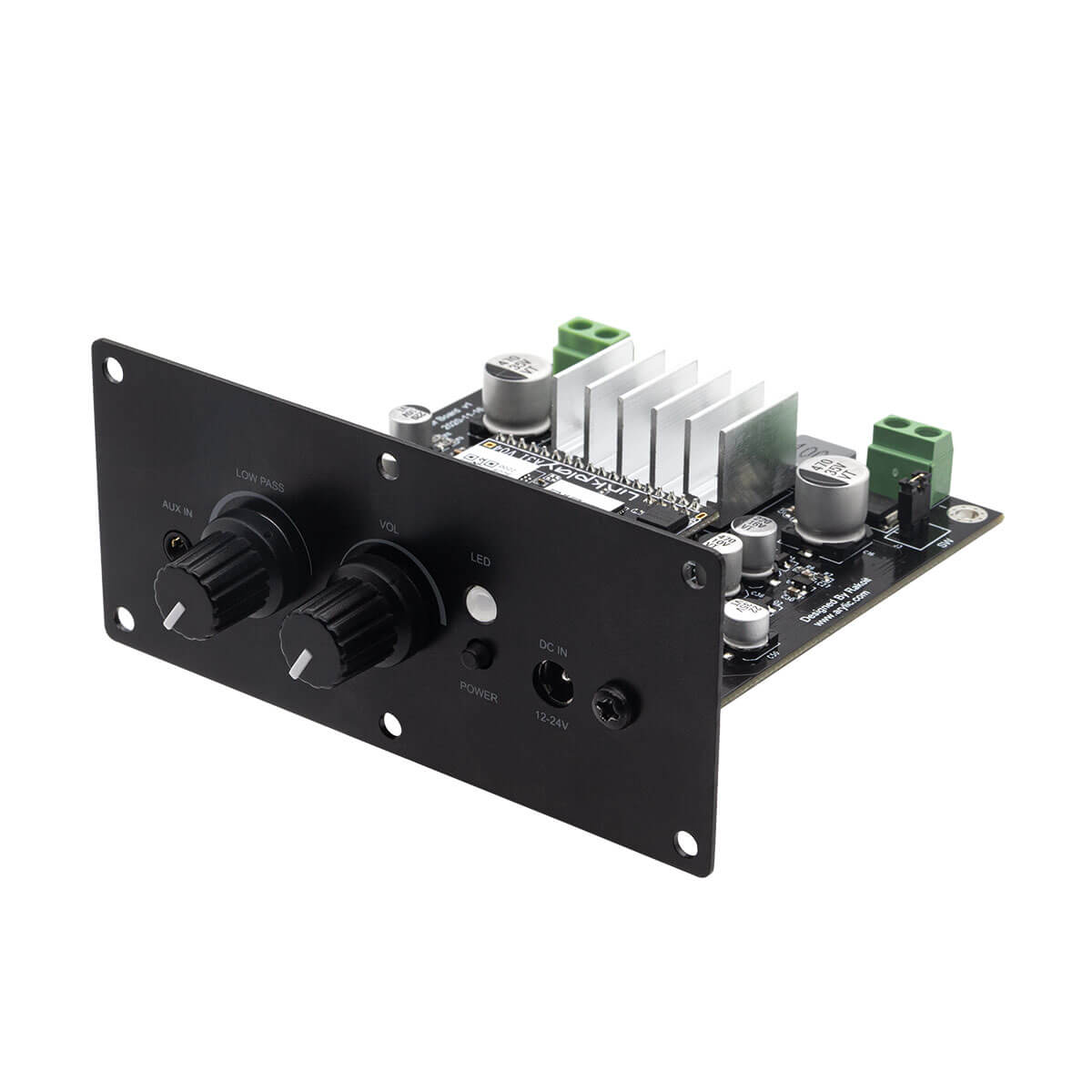

Knob Control
- Volume: +/- volume and switch input source.
- Bass: +/- bass and adjust crossover.
4STREAM APP
- Free iOS & Android APP
- Manage all Up2Stream streaming devices in one APP
- Full multiroom control

Specification

Connectivity

WiFi
IEEE802.11 b/g/n 2.4G

Wired Network
Ethernet Single 10/100M RJ45

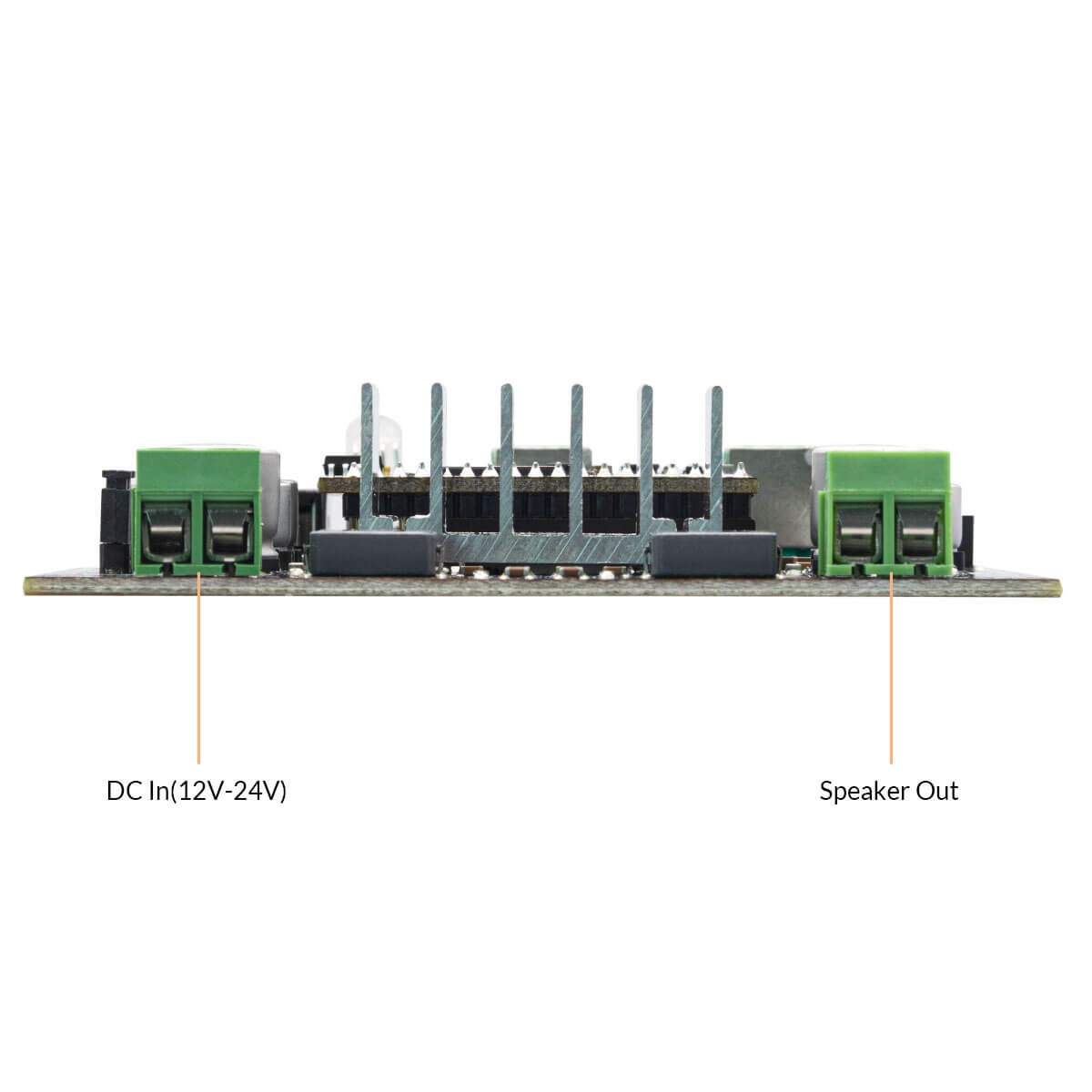

Interface

Power Input
12V-24V/DC in

Analog Input
3.5mm Line Input (1 Vrms)
3 pin connector Line Input (1 Vrms)

Analog Output
Speaker Out

Sound

Audio Format
Decoding up to 192khz/24bit
Output up to 44.1khz/16bit CD quality

Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

THD+N
0.1%@100Hz1W

Speaker and Amplifier

Power
100W @ 2Qlad at 24V
60W @ 4Qload at 24V
30W @ 8Qload at 24V

Speaker Impedance
2-8Ω

Amplifier Chip
TPA3116

General and Accessory

Dimensions
84*84*17.5mm

Weight
300g

Working temperature
0~40℃

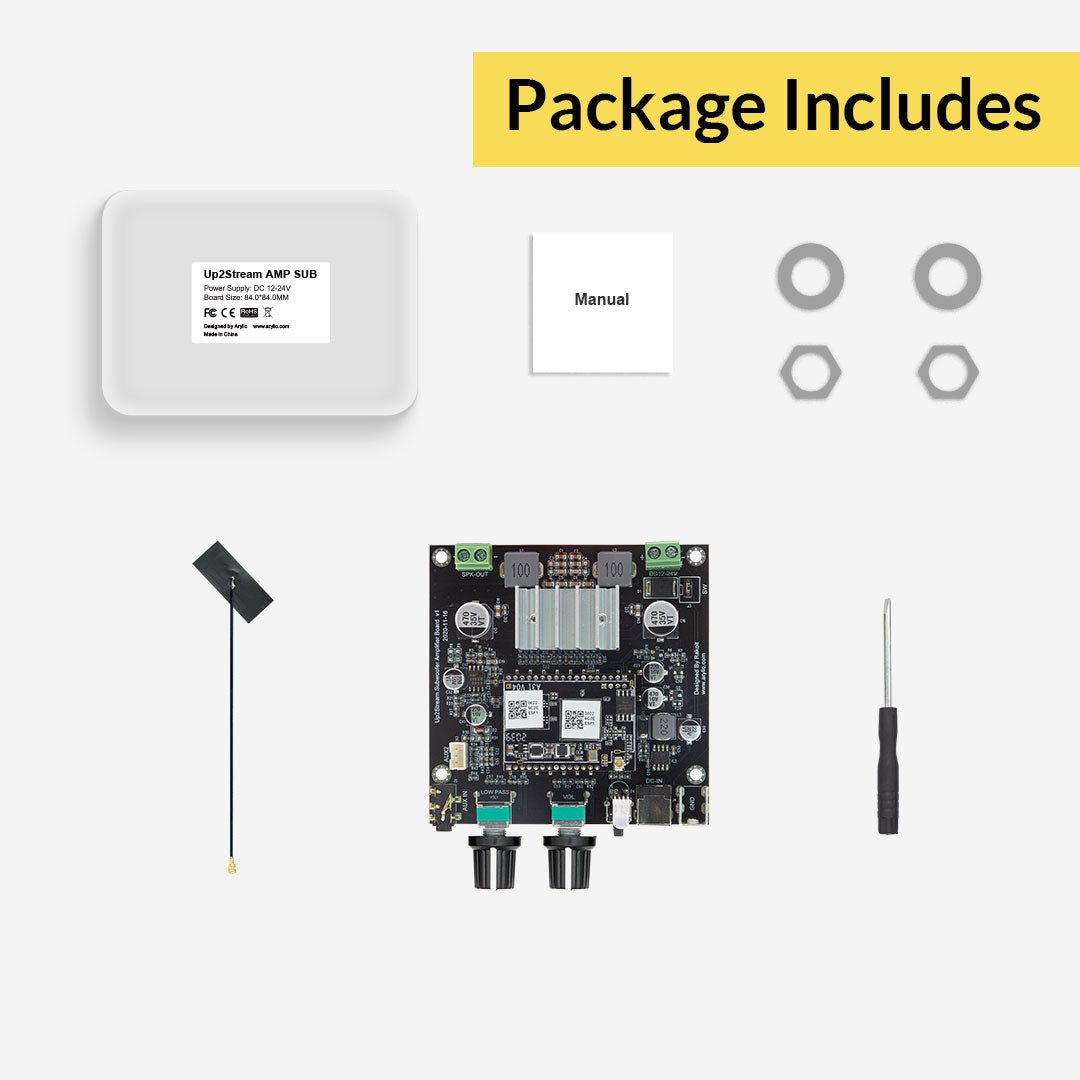

Acessory
Knob Cover x2
Internal WiFi Antenna x1
Screw Driver x1
User Manual x1

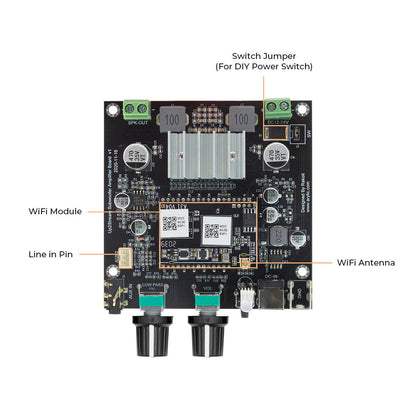

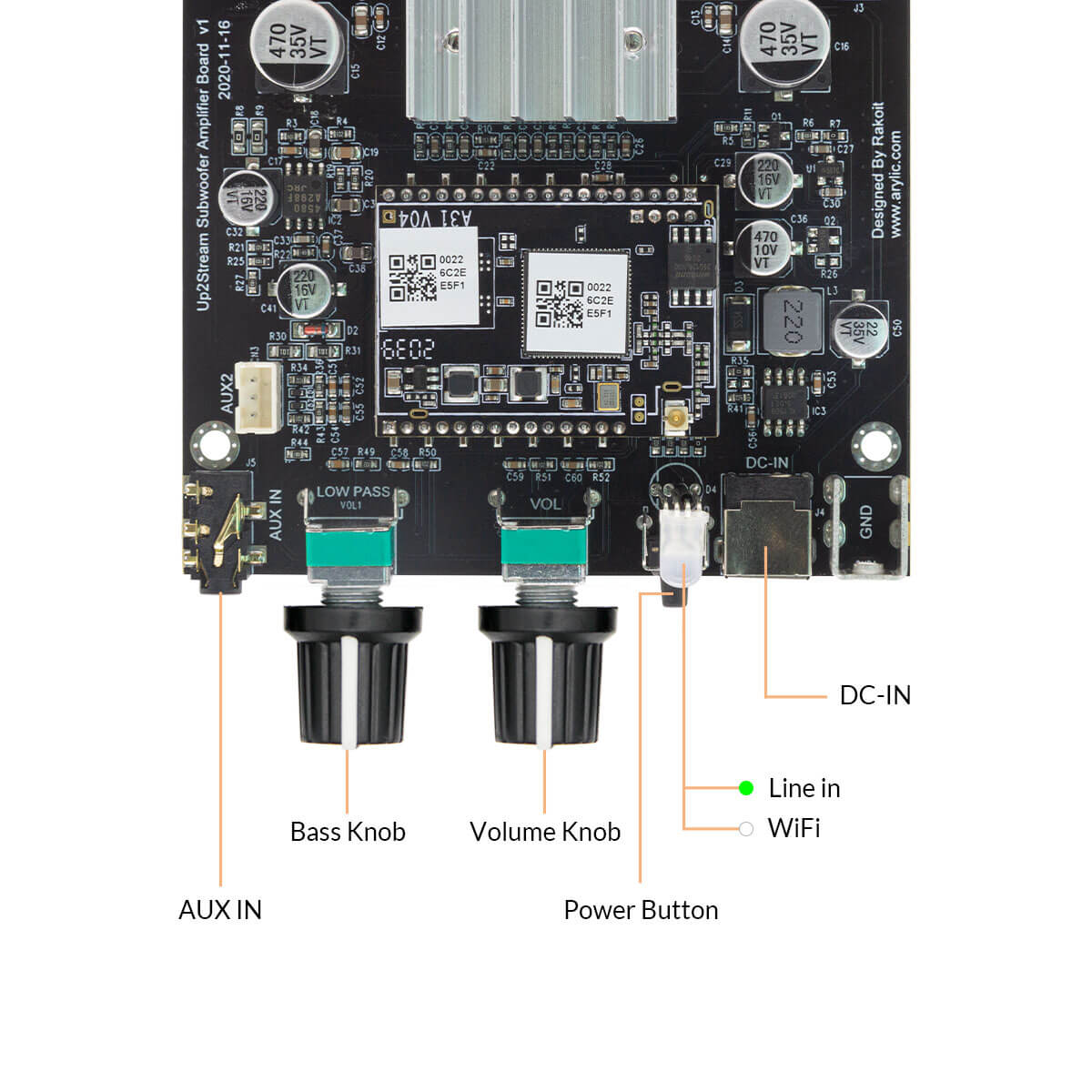

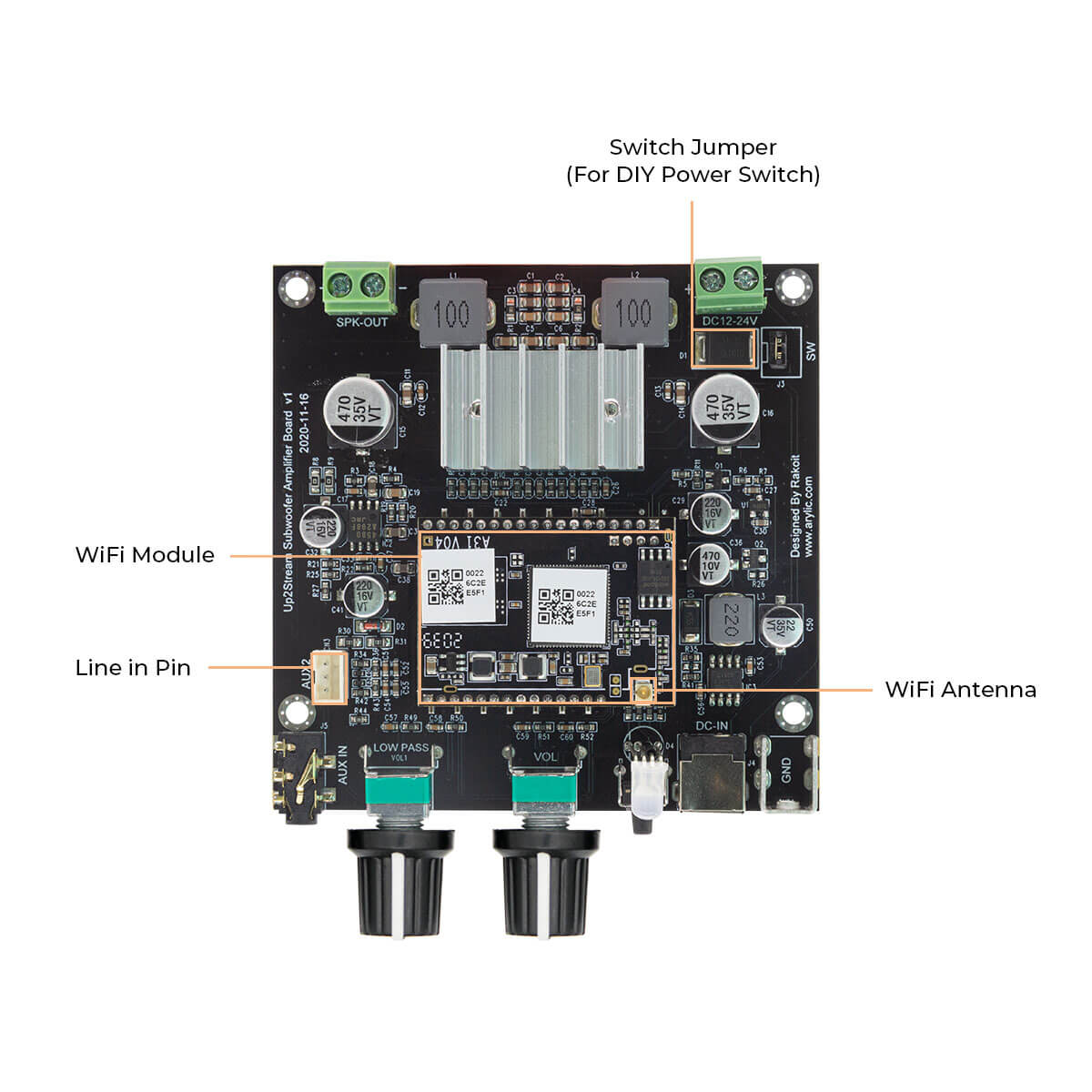

Reset Button and LED Indicators

Device on:
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)；
Short press three times: Restore the factory settings

Device off:
Short press: Switch on

Bass Knob
Short press once: Reset bass level to 0
Long press 5secs: decrease crossover frequency by 10Hz
(Crossover frequency range from 10-300Hz, default 110hz)

LED Indicators
⚪White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
🟢Green-Line in mode

Hands-On Control, Smarter subwoofer

Get Deep Bass Without Wires
Up2Stream Amp Sub allows you to turn your passive subwoofer into a wireless subwoofer. Pair with any other Arylic stereo system and you can pass the deep bass wirelessly.
Powerful, Booming 100W Bass
Hear and feel powerful 100 Watts of booming bass with an adjustable crossover frequency range of 10Hz - 300Hz.
Position your Subwoofer Anywhere
You can place your subwoofer anywhere in your house and wirelessly stream deep bass throughout the house.

FAQ

How can I add Up2stream Amp Sub to other Up2Stream devices?

Your can wireless connect the subwoofer amplifier to other Up2Stream stereo by WiFi. Pair to the same network with 4STREAM APP and group them use multiroom features to build a wireless 2.1 system.
